Toyota LEXUS IS250C — DISC WHEEL & WHEEL CAP

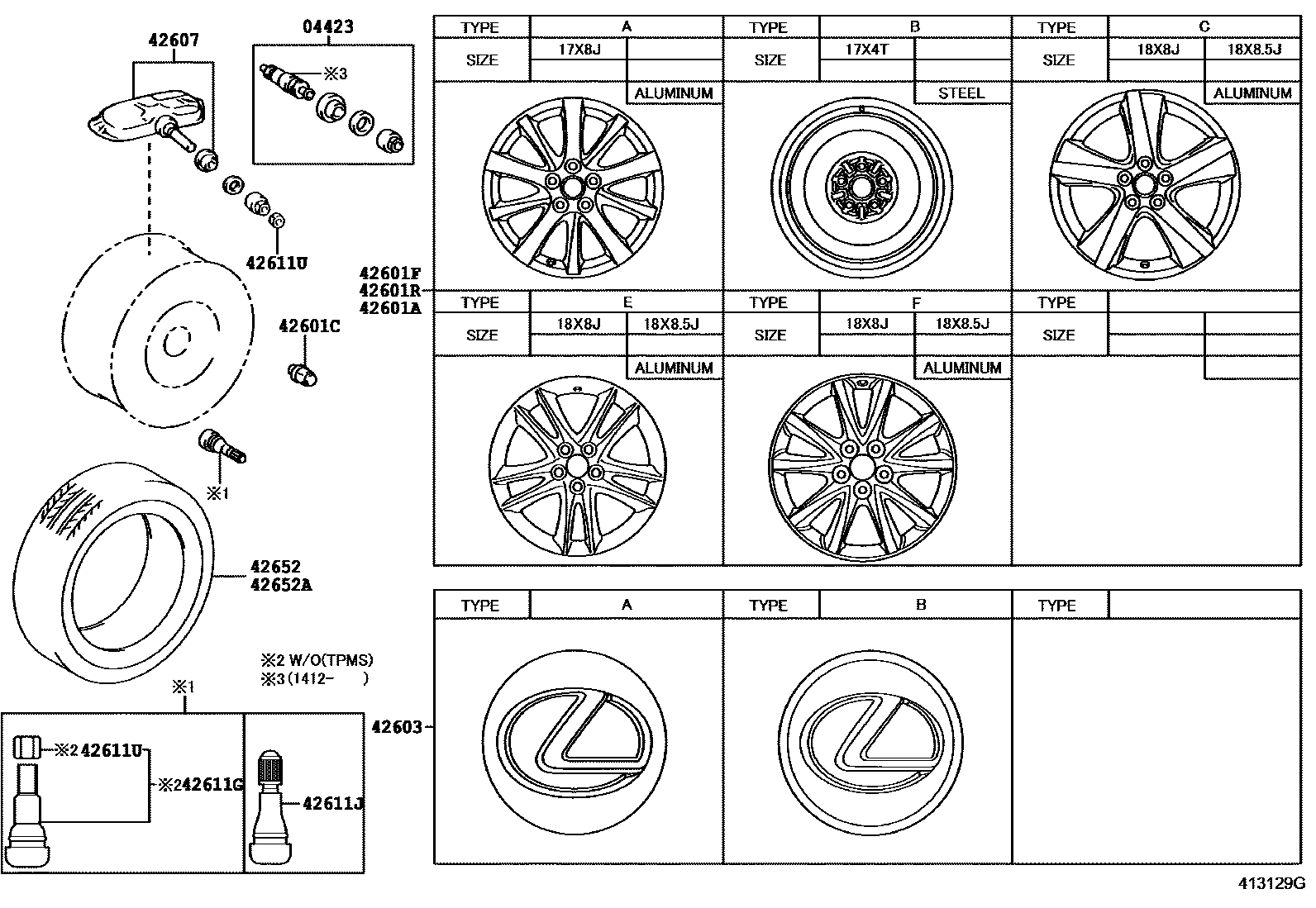

Parts diagram
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
main04423-33030i200904-201411
sub04423-33060
main04423-33060i201412
42601AWHEEL, DISC (FOR SPARE)
main42611-53320i201208-201411
17X4T,TYPE B:REFER ILLUST.
sub42611-53321
42601CNUT, HUB (FOR AXLE)
main90942-01033i200904-201507
42601FWHEEL, DISC (FOR FRONT)
main4261A-53100i200904-201507
17X8J, #,TYPE A:REFER ILLUST.
sub4261A-53101
42601RWHEEL, DISC (FOR REAR)
main4261A-53100i200904-201507
17X8J, #,TYPE A:REFER ILLUST.
sub4261A-53101
42603ORNAMENT SUB-ASSY, WHEEL HUB
main42603-30550i201208
*CHR,TYPE B:REFER ILLUST.
sub42603-30551
main42603-50320i200904-201208
*ALU,TYPE A:REFER ILLUST.
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
main42607-50010i200904-200908
BULGARIA SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18 ALUMINUM&SPARE TIRE-TEMPORARY(T145/70D17)
sub42607-50011
main42607-50010i200904-200908
CROATIA SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18 ALUMINUM&SPARE TIRE-TEMPORARY(T145/70D17)
sub42607-50011
main42607-50010i200904-200908
BENELUX SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18 ALUMINUM&SPARE TIRE-TEMPORARY(T145/70D17)
sub42607-50011
main42607-50010i200904-200908
FRANCE SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18 ALUMINUM&SPARE TIRE-TEMPORARY(T145/70D17)
sub42607-50011
main42607-50010i200904-200908
GERMANY SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18 ALUMINUM&SPARE TIRE-TEMPORARY(T145/70D17)
sub42607-50011
main42607-50010i200904-200908
CYPRUS SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18 ALUMINUM&SPARE TIRE-TEMPORARY(T145/70D17)
sub42607-50011
main42607-50010i200904-200908
NORTHERN EUROPE SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18 ALUMINUM&SPARE TIRE-TEMPORARY(T145/70D17)
sub42607-50011
main42607-50010i200904-200908
ITALY SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18 ALUMINUM&SPARE TIRE-TEMPORARY(T145/70D17)
sub42607-50011
main42607-50010i200904-200908
TIRE & DISC WHEEL-225/40R18+255/40R18 ALUMINUM
sub42607-50011
main42607-50010i200904-200908
TIRE & DISC WHEEL-225/40R18+255/40R18 ALUMINUM&SPARE TIRE-TEMPORARY(T145/70D17)
sub42607-50011
main42607-50011i200909
sub42607-50012
42611GVALVE (FOR TUBELESS TIRE)
42611JVALVE (FOR TUBELESS TIRE SPARE)
main90942-05009i201208-201411
42611UCAP, TIRE VALVE
main90942-05037i200904-201208
main90942-05042i201207
42652TIRE
main4265A-53010
main4265A-53011
main4265A-0F020
main42652-53200
main42652-53210
main42652-53220
main42652-53230
main42652-53240
main42652-53250
main42652-53260
main42652-53270
main42652-53321
main42652-53331
main42652-53341
main42652-53351
main42652-53421
main42652-53441
main42652-53561
main42652-53571
main42652-53591
main42652-53601
42652ATIRE (FOR SPARE)

12 parts on this diagram · 1 diagram in section
