Toyota LEXUS IS250C — CRANKSHAFT & PISTON

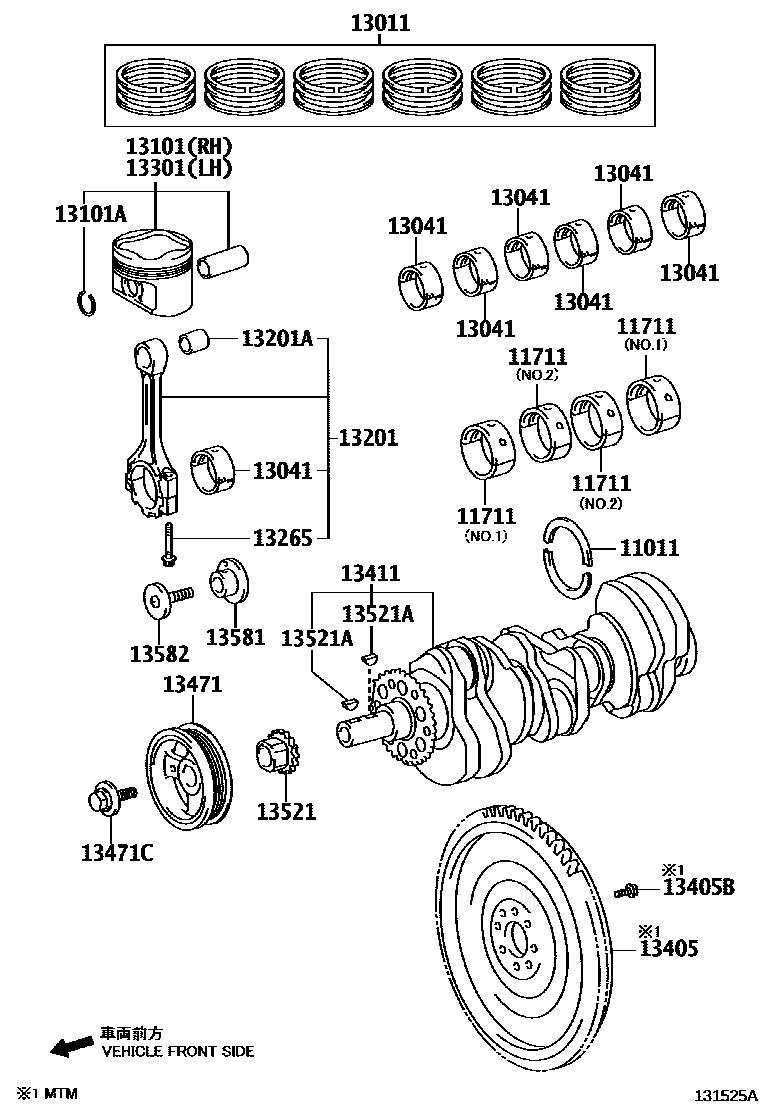

Parts diagram
11011WASHER SET, CRANKSHAFT THRUST
main11011-31060i200904-201411
STD
sub11011-31080
main11011-31080i201412-201507
STD
11711BEARING, CRANKSHAFT
main11071-31031-01i200904-201502
MARK1,NO.2,REFER R/M
sub11071-31060
main11071-31031-02i200904-201502
MARK2,NO.2,REFER R/M
sub11071-31060
main11071-31031-03i200904-201502
MARK3,NO.2,REFER R/M
sub11071-31060
main11071-31031-04i200904-201502
MARK4,NO.2,REFER R/M
sub11071-31060
main11071-31031-05i200904-201502
MARK5,NO.2,REFER R/M
sub11071-31060
main11071-31060-01i201503-201507
MARK 1,NO.2,REFER R/M
sub11071-31060
main11071-31060-02i201503-201507
MARK 2,NO.2,REFER R/M
sub11071-31060
main11071-31060-03i201503-201507
MARK 3,NO.2,REFER R/M
sub11071-31060
main11071-31060-04i201503-201507
MARK 4,NO.2,REFER R/M
sub11071-31060
main11071-31060-05i201503-201507
MARK 5,NO.2,REFER R/M
sub11071-31060
main11701-31061-01i200904-201502
MARK1,NO.1,REFER R/M
sub11701-31100
main11701-31061-02i200904-201502
MARK2,NO.1,REFER R/M
sub11701-31100
main11701-31061-03i200904-201502
MARK3,NO.1,REFER R/M
sub11701-31100
main11701-31061-04i200904-201502
MARK4,NO.1,REFER R/M
sub11701-31100
main11701-31061-05i200904-201502
MARK5,NO.1,REFER R/M
sub11701-31100
main11701-31100-01i201503-201507
MARK 1,NO.1,REFER R/M
sub11701-31100
main11701-31100-02i201503-201507
MARK 2,NO.1,REFER R/M
sub11701-31100
main11701-31100-03i201503-201507
MARK 3,NO.1,REFER R/M
sub11701-31100
main11701-31100-04i201503-201507
MARK 4,NO.1,REFER R/M
sub11701-31100
main11701-31100-05i201503-201507
MARK 5,NO.1,REFER R/M
sub11701-31100
13011RING SET, PISTON
main13011-31120i200904-200909
STD
sub13011-31121
main13011-31121i200909-201206
STD
sub13011-31122
main13011-31122i201206-201209
STD
sub13011-31220
main13011-31220i201209-201411
STD
main13011-31260i201411
STD
13041BEARING, CONNECTING ROD
main13041-31060-01i200904-201507
MARK1
main13041-31060-02i200904-201507
MARK2
main13041-31060-03i200904-201507
MARK3
main13041-31060-04i200904-201507
MARK4
13101PISTON SUB-ASSY, W/PIN
main13101-31050-A0i200904
STD,MARK A,REFER REPAIR MANUAL
sub13101-31050
main13101-31050-B0i200904
STD,MARK B,REFER REPAIR MANUAL
sub13101-31050
main13101-31050-C0i200904
STD,MARK C,REFER REPAIR MANUAL
sub13101-31050
13101ARING, HOLE SNAP(FOR PISTON PIN)
main90520-22025i200904
13201ROD SUB-ASSY, CONNECTING
main13201-39095i200904-201005
REFER REPAIR MANUAL
main13201-39095-A0i201005-201507
MARK A,REFER REPAIR MANUAL
sub13201-39095
main13201-39095-B0i201005-201507
MARK B,REFER REPAIR MANUAL
sub13201-39095
main13201-39095-C0i201005-201507
MARK C,REFER REPAIR MANUAL
sub13201-39095
13201ABUSH(FOR CONNECTING ROD SMALL END)
main90999-73144i200904
13265BOLT, CONNECTING ROD
main13265-28010i200904
sub13265-28020
13301PISTON SUB-ASSY, W/PIN, LH
main13301-31020-A0i200904
STD,MARK A,REFER REPAIR MANUAL
sub13301-31020
main13301-31020-B0i200904
STD,MARK B,REFER REPAIR MANUAL
sub13301-31020
main13301-31020-C0i200904
STD,MARK C,REFER REPAIR MANUAL
sub13301-31020
13405FLYWHEEL SUB-ASSY
main13450-0W051i200904-201008
13405BBOLT, FLYWHEEL SETTING
main90105-10549i200904-201008
13411CRANKSHAFT
main13401-31030i200904-201407
sub13401-31031
main13401-31031i201407
13471PULLEY, CRANKSHAFT
main13470-31021i200904-201312
sub13470-31022
main13470-31022i201312
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
main90119-16004i200904
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
main13521-31041i200904
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
main95161-30516i200904
13581SHAFT, IDLE GEAR, NO.1
main13581-31030i200904
13582SHAFT, IDLE GEAR, NO.2
main13582-31031i200904
