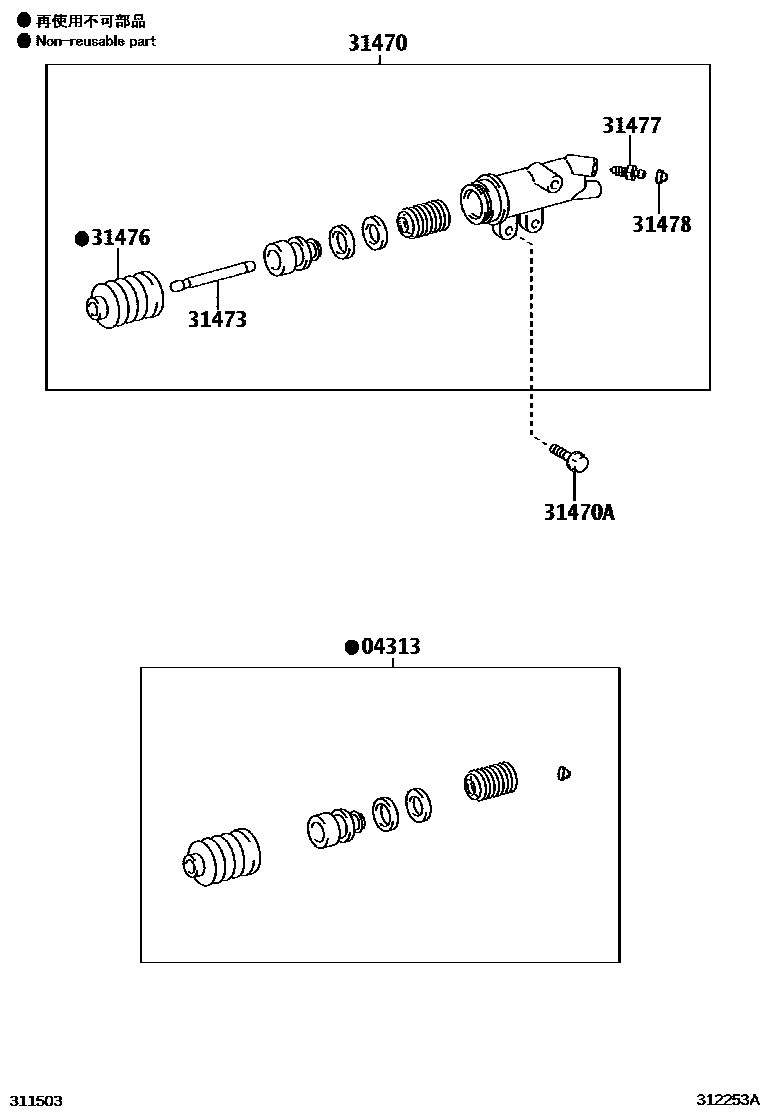

Toyota LEXUS IS250C — CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-53040iGSE20..6F200904-201008

sub04313-53041

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-60340iGSE20..6F200904-201008

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-B0825iGSE20..6F200904-201008

*8-1.25PX25-25

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-14030iGSE20..6F200904-201008

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iGSE20..6F200904-201008

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iGSE20..6F200904-201008

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iGSE20..6F200904-201008

7 parts on this diagram · 1 diagram in section
