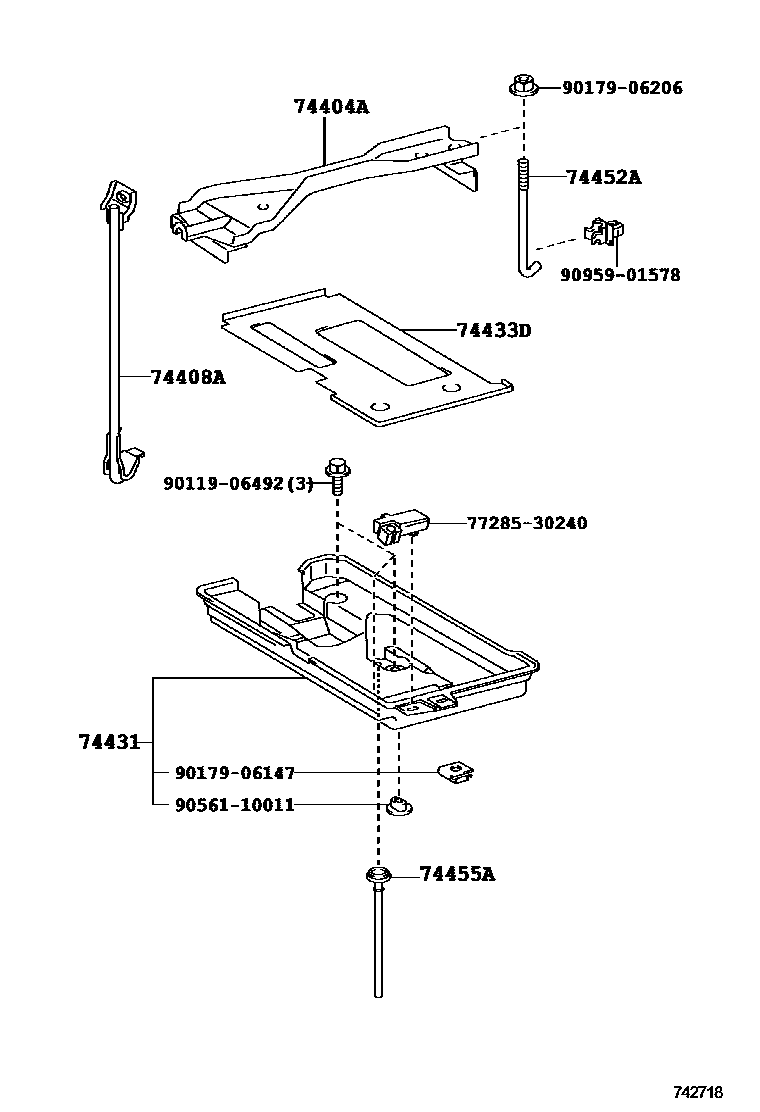

Toyota LEXUS IS250C — BATTERY CARRIER

0001 1 0002 1

74404ACLAMP SUB-ASSY, BATTERY

main74404-22370iGSE20200904-201507

74408ABOLT SUB-ASSY, BATTERY CLAMP, NO.2

main74408-22030iGSE20200904-201102

sub74408-22031

main74408-22031iGSE20201103

74431TRAY, BATTERY

main74431-53030iGSE20..RHD200904-201411

main74431-53050iGSE20..LHD200904

74433DSUPPORT, BATTERY TRAY,NO.1

main74433-53010iGSE20..RHD200904-200908

sub74433-53011

main74433-53011iGSE20..RHD200909-201411

main74433-53030iGSE20..LHD200904-200908

sub74433-53031

main74433-53031iGSE20..LHD200909

74452ABOLT, BATTERY CLAMP, NO.2

main74452-53020iGSE20200904

74455AHOSE, BATTERY DRAIN

main74455-30020iGSE20200904

7728530240BRACKET, FUEL TUBE

main77285-30240

9011906492

main90119-06492

9017906147

main90179-06147

9017906206

main90179-06206

9056110011

main90561-10011

9095901578

main90959-01578

12 parts on this diagram · 2 diagrams in section
