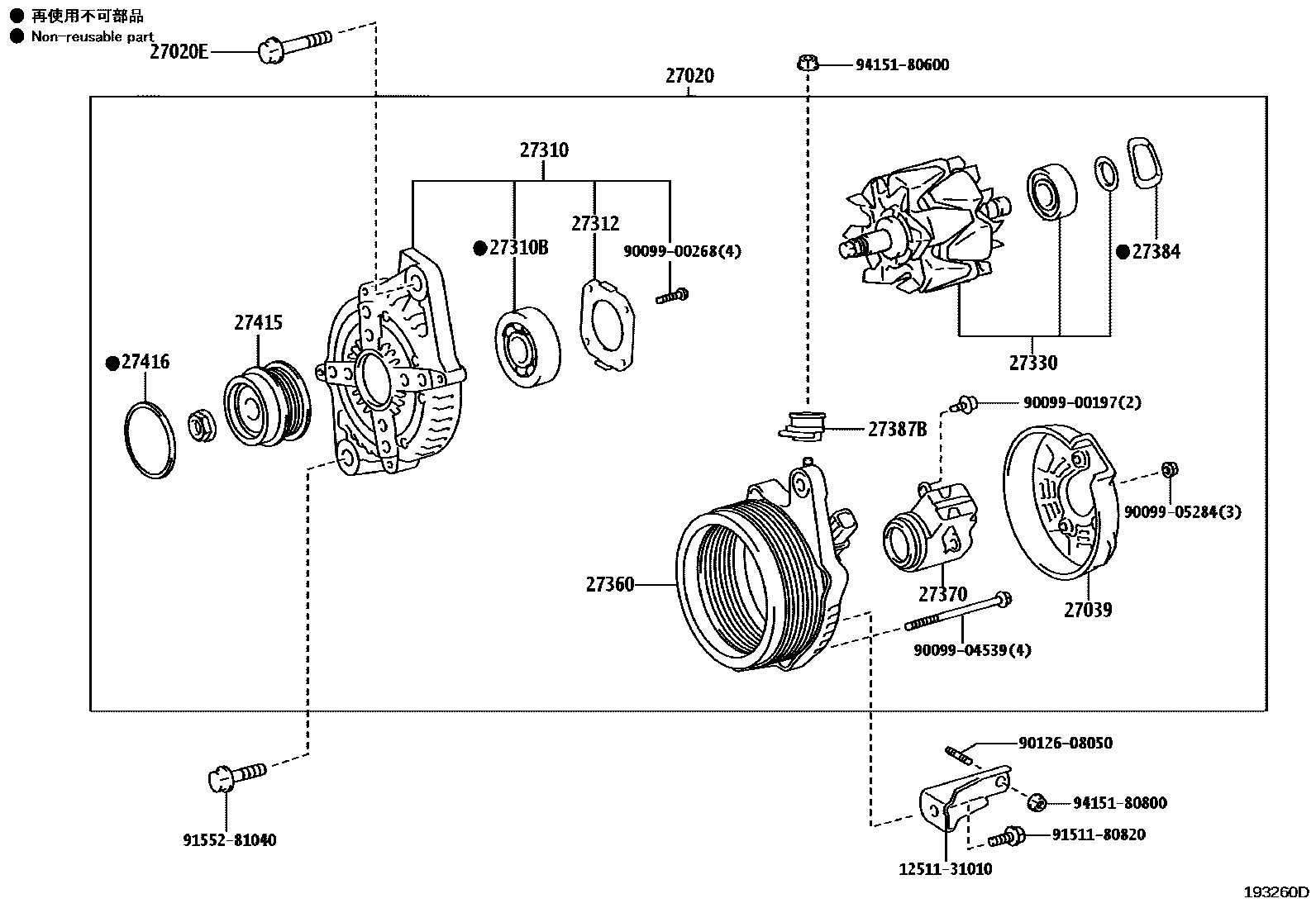

Toyota LEXUS IS250C — ALTERNATOR

27020ALTERNATOR ASSY

main27060-31201i4GRFSE..GSE20200904

12V 150A

27020EBOLT(FOR ALTERNATOR)

main91552-81070i4GRFSE..GSE20200904

27039COVER, ALTERNATOR REAR END

main27039-26170i4GRFSE..GSE20200904-200906

main27039-31390i4GRFSE..GSE20200906

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-31220i4GRFSE..GSE20200904

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10223i4GRFSE..GSE20200904

27312PLATE, RETAINER

main27312-72100i4GRFSE..GSE20200904

27330ROTOR ASSY, ALTERNATOR

main27330-58460i4GRFSE..GSE20200904

27360COIL ASSY, ALTERNATOR

main27360-31410i4GRFSE..GSE20200904

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-31220i4GRFSE..GSE20200904

27384WASHER

main27384-50030i4GRFSE..GSE20200904

27387BINSULATOR, ALTERNATOR TERMINAL

main27387-20130i4GRFSE..GSE20200904

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-0W130i4GRFSE..GSE20200904-201306

sub27415-0W131

main27415-0W131i4GRFSE..GSE20201307-201507

27416CAP, ALTERNATOR PULLEY

main27416-0W050i4GRFSE..GSE20200904-201507

1251131010BRACKET, ALTERNATOR, NO.1

main12511-31010

9009900197

main90099-00197

9009900268

main90099-00268

9009904539

main90099-04539

9009905284

main90099-05284

9012608050

main90126-08050

9151180820

main91511-80820

9155281040

main91552-81040

9415180600

main94151-80600

9415180800

main94151-80800

23 parts on this diagram · 1 diagram in section
