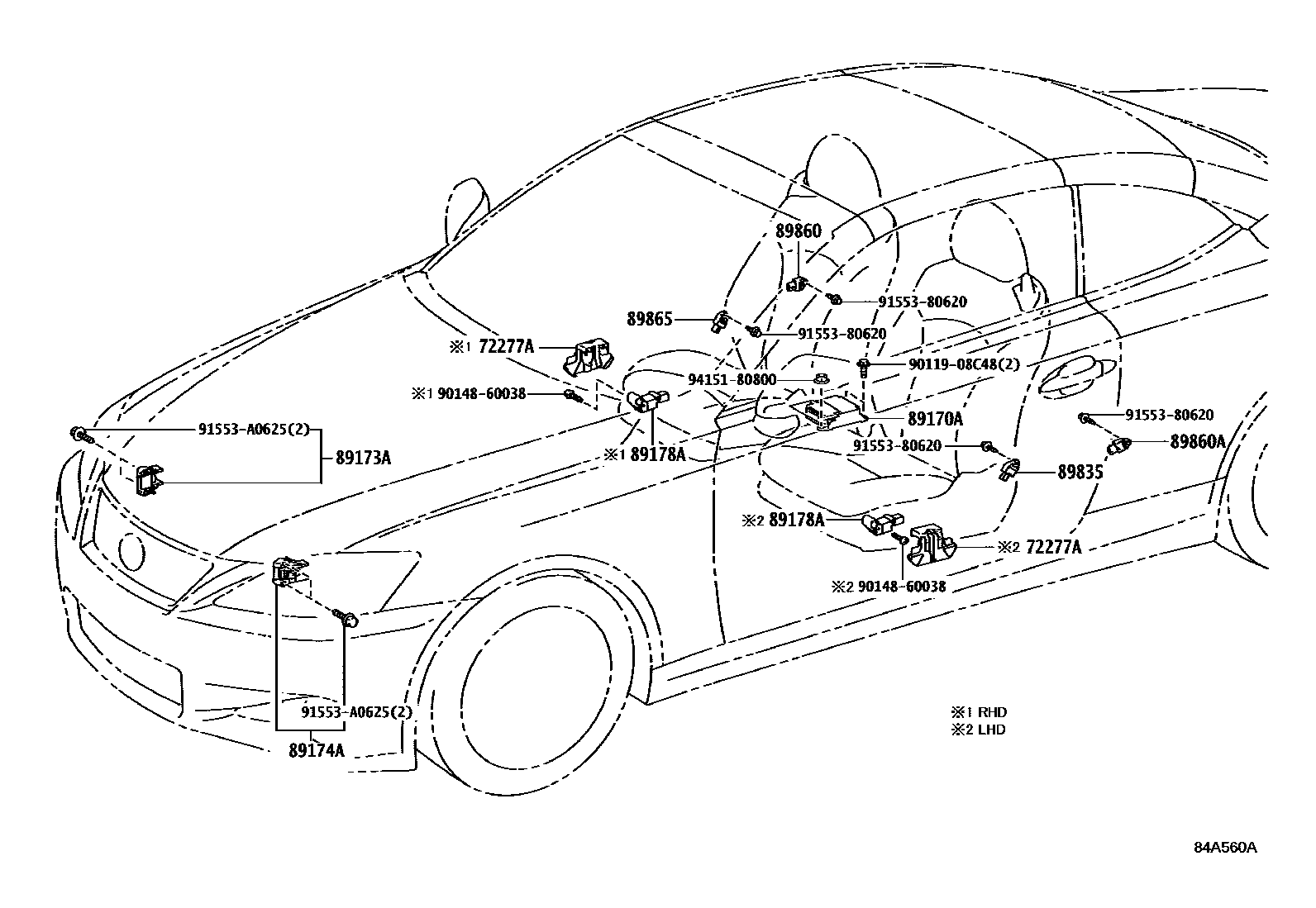

Toyota LEXUS IS250C — AIR BAG

72277APROTECTOR, SEAT SLIDE POSITION SENSOR

main72277-33021iGSE20200904-201507

89170ACOMPUTER ASSY, AIRBAG

main89170-53230iGSE20..LHD200904-201208

main89170-53240iGSE20..RHD200904-201208

main89170-53520iGSE20..LHD201208

main89170-53530iGSE20..RHD201208-201411

89173ASENSOR, AIRBAG, FRONT RH

main89173-39375iGSE20200904-201208

main89173-39455iGSE20201208

89174ASENSOR, AIRBAG, FRONT LH

main89173-39375iGSE20200904-201208

main89173-39455iGSE20201208

89178ASENSOR, SEAT POSITION AIRBAG

main89178-33050iGSE20200904-201507

89835SENSOR, DOOR SIDE AIRBAG, LH

main89831-60010iGSE20200904-201208

main89831-60040iGSE20201208

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-28020iGSE20200904-201208

main89831-75010iGSE20201208

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-28020iGSE20200904-201208

main89831-75010iGSE20201208

89865SENSOR, DOOR SIDE AIRBAG, RH

main89831-60010iGSE20200904-201208

main89831-60040iGSE20201208

9011908C48

main90119-08C48

9014860038

main90148-60038

9155380620

main91553-80620

91553A0625

main91553-A0625

9415180800

main94151-80800

14 parts on this diagram · 1 diagram in section
