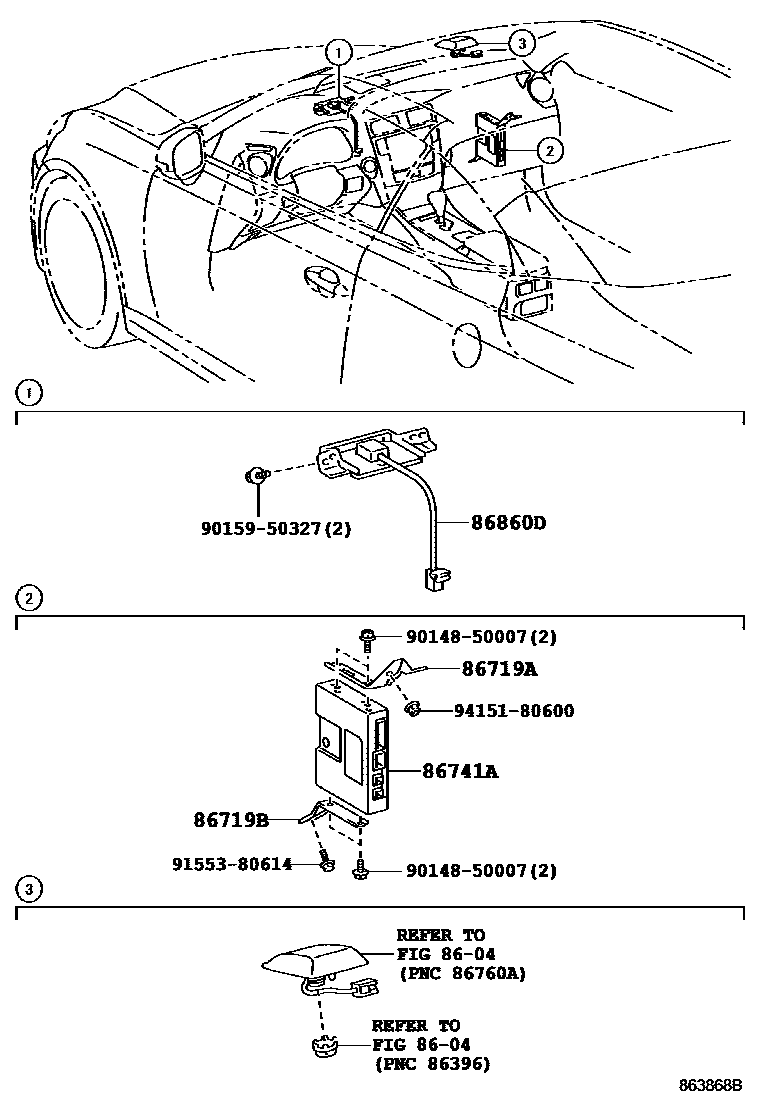

Toyota LEXUS IS250C/350C — TELEPHONE & MAYDAY

8604ANTENNA

→ Go to FIG 86-04

86719ABRACKET, TELEPHONE NO.1

main86719-53020i200904-201208

AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&MAYDAY SYSTEM-USA; AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&MAYDAY SYSTEM-USA

86719BBRACKET, TELEPHONE NO.2

main86719-53030i201208

AUDIO-AM/FM DVD 12SPEAKER&MAYDAY SYSTEM-USA; AUDIO-AM/FM DVD 8SPEAKER&MAYDAY SYSTEM-USA; F SPORT&AUDIO-AM/FM DVD 12SPEAKER&MAYDAY SYSTEM-USA; F SPORT&AUDIO-AM/FM DVD 8SPEAKER&MAYDAY SYSTEM-USA; F SPORT&MAYDAY SYSTEM-USA

86741ATRANSCEIVER, TELEMATICS

main86741-33040i201208

MAYDAY SYSTEM-USA

main86741-33050i201208

AUDIO-AM/FM DVD 12SPEAKER&MAYDAY SYSTEM-USA; AUDIO-AM/FM DVD 8SPEAKER&MAYDAY SYSTEM-USA

main86741-53020i200904-200910

AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&MAYDAY SYSTEM-USA; AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&MAYDAY SYSTEM-USA

main86741-53021i200911-201011

AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&MAYDAY SYSTEM-USA; AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&MAYDAY SYSTEM-USA

main86741-53022i201012-201208

AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&MAYDAY SYSTEM-USA; AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&MAYDAY SYSTEM-USA

main86741-53030i200904-200910

MAYDAY SYSTEM-USA

main86741-53031i200911-201011

MAYDAY SYSTEM-USA

main86741-53032i201012-201208

MAYDAY SYSTEM-USA

86860DANTENNA, NAVIGATION

main86860-53060i200904-201208

AUDIO-AM/FM CD-CHANGER 8SUPERKAER NAVI&MAYDAY SYSTEM-USA; AUDIO-AM/FM DVD-CHANGER 12SPEAKER NAVI&MAYDAY SYSTEM-USA

9014850007

main90148-50007

9015950327

main90159-50327

9155380614

main91553-80614

9415180600

main94151-80600

9 parts on this diagram · 1 diagram in section

TELEPHONE & MAYDAY for Toyota LEXUS IS250C/350C

This section contains 9 genuine Toyota parts for the TELEPHONE & MAYDAY system of the Toyota LEXUS IS250C/350C. Key components include: ANTENNA, BRACKET, TELEPHONE NO.1, BRACKET, TELEPHONE NO.2, TRANSCEIVER, TELEMATICS, ANTENNA, NAVIGATION.
