Toyota LEXUS IS250/350 — PARTIAL ENGINE ASSEMBLY

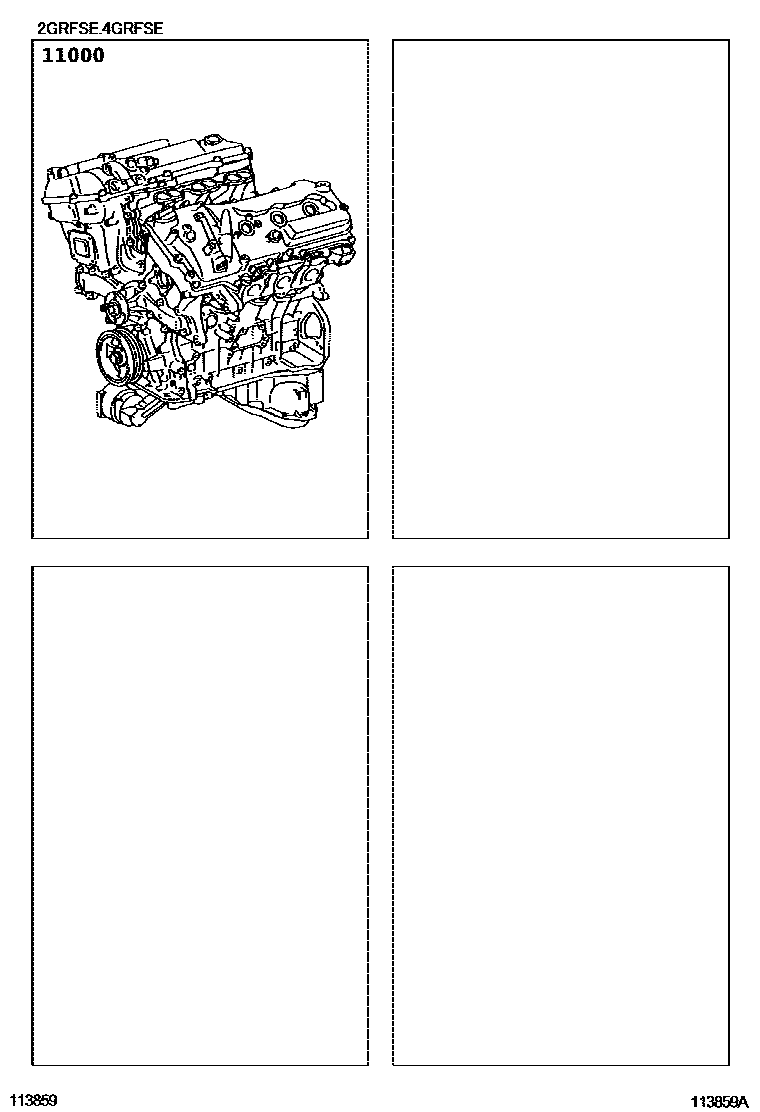

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-31B00i200704-200802

main19000-31B01i200808-201008

main19000-31B30i200508-200802

main19000-31B31i200808-201008

main19000-31B40i200508-200802

main19000-31B41i201008-201110

main19000-31B42i201110-201304

main19000-31F01i201008-201110

main19000-31F02i201110-201304

main19000-31F50i200701-200704

main19000-31F51i200808-201008

main19000-31M10i201008-201208

main19000-31M20i201008-201304

main19000-31M30i201008-201304

1 parts on this diagram · 1 diagram in section

PARTIAL ENGINE ASSEMBLY for Toyota LEXUS IS250/350

This section contains 1 genuine Toyota parts for the PARTIAL ENGINE ASSEMBLY system of the Toyota LEXUS IS250/350. Key components include: ENGINE ASSY, PARTIAL.
