Toyota LEXUS IS250/350/2##D — METER

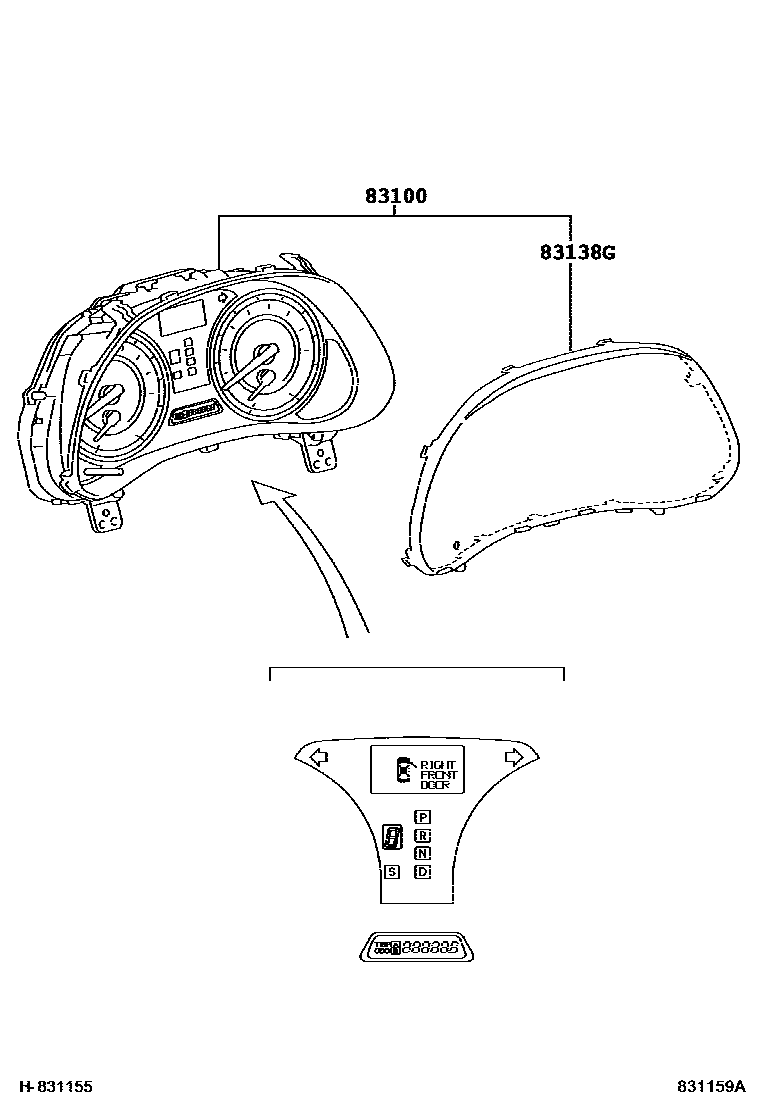

Parts diagram
83100METER ASSY, COMBINATION
main83800-53620i200508-200606
main83800-53621i200607-200707
main83800-53622i200708-200808
main83800-53630i200509-200606
main83800-53631i200607-200707
main83800-53632i200708-200808
main83800-53640i200511-200606
main83800-53641i200607-200707
main83800-53642i200708-200808
main83800-53650i200508-200606
main83800-53651i200607-200707
main83800-53652i200708-200808
main83800-53660i200509-200606
main83800-53661i200607-200707
main83800-53662i200708-200808
main83800-53670i200511-200606
main83800-53671i200607-200707
main83800-53672i200708-200808
main83800-53A00i200808-201008
main83800-53A01i201008-201108
main83800-53A02i201108-201111
main83800-53A03i201112-201208
main83800-53A04i201208
main83800-53A10i200808-201008
main83800-53A20i200808-201008
main83800-53A21i201008-201108
main83800-53A22i201108-201111
main83800-53A23i201112-201208
main83800-53A30i200808-201008
main83800-53A31i201008-201108
main83800-53A32i201108-201111
main83800-53A33i201112-201208
main83800-53A34i201208
main83800-53A40i200808-201008
main83800-53A50i200808-201008
main83800-53A51i201008-201108
main83800-53A52i201108-201111
main83800-53A53i201112-201208
main83800-53A91i201008-201108
HONG KONG SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI
main83800-53A91i201008-201108
HONG KONG SPEC&TIRE & DISC WHEEL-225/45R17+245/45R17,GEN,ART WORKS&HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
main83800-53A91i201008-201108
SINGAPORE SPEC&TIRE & DISC WHEEL-225/45R17+245/45R17,GEN
main83800-53A91i201008-201108
THAILAND SPEC&TIRE & DISC WHEEL-225/45R17+245/45R17,GEN
main83800-53A91i201008-201108
AUSTRALIA SPEC&TIRE & DISC WHEEL-225/45R17+245/45R17,ALUMINUM
main83800-53A91i201008-201108
AUSTRALIA SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI
main83800-53A91i201008-201108
MALAYSIA SPEC&TIRE & DISC WHEEL-225/45R17+245/45R17,GEN
main83800-53A91i201008-201108
NEW ZEALAND SPEC&TIRE & DISC WHEEL-225/45R17+245/45R17,ALUMINUM
main83800-53A91i201008-201108
NEW ZEALAND SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI
main83800-53A91i201008-201108
NEW ZEALAND SPEC&TIRE & DISC WHEEL-225/45R17+245/45R17,ALUMI,ART WORKS&HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
main83800-53A91i201008-201108
HONG KONG SPEC&TIRE & DISC WHEEL-225/45R17+245/45R17,GEN
main83800-53A92i201108-201111
NEW ZEALAND SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI
main83800-53A92i201108-201111
NEW ZEALAND SPEC&TIRE & DISC WHEEL-225/45R17+245/45R17,ALUMINUM
main83800-53A92i201108-201111
HONG KONG SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI
main83800-53A92i201108-201111
HONG KONG SPEC&TIRE & DISC WHEEL-225/45R17+245/45R17,GEN
main83800-53A92i201108-201111
SINGAPORE SPEC&TIRE & DISC WHEEL-225/45R17+245/45R17,GEN
main83800-53A92i201108-201111
THAILAND SPEC&TIRE & DISC WHEEL-225/45R17+245/45R17,GEN
main83800-53A92i201108-201111
AUSTRALIA SPEC&TIRE & DISC WHEEL-225/45R17+245/45R17,ALUMINUM
main83800-53A92i201108-201111
AUSTRALIA SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI
main83800-53A92i201108-201111
MALAYSIA SPEC&TIRE & DISC WHEEL-225/45R17+245/45R17,GEN
main83800-53A93i201112-201208
AUSTRALIA SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI
main83800-53A93i201112-201208
MALAYSIA SPEC&TIRE & DISC WHEEL-225/45R17+245/45R17,GEN
main83800-53A93i201112-201208
NEW ZEALAND SPEC&TIRE & DISC WHEEL-225/45R17+245/45R17,ALUMINUM
main83800-53A93i201112-201208
NEW ZEALAND SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI
main83800-53A93i201112-201208
HONG KONG SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI
main83800-53A93i201112-201208
HONG KONG SPEC&TIRE & DISC WHEEL-225/45R17+245/45R17,GEN
main83800-53A93i201112-201208
SINGAPORE SPEC&TIRE & DISC WHEEL-225/45R17+245/45R17,GEN
main83800-53A93i201112-201208
THAILAND SPEC&TIRE & DISC WHEEL-225/45R17+245/45R17,GEN
main83800-53A93i201112-201208
AUSTRALIA SPEC&TIRE & DISC WHEEL-225/45R17+245/45R17,ALUMINUM
main83800-53A94i201208
NEW ZEALAND SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI
main83800-53A94i201208
HONG KONG SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI
main83800-53A94i201208
HONG KONG SPEC&TIRE & DISC WHEEL-225/45R17+245/45R17,GEN
main83800-53A94i201208
SINGAPORE SPEC&TIRE & DISC WHEEL-225/45R17+245/45R17,GEN
main83800-53A94i201208
THAILAND SPEC&TIRE & DISC WHEEL-225/45R17+245/45R17,GEN
main83800-53A94i201208
AUSTRALIA SPEC&TIRE & DISC WHEEL-225/45R17+245/45R17,ALUMINUM
main83800-53A94i201208
AUSTRALIA SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI
main83800-53A94i201208
MALAYSIA SPEC&TIRE & DISC WHEEL-225/45R17+245/45R17,GEN
main83800-53A94i201208
SINGAPORE SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI
main83800-53A94i201208
NEW ZEALAND SPEC&TIRE & DISC WHEEL-225/45R17+245/45R17,ALUMINUM
83138GGLASS, COMBINATION METER
main83852-53730i200508-201008
main83852-53820i201008

2 parts on this diagram · 2 diagrams in section

METER for Toyota LEXUS IS250/350/2##D

This section contains 6 genuine Toyota parts for the METER system of the Toyota LEXUS IS250/350/2##D. Key components include: LENS ASSY, CLOCK & INDICATOR, METER ASSY, COMBINATION, GLASS, COMBINATION METER, CLOCK SUB-ASSY, CLOCK ASSY.
