Toyota LEXUS IS250/350/2##D — PARTIAL ENGINE ASSEMBLY

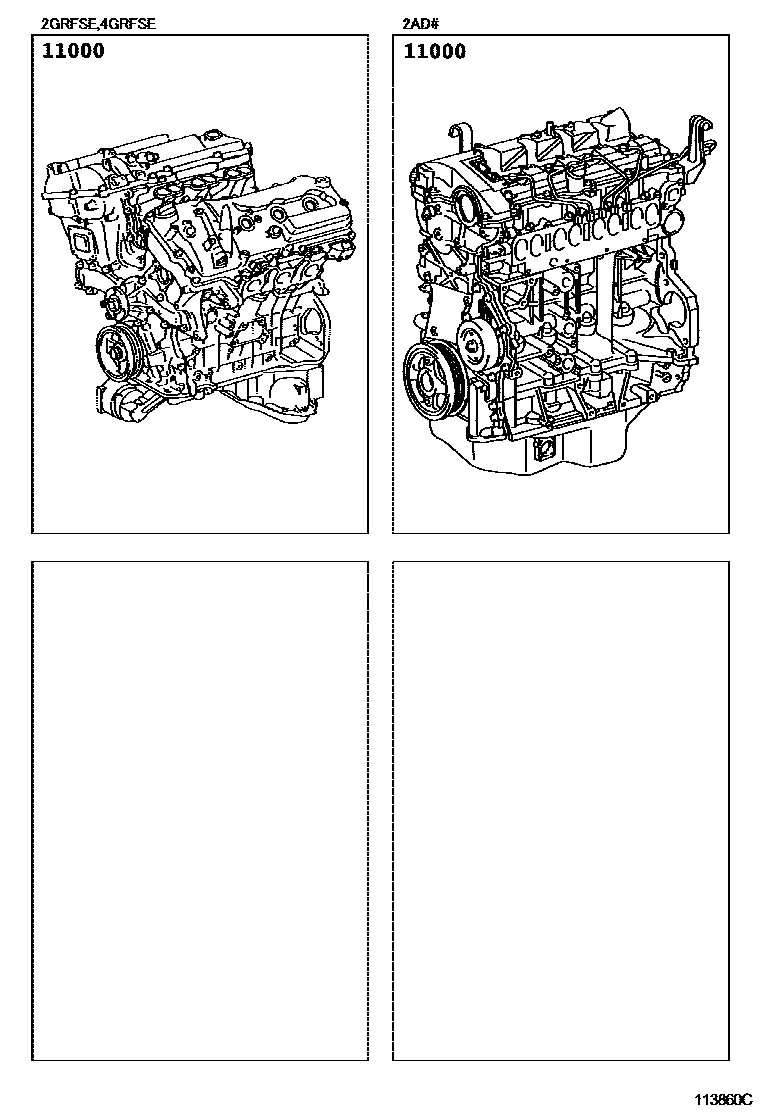

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-26380i200511-200603
sub12261-26021
sub90466-23003
main19000-26381i200603-200802
main19000-26550i200808-200908
main19000-26610i201008-201208
main19000-26620i201008-201208
main19000-31371i200704-200802
sub15330-31020
main19000-31A92i200808-201008
main19000-31B41i201008-201110
main19000-31B42i201110-201304
sub19000-31B43
main19000-31F40i200701-200704
sub15330-31020
main19000-31F41i200808-201008

1 parts on this diagram · 1 diagram in section
