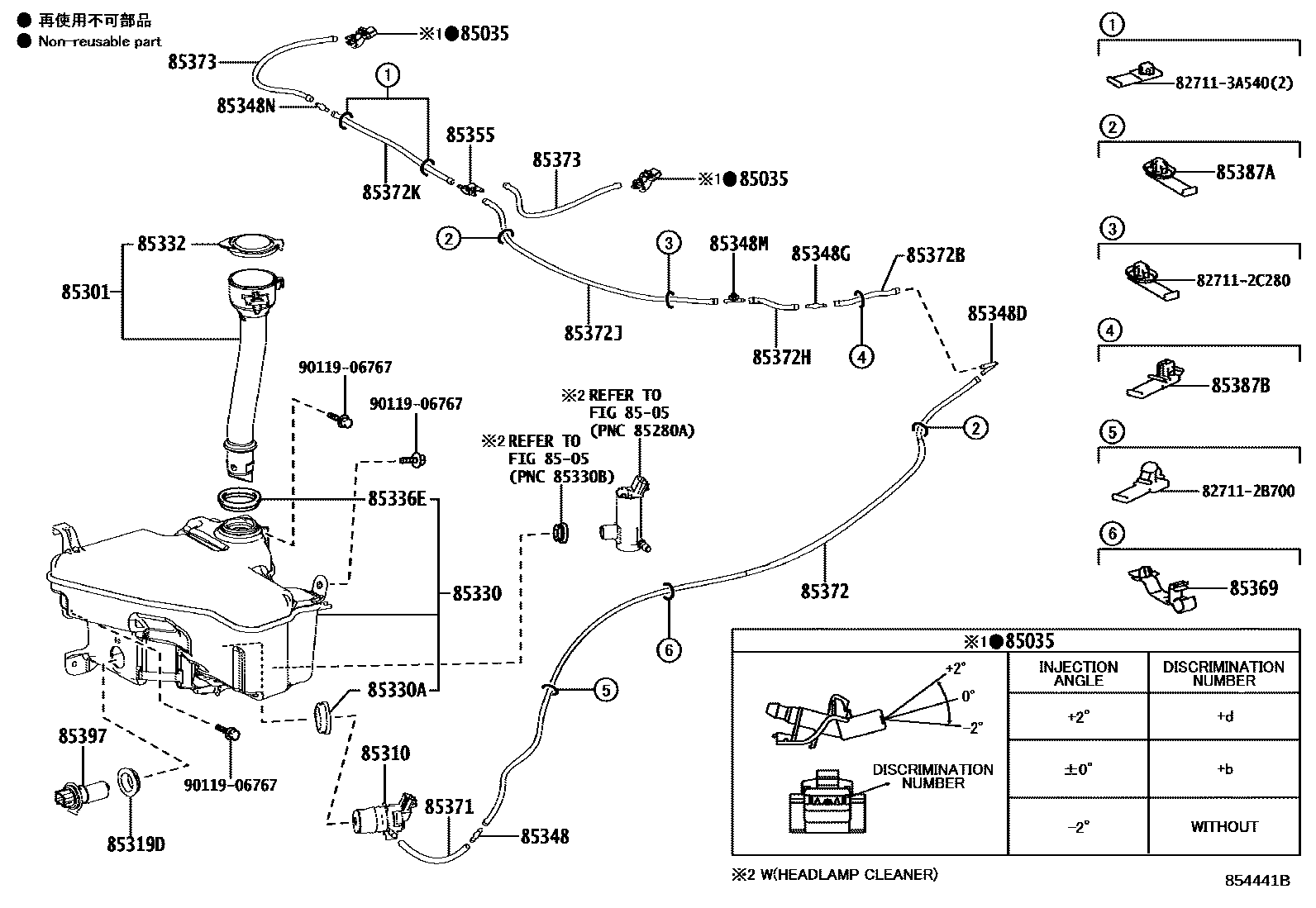

Toyota LEXUS IS2###/3### — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-30220×2i201508-201610

ANGLE 0

main85381-30230×2i201304-201508

ANGLE -2

main85381-30240×2i202009-202110

ANGLE +2

8505HEADLAMP CLEANER

→ Go to FIG 85-05

85301INLET SUB-ASSY, WASHER

main85301-53010i201304-201508

main85301-53011i202111

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-60190i201610-202009

85319DPACKING, FRONT WASHER

main85319-33230i201508-201610

85330JAR ASSY, WINDSHIELD WASHER

main85355-53070supersedes 85315-53130i201508-201610

HEADLAMP CLEANER-WITH(SYNCHRONIZATION TO FIRST WIPER)

main85355-53090i201610-202007

HEADLAMP CLEANER-WITH(SYNCHRONIZATION TO FIRST WIPER)

main85355-53091supersedes 85315-53210i202007-202009

HEADLAMP CLEANER-WITH(SYNCHRONIZATION TO FIRST WIPER)

main85355-53100supersedes 85315-53210i202009-202110

HEADLAMP CLEANER-WITH(SYNCHRONIZATION TO FIRST WIPER)

85330ABUSH, WINDSHIELD WASHER JAR

main85336-60300i201610-202009

85332CAP, WINDSHIELD WASHER JAR

main85316-53200i202007-202009

main85386-53010i201508-201610

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main85336-30160i201610-202009

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122i201304-201508

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-12360i201304-201508

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85375-10260i201304-201508

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85375-17050i201304-201508

85348NJOINT, WINDSHIELD WASHER HOSE, NO.4

main85349-89122i201610-202009

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020i202009-202110

85369CLAMP

main90959-01568i201508-201610

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080i201508-201610

L=1450(*H,L=150); L=1450(*H,L=150),HEADLAMP CLEANER-WITH(SYNCHRONIZATION TO FIRST WIPER)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080i202009-202110

L=1450(*H,L=1290)

main90099-62111i201304-201508

L=1310

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080i201508-201610

L=1450(*H,L=95)

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-33080i201610-202009

L=1450(*H,L=90)

85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4

main90099-33080i201304-201508

L=1450(*H,L=510)

main90099-33299i202111

L=1000(*H,L=520)

85372KHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5

main90099-33080i202009-202110

L=1450(*H,L=320)

main90099-33299i201304-201406

L=1000(*H,L=315)

main90099-62133i201610-202009

L=315

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2i201304-201406

L=1450(*H,L=290)

main90099-62087×2i202111

L=290

85387ACLAMP, WASHER, NO.2

main82711-52090×2i201304-201508

85387BCLAMP, WASHER, NO.3

main82711-3A640i201304-201508

85397SWITCH ASSY,LEVEL WARNING

main85397-30400i201304-201508

827112B700WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2B700

827112C280WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2C280

827113A540WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3A540

9011906767

main90119-06767

30 parts on this diagram · 2 diagrams in section

WINDSHIELD WASHER for Toyota LEXUS IS2###/3###

This section contains 34 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota LEXUS IS2###/3###. Key components include: SWITCH & RELAY & COMPUTER, NOZZLE SUB-ASSY, WASHER, HEADLAMP CLEANER, INLET SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER.
