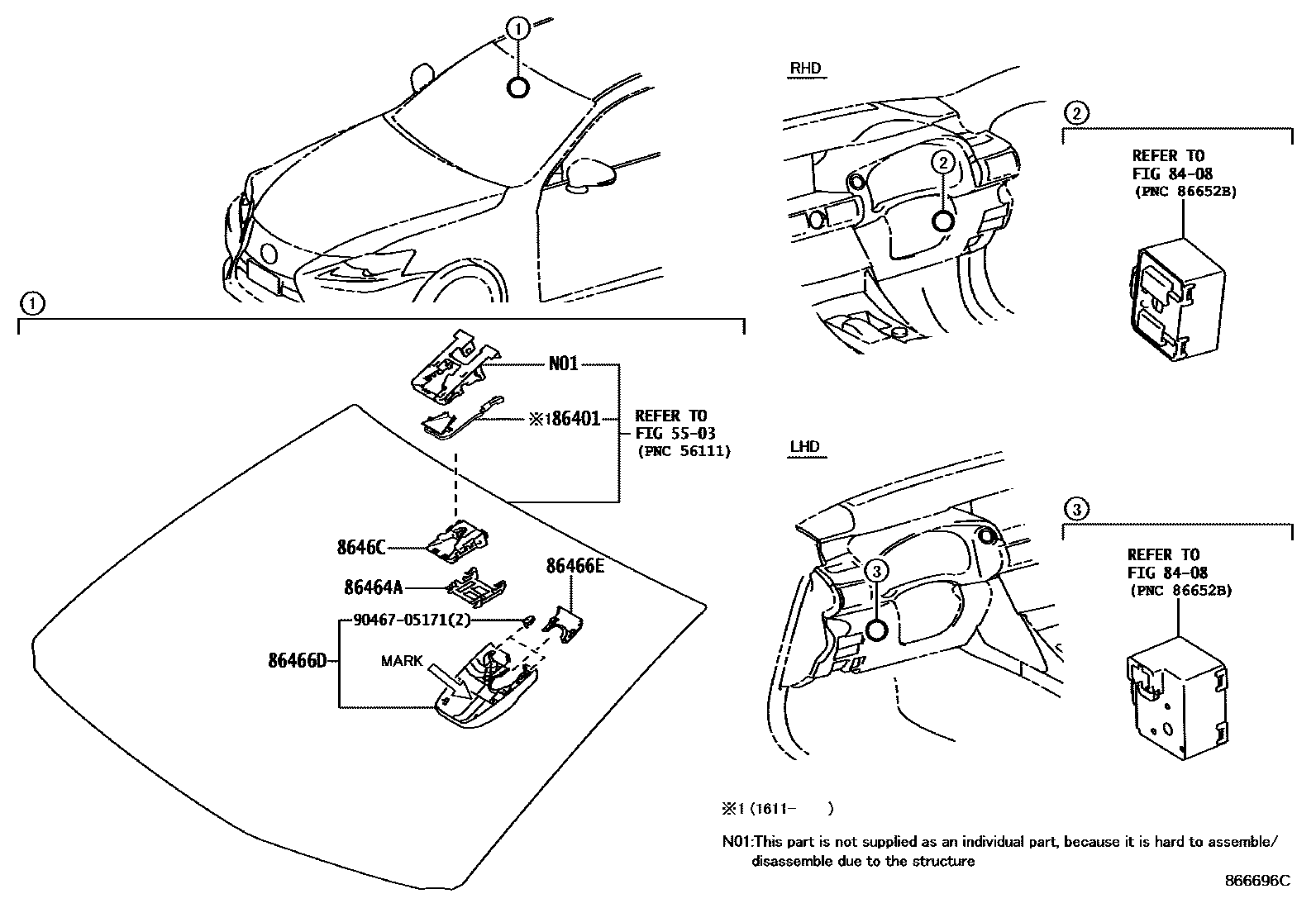

Toyota LEXUS IS2###/3### — PRE-COLLISION SYSTEM

0001 1 0002 1

5503

8408

86401HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER

main86401-53030supersedes 86401-53030iGSE31..ARL202111-202310

main86401-53010iASE30,AVE30;GSE31..ARL,GCC201611-202009

PRE-COLLISION SYSTEM-WITH

86464ALATCH, FORWARD RECOGNITION

main86464-26010supersedes 86464-26010iGSE31..ARL202111-202310

main86464-48011iASE30,AVE30;GSE31..ARL,GCC201610-202009

PRE-COLLISION SYSTEM-WITH

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-53031supersedes 86466-53031iGSE31..ARL202111-202310

main86466-53030iASE30,AVE30;GSE31..ARL,GCC201610-201611

PRE-COLLISION SYSTEM-WITH,MARK = S

86466ECOVER, FORWARD RECOGNITION, NO.2

main86466-53040supersedes 86466-53040iGSE31..ARL202111-202310

8646CCAMERA, FORWARD RECOGNITION

main8646C-53021iASE30,AVE30..ARL,GEN202111-202209

ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +

main8646C-53022iGSE31..ARL202209-202310

main8646C-53010iASE30,AVE30;GSE31..ARL,GCC201610-201702

PRE-COLLISION SYSTEM-WITH

main8646C-53011iASE30,AVE30;GSE31..ARL,GCC201702-201710

PRE-COLLISION SYSTEM-WITH

main8646C-53012iASE30,AVE30;GSE31..ARL,GCC201710-202009

PRE-COLLISION SYSTEM-WITH

9046705171

main90467-05171

8 parts on this diagram · 2 diagrams in section
