Toyota LEXUS IS2###/3### — ACCELERATOR LINK

78010FPEDAL ASSY, ACCELERATOR

main78101-30061supersedes 78101-53051i202111

F SPORT

main78101-53040i201304-201506

F SPORT; F SPORT&EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOSIS); F SPORT&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)

main78101-53041i201507-201508

F SPORT; F SPORT&EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOSIS); F SPORT&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS); THE CRAFTED LINE

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-30140i201304-201306

main78110-30141i201307-201508

main78110-30150i201304-201306

main78110-30151i201307-201508

main78110-30170i201610-202009

main78110-30210i202009-202110

78111EPAD, ACCELERATOR PEDAL

main78117-30030i202009-202110

78119STOPPER, ACCELERATOR PEDAL ROD

main78119-48010i201304-201508

EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOSIS); F SPORT&EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOSIS)

78125ABRACKET, ACCELERATOR PEDAL ROD, NO.2

main78125-30081i201304-201508

78140ABRACKET, ACCELERATOR CONTROL ROD

main84579-30050i202009-202110

main84579-30060i202009-202110

9011906120

main90119-06120

9011906987

main90119-06987

9017906274

main90179-06274

91621B0625

main91621-B0625

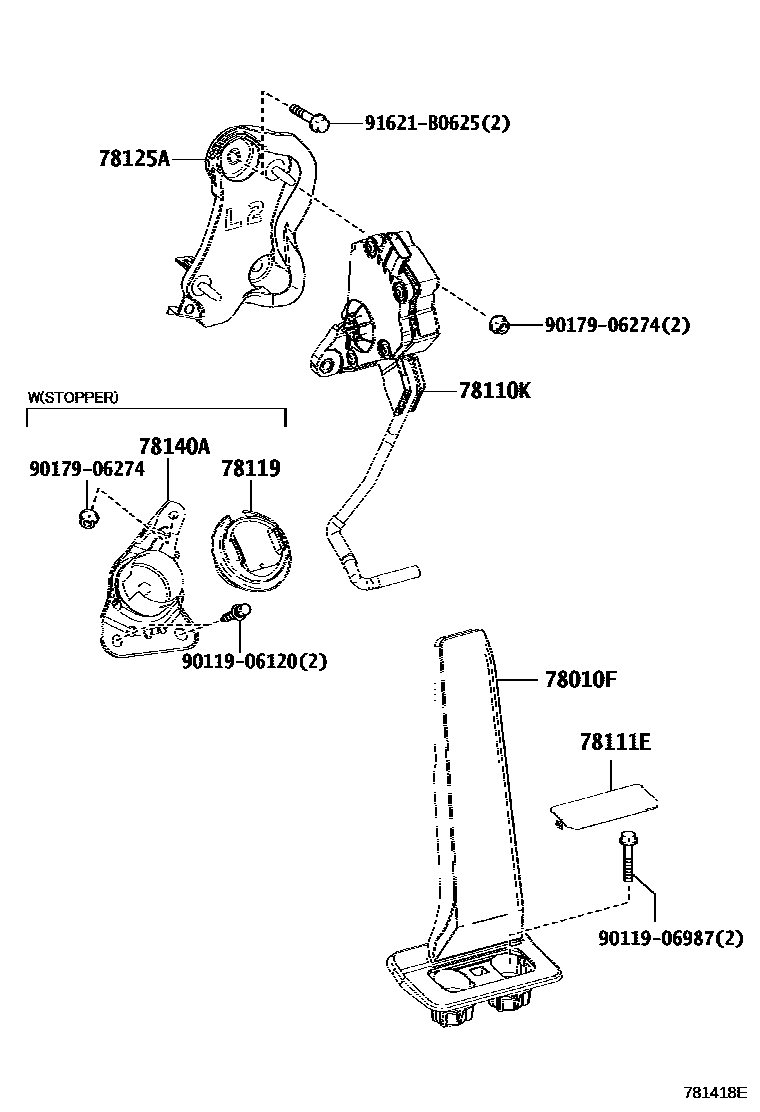

10 parts on this diagram · 2 diagrams in section

ACCELERATOR LINK for Toyota LEXUS IS2###/3###

This section contains 11 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota LEXUS IS2###/3###. Key components include: PEDAL ASSY, ACCELERATOR, ROD ASSY, ACCELERATOR PEDAL(W/SENSOR), PAD, ACCELERATOR PEDAL, STOPPER, ACCELERATOR PEDAL ROD, BRACKET, ACCELERATOR PEDAL ROD.
