Toyota LEXUS IS SERIES — PARTIAL ENGINE ASSEMBLY

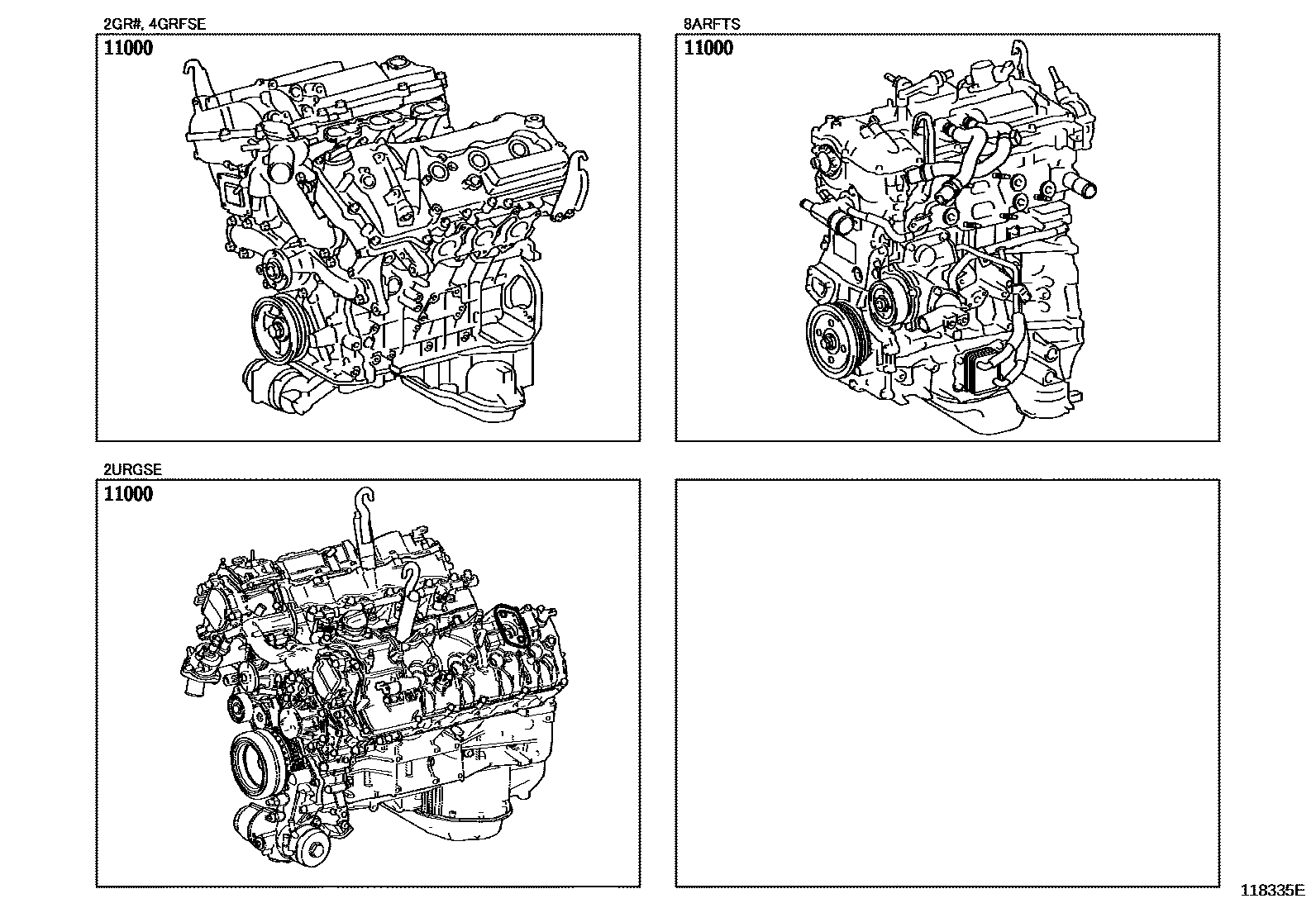

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-31B12i201304-201403

main19000-31B13i201403-201508

main19000-31D52i201304-201403

main19000-31D53i201403-201508

main19000-31M30i201304-201508

main19000-31P70i202009-202110

main19000-31P71i202404

main19000-31P90i201710-202009

main19000-31P91i202404

main19000-31R40i201610-201710

main19000-36540i202009-202110

main19000-38740i202111

main19000-31A92supersedes 19000-31M20i201304-201508

KOREA SPEC

1 parts on this diagram · 1 diagram in section
