Toyota LEXUS IS SERIES — SWITCH & RELAY & COMPUTER

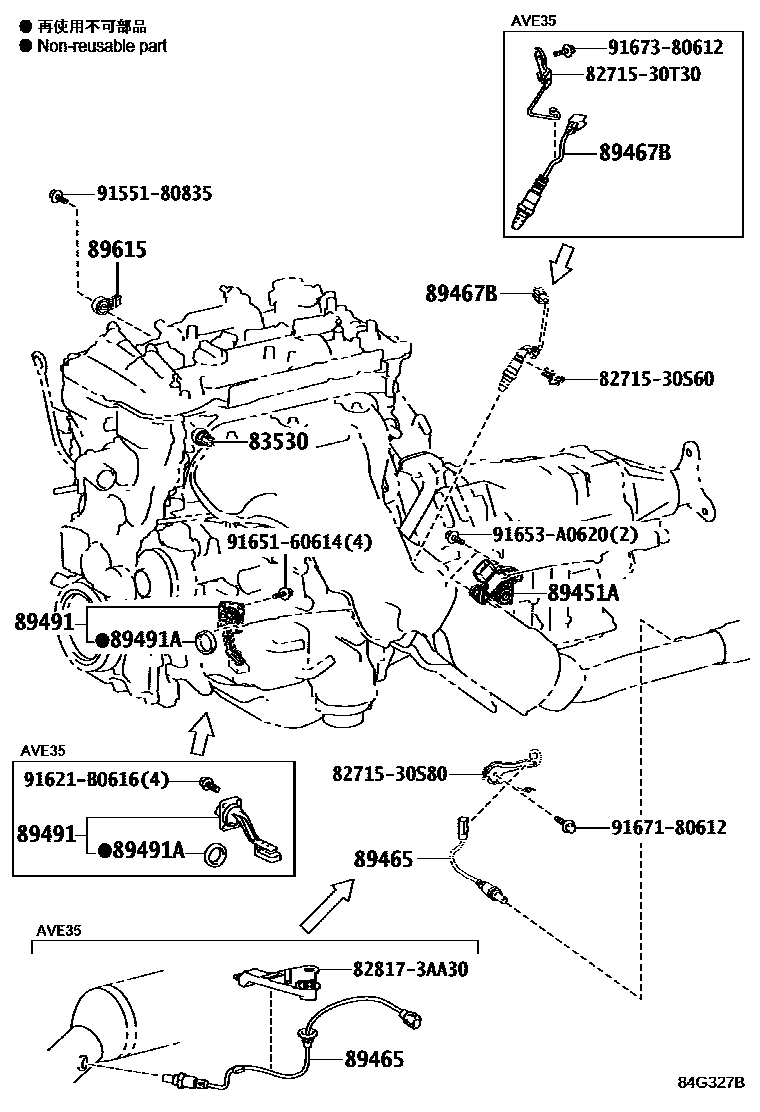

Parts diagram

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020i201304-201508

main83530-60020i201304-201508

89451ASENSOR, SHIFT LEVER POSITION

main89451-30010i201610-202009

89465SENSOR, OXYGEN

main89465-30730i201304-201308

main89465-30B00i202009-202110

main89465-30B40i202111

main89465-53250i202009-202110

main89465-53260i201304-201508

main89465-53270i201508-201610

main89465-53290i202209

main89465-53310i202009-202110

89467BSENSOR, AIR FUEL RATIO

main89467-22030i202009-202110

main89467-22040i201304-201508

main89467-24010i202209

main89467-30060i201610-202009

main89467-30080i202009-202110

main89467-53090i201610-202009

89491SENSOR, ENGINE OIL LEVEL

main89491-24020i202209

main89491-30061i201508-201610

main89491-30071i201304-201508

main89491-30080i201508-201610

main89491-30090i202111

main89491-30100i201710-201808

main89491-30101i202111

89491AGASKET, ENGINE OIL LEVEL SENSOR

main89493-60010i202009-202110

89615SENSOR, KNOCK CONTROL

main89615-20090×2i201508-201610

8271530S60BRACKET,WIRING HARNESS CLAMP

main82715-30S60

8271530S80BRACKET,WIRING HARNESS CLAMP

main82715-30S80

8271530T30BRACKET,WIRING HARNESS CLAMP

main82715-30T30

828173AA30PROTECTOR, WIRING HARNESS, NO.1

main82817-3AA30

9155180835

main91551-80835

91621B0616

main91621-B0616

9165160614

main91651-60614

91653A0620

main91653-A0620

9167180612

main91671-80612

9167380612

main91673-80612

17 parts on this diagram · 24 diagrams in section

SWITCH & RELAY & COMPUTER for Toyota LEXUS IS SERIES

This section contains 221 genuine Toyota parts for the SWITCH & RELAY & COMPUTER system of the Toyota LEXUS IS SERIES. Key components include: RELAY ASSY, STARTER, RELAY, IGNITION, NO.1, SENSOR ASSY, BATTERY CURRENT, SENSOR ASSY, BATTERY STATE, COVER, BATTERY TERMINAL.
