Toyota LEXUS IS SERIES — PRE-COLLISION SYSTEM

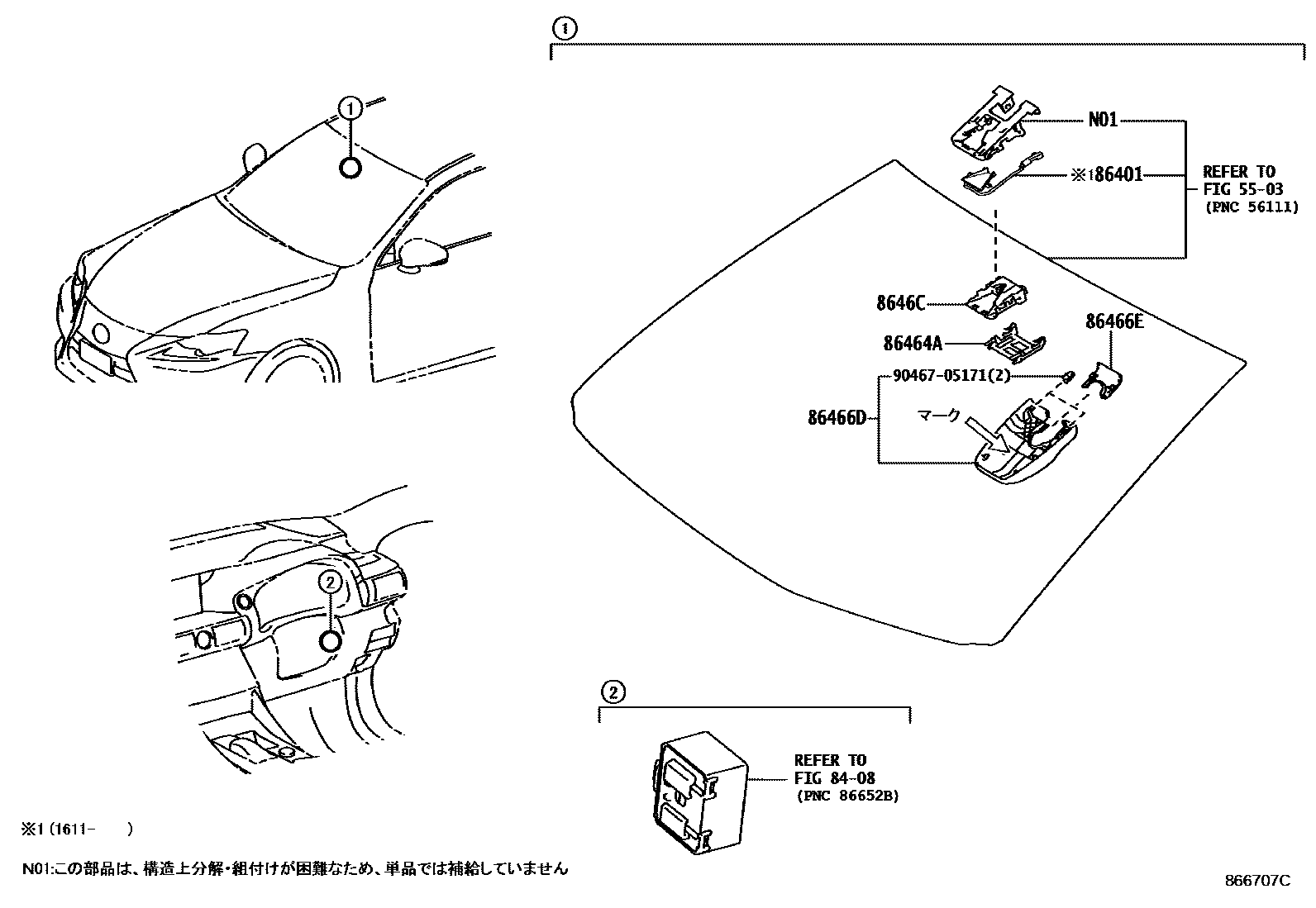

Parts diagram

5503COWL PANEL & WINDSHIELD GLASS

→ Go to FIG 55-03

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08

86401HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER

main86401-53010i201611-202009

main86401-53030i202009-202110

86464ALATCH, FORWARD RECOGNITION

main86464-26010i202111

main86464-48011i201610-202009

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-53030i201610-201611

main86466-53031i201611-202009

86466ECOVER, FORWARD RECOGNITION, NO.2

main86466-53040i201610-202009

8646CCAMERA, FORWARD RECOGNITION

main8646C-53010i201610-201702

main8646C-53011i201702-201710

main8646C-53012i201710-202009

main8646C-53020i202009-202110

main8646C-53021i202111-202209

main8646C-53022i202209-202411

main8646C-53023i202411

9046705171

main90467-05171

8 parts on this diagram · 2 diagrams in section

PRE-COLLISION SYSTEM for Toyota LEXUS IS SERIES

This section contains 8 genuine Toyota parts for the PRE-COLLISION SYSTEM system of the Toyota LEXUS IS SERIES. Key components include: COWL PANEL & WINDSHIELD GLASS, CRUISE CONTROL (AUTO DRIVE), HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER, LATCH, FORWARD RECOGNITION, COVER, FORWARD RECOGNITION, NO.1.
