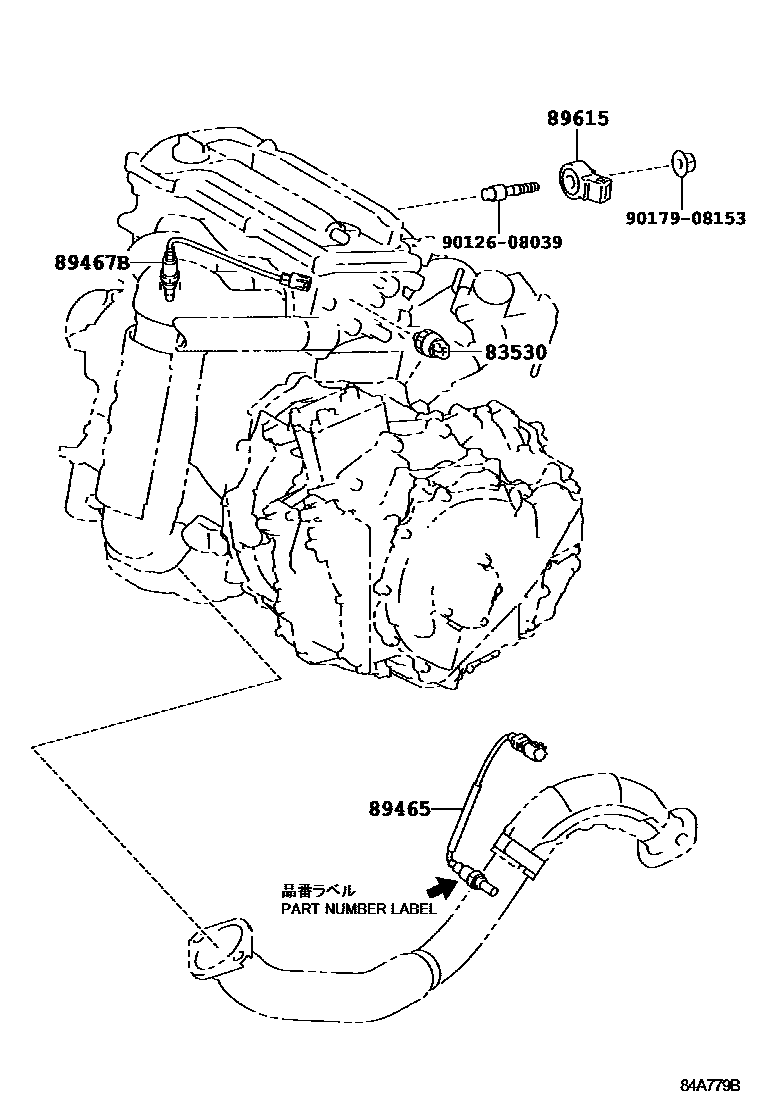

Toyota LEXUS HS250H — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 1/2 0003 1ENGINE ROOM 2/2 0004 1COWL 0005 1INSTRUMENT PANEL 0006 1STEERING 0007 1SEAT 0008 1DOOR,ROOF,FLOOR & LUGGAGE

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iANF10200907

DENSO

main83530-60020iANF10200907

YAZAKI

89465SENSOR, OXYGEN

main89465-75010iANF10200907-201201

P/N LABEL=8946575010

89467BSENSOR, AIR FUEL RATIO

main89467-75010iANF10200907-201201

89615SENSOR, KNOCK CONTROL

main89615-20090iANF10200907-201201

9012608039

main90126-08039

9017908153

main90179-08153

6 parts on this diagram · 8 diagrams in section
