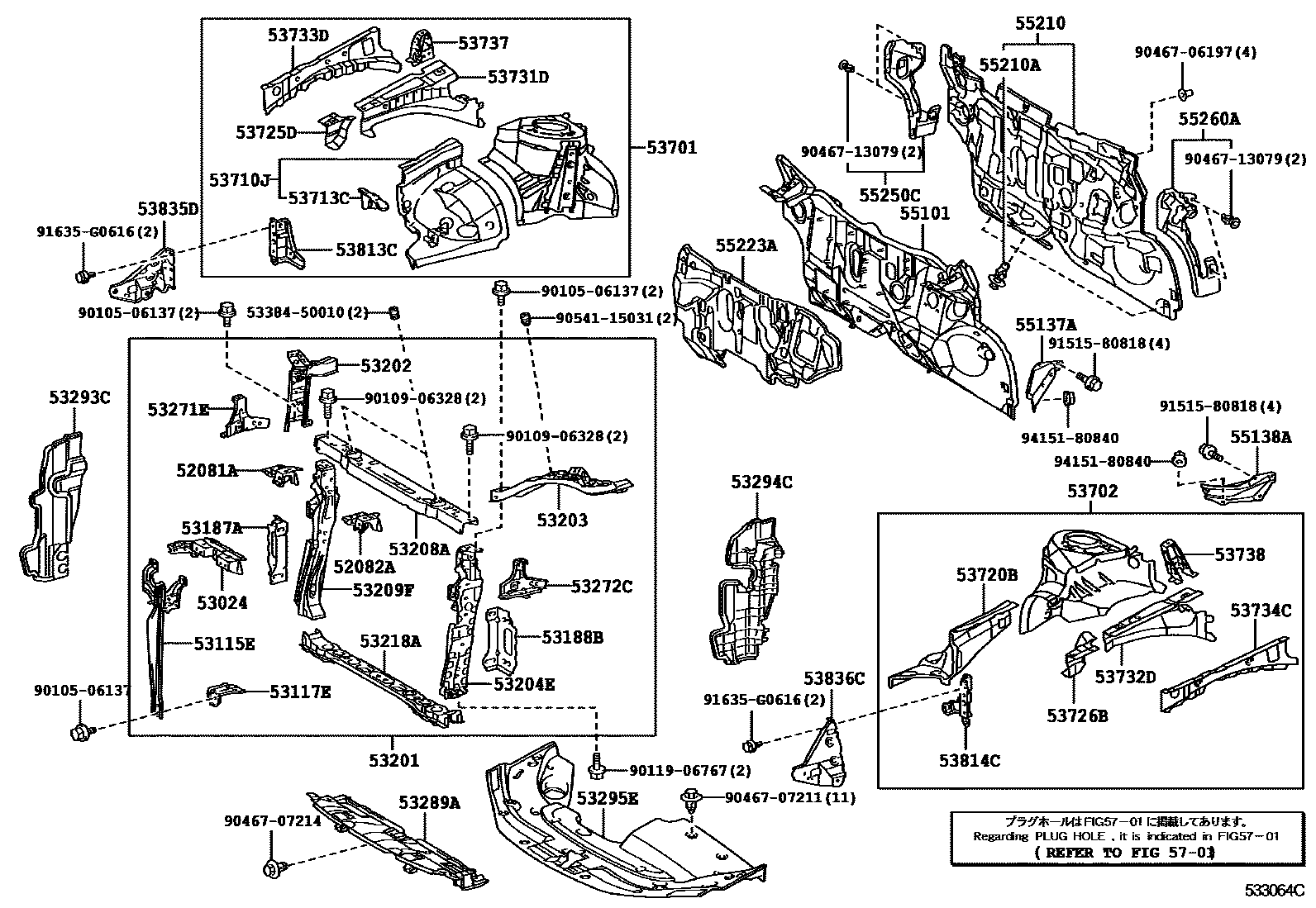

Toyota LEXUS HS250H — FRONT FENDER APRON & DASH PANEL

52081ASTAY SUB-ASSY, FRONT BUMPER, RH

main52081-75020i200907-201201

52082ASTAY SUB-ASSY, FRONT BUMPER, LH

main52082-75040i200907-201201

53024REINFORCEMENT SUB-ASSY, RADIATOR SUPPORT

main53024-75030i200907-201201

53115EBRACKET, RADIATOR GRILLE

main53207-75020i200907-201201

53117EBRACKET, RADIATOR GRILLE, LOWER

main53117-72010i200907-201201

53187ASTAY, RADIATOR SUPPORT, RH

main53187-12030i200907-201201

53188BSTAY, RADIATOR SUPPORT, LH

main53188-12030i200907-201201

53201SUPPORT SUB-ASSY, RADIATOR

main53201-75020i200907-201201

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-75020i200907-201201

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-75020i200907-201201

53204EBRACE SUB-ASSY, RADIATOR SUPPORT TO CROSSMEMBER, LH

main53204-75010i200907-201201

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-75010i200907-201201

53209FBRACE SUB-ASSY, RADIATOR SUPPORT TO CROSSMEMBER, RH

main53209-75010i200907-201201

53218ASUPPORT, RADIATOR, LOWER

main53218-12901i200907-201201

53271EBRACKET, HEADLAMP MOUNTING, RH

main53271-75030i200907-201201

53272CBRACKET, HEADLAMP MOUNTING, LH

main53272-75030i200907-201201

53289ACOVER, RADIATOR SUPPORT OPENING

main53289-75030i200907-201201

53293CDEFLECTOR, RADIATOR SIDE, RH

main53293-75020i200907-201201

53294CDEFLECTOR, RADIATOR SIDE, LH

main53294-75020i200907-201201

53295ESEAL, COOL AIR INTAKE DUCT

main53295-75020supersedes 53295-75030i200907-201201

HEADLAMP-LED & *AFLS & AUTOMATIC HIGH BEAM SYSTEM

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-75020i200907-201201

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-75020i200907-201201

53710JAPRON ASSY, FRONT FENDER, RH

main53710-12030i200907-201201

53713CEXTENSION, FRONT FENDER APRON, FRONT RH

main53713-12160i200907-201201

53720BAPRON ASSY, FRONT FENDER, LH

main53720-12030i200907-201201

53725DREINFORCEMENT, FRONT SPRING SUPPORT, NO.2 RH

main53725-12040i200907-201201

53726BREINFORCEMENT, FRONT SPRING SUPPORT, NO.2 LH

main53726-12040i200907-201201

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-12170i200907-201201

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-12150i200907-201201

53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH

main53733-12070i200907-201201

53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH

main53734-12070i200907-201201

53737PLATE, FRONT APRON TO COWL SIDE MEMBER, RH

main53707-75020i200907-201201

53738PLATE, FRONT APRON TO COWL SIDE MEMBER, LH

main53708-75020i200907-201201

53813CEXTENSION, FRONT FENDER, RH

main53813-75010i200907-201201

53814CEXTENSION, FRONT FENDER, LH

main53814-75010i200907-201201

53835DBRACKET, FRONT SIDE PANEL, RH

main53803-75020i200907-201201

53836CBRACKET, FRONT SIDE PANEL, LH

main53804-75020i200907-201201

55101PANEL SUB-ASSY, DASH

main55101-12B60i200907-201201

55137ABRACE, DASH TO FRAME, RH

main55137-12030i200907-201201

55138ABRACE, DASH TO FRAME, LH

main55138-75010i200907-201201

55210INSULATOR ASSY, DASH PANEL

main55210-75020i200907-201201

55210ACLIP

main90467-11127×3i200907-201201

55223AINSULATOR, DASH PANEL, OUTER

main55223-75020i200907-201201

55250CINSULATOR ASSY, DASH PANEL, LOWER RH

main55250-75010i200907-201201

55260AINSULATOR ASSY, DASH PANEL, LOWER LH

main55260-75010i200907-201201

5701HOLE PLUG

→ Go to FIG 57-01

5338450010BAR, HOOD SILENCER SUPPORT

main53384-50010

9010506137

main90105-06137

9010906328

main90109-06328

9011906767

main90119-06767

9046706197

main90467-06197

9046707211

main90467-07211

9046707214

main90467-07214

9046713079

main90467-13079

9054115031

main90541-15031

9151580818

main91515-80818

91635G0616

main91635-G0616

9415180840

main94151-80840

58 parts on this diagram · 1 diagram in section

FRONT FENDER APRON & DASH PANEL for Toyota LEXUS HS250H

This section contains 58 genuine Toyota parts for the FRONT FENDER APRON & DASH PANEL system of the Toyota LEXUS HS250H. Key components include: STAY SUB-ASSY, FRONT BUMPER, RH, STAY SUB-ASSY, FRONT BUMPER, LH, REINFORCEMENT SUB-ASSY, RADIATOR SUPPORT, BRACKET, RADIATOR GRILLE, BRACKET, RADIATOR GRILLE, LOWER.
