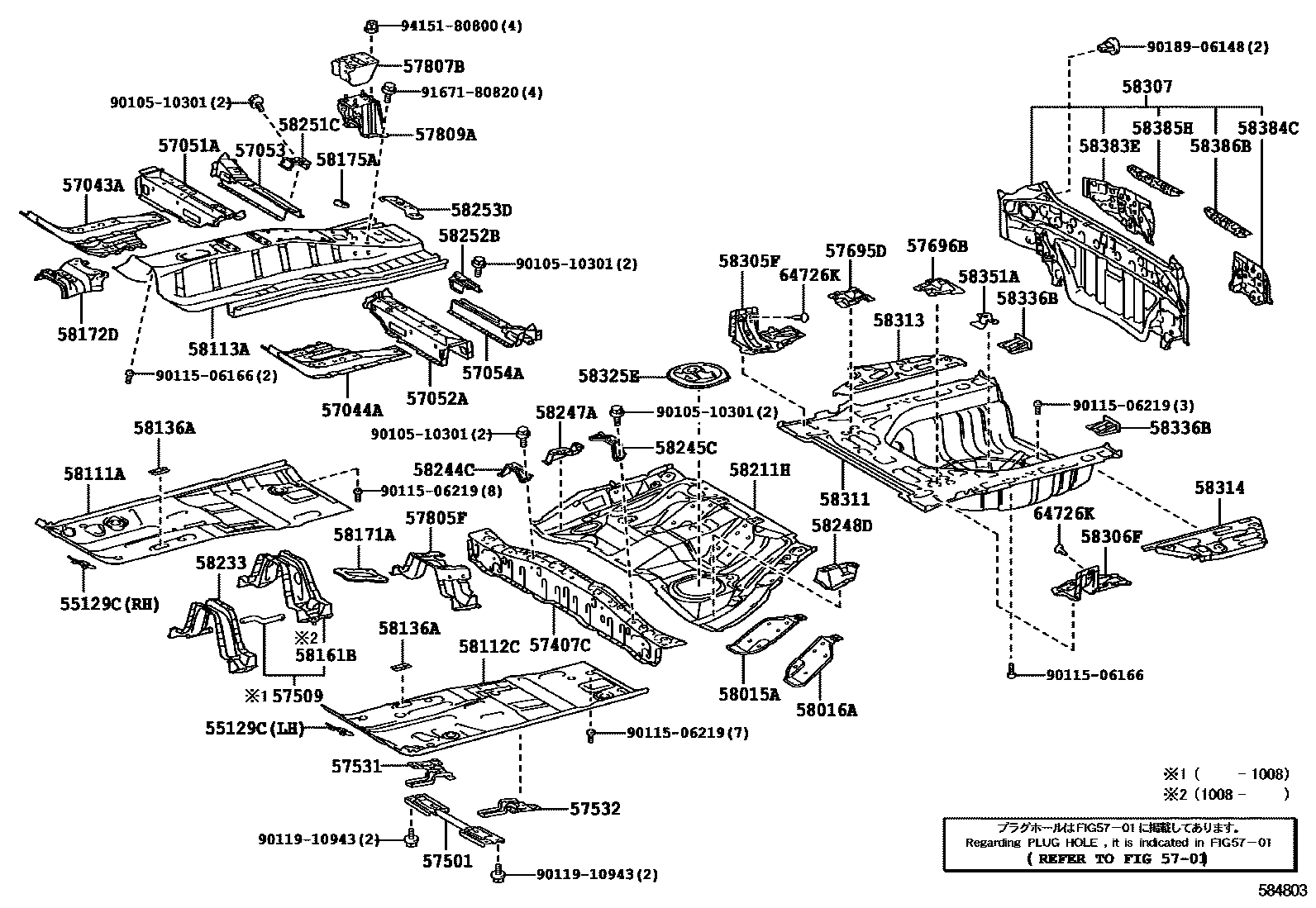

Toyota LEXUS HS250H — FLOOR PAN & LOWER BACK PANEL
55129CCOVER, DASH PANEL HOLE
RH
LH
5701HOLE PLUG
57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH
57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH
57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH
57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH
57407CMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1
57501BRACKET SUB-ASSY, FRONT SEAT, CENTER
57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER
57531BRACKET, FRONT FLOOR CENTER BRACE, RH
57532BRACKET, FRONT FLOOR CENTER BRACE, LH
57695DBRACKET, REAR FLOOR MOUNTING, NO.2 RH
57696BBRACKET, REAR FLOOR MOUNTING, NO.2 LH
57805FREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1
57807BREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.2
57809AREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.3
58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH
58111APAN, FRONT FLOOR, RH
58112CPAN, FRONT FLOOR, LH
58113APANEL, FRONT FLOOR, CENTER
58136ACOVER, FRONT FLOOR SERVICE HOLE
58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN
58171AREINFORCE, PARKING BRAKE BASE
58172DBRACKET, COMPUTER MOUNTING, NO.4
58175AREINFORCEMENT, PARKING BRAKE BASE, NO.1
58211HPAN, CENTER FLOOR
58233BRACKET, EXHAUST PIPE MOUNTING
58244CBRACKET, REAR SEAT CUSHION MOUNTING, RH
58245CBRACKET, REAR SEAT CUSHION MOUNTING, LH
58247AREINFORCEMENT, REAR SEAT CUSHION HINGE, RH
58248DBRACKET, REAR SEAT HINGE, OUTER LH
58251CBRACE, FLOOR PANEL, FRONT RH
58252BBRACE, FLOOR PANEL, FRONT LH
58253DBRACKET, PARKING BRAKE CABLE
58305FPANEL SUB-ASSY, REAR FLOOR SIDE, RH
58306FPANEL SUB-ASSY, REAR FLOOR SIDE, LH
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58336BREINFORCEMENT, REAR FLOOR PAN
58351ABRACKET, SPARE WHEEL CARRIER
58383EREINFORCEMENT, BODY LOWER BACK, NO.2 RH
58384CREINFORCEMENT, BODY LOWER BACK, NO.2 LH
58385HBRACKET, REAR BUMPER COVER, NO.1
58386BBRACKET, REAR BUMPER COVER, NO.2
64726KCLIP, LUGGAGE TRIM, REAR
9010510301
main90105-10301
9011506166
main90115-06166
9011506219
main90115-06219
9011910943
main90119-10943
9018906148
main90189-06148
9167180820
main91671-80820
9415180800
main94151-80800
58 parts on this diagram · 2 diagrams in section
FLOOR PAN & LOWER BACK PANEL for Toyota LEXUS HS250H
This section contains 75 genuine Toyota parts for the FLOOR PAN & LOWER BACK PANEL system of the Toyota LEXUS HS250H. Key components include: COVER, DASH PANEL HOLE, HOLE PLUG, REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH, REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH, MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH.
