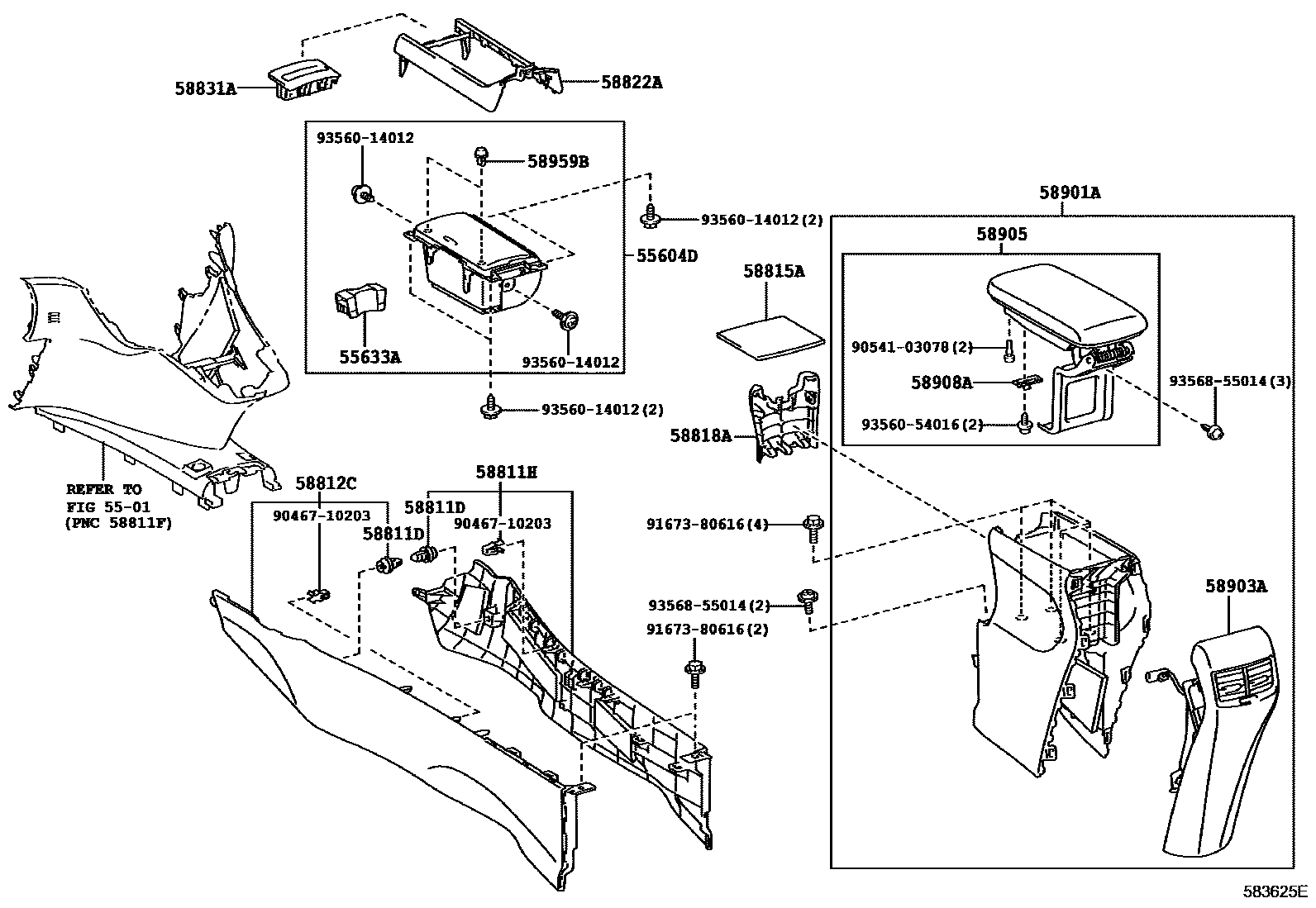

Toyota LEXUS HS250H — CONSOLE BOX & BRACKET

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

55604DHOLDER SUB-ASSY, INSTRUMENT PANEL CUP

main55604-75030supersedes 55604-75010i200907-201201

DOOR TRIM-WOOD PANEL(WALNUT/MEDIUMBROWN)&SEAT HEATER-WITH

55633ASUPPORT, INSTRUMENT PANEL CUP HOLDER, NO.1

main55633-75010i200907-201201

58811DCLIP(FOR CONSOLE BOX)

main67771-58020×2i200907-201201

58811HBOX, CONSOLE, RH

main58811-75020-C0i200907-201201

BLACK,TRIM06,2#

main58811-75020-E0i200907-201201

DK. BROWN,TRIM05,06

58812CBOX, CONSOLE, LH

main58812-75020-C0i200907-201201

BLACK,TRIM06,2#

main58812-75020-E0i200907-201201

DK. BROWN,TRIM05,06

58815ACARPET, CONSOLE BOX

main58815-75010i200907-201201

58818ACOVER, CONSOLE BOX, FR

main58818-75010-C0i200907-201201

BLACK,TRIM06,2#

main58818-75010-E0i200907-201201

DK. BROWN,TRIM05,06

58822APANEL, CONSOLE, UPPER REAR

main58822-75010-C0i200907-201201

BLACK,TRIM06,2#

main58822-75010-E0i200907-201201

DK. BROWN,TRIM05,06

58831AGARNISH, CONSOLE UPPER PANEL, FRONT

main58831-75010-C0i200907-201201

BLACK,TRIM06,2#

main58831-75010-E0i200907-201201

DK. BROWN,TRIM05

main58831-75030i200907-201201

DOOR TRIM-WOOD PANEL(WALNUT/MEDIUMBROWN)&SEAT HEATER-WITH

main58831-75070i200907-201201

SEAT HEATER-WITH

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-75020-C1i200907-200910

BLACK/BLACK,TRIM2#

main58901-75020-C2i200907-200910

BLACK/WATER WHITE,TRIM06

main58901-75020-E1i200907-200910

DK.BROWN/IVORY,TRIM05

main58901-75021-C1i200911-201009

BLACK,TRIM2#

main58901-75021-C2i200911-201009

BLACK/WATER WHITE,TRIM06

main58901-75021-E1i200911-201009

DK. BROWN/IVORY,TRIM05

main58901-75022-23i201110-201112

BLACK/WATER WHITE,TRIM06

main58901-75022-C1i201010-201110

BLACK,TRIM2#

main58901-75022-C2i201010-201110

BLACK/WATER WHITE,TRIM06

main58901-75022-C7i201110-201112

BLACK,TRIM2#

main58901-75022-E1i201010-201110

DK. BROWN/IVORY,TRIM05

main58901-75022-E4i201110-201112

DK. BROWN/IVORY,TRIM05

58903APANEL SUB-ASSY, CONSOLE REAR END

main58903-75020-C0i200907-201201

BLACK,TRIM06,2#

main58903-75020-E0i200907-200911

DK. BROWN,TRIM05,06

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-75020-23i201110-201201

BLACK/WATER WHITE,TRIM06

main58905-75020-C1i200907-201110

WATER WHITE,TRIM06

main58905-75020-C2i200907-201110

BLACK,TRIM2#

main58905-75020-C7i201110-201201

BLACK,TRIM2#

main58905-75020-E0i200907-201110

IVORY,TRIM05

main58905-75020-E2i201110-201201

DK. BROWN/IVORY,TRIM05

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-75010i200907-201103

main58908-75040i201104-201201

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-60060×2i200907-201201

9046710203

main90467-10203

9054103078

main90541-03078

9167380616

main91673-80616

9356014012

main93560-14012

9356054016

main93560-54016

9356855014

main93568-55014

21 parts on this diagram · 1 diagram in section

CONSOLE BOX & BRACKET for Toyota LEXUS HS250H

This section contains 21 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota LEXUS HS250H. Key components include: INSTRUMENT PANEL & GLOVE COMPARTMENT, HOLDER SUB-ASSY, INSTRUMENT PANEL CUP, SUPPORT, INSTRUMENT PANEL CUP HOLDER, NO.1, CLIP(FOR CONSOLE BOX), BOX, CONSOLE, RH.
