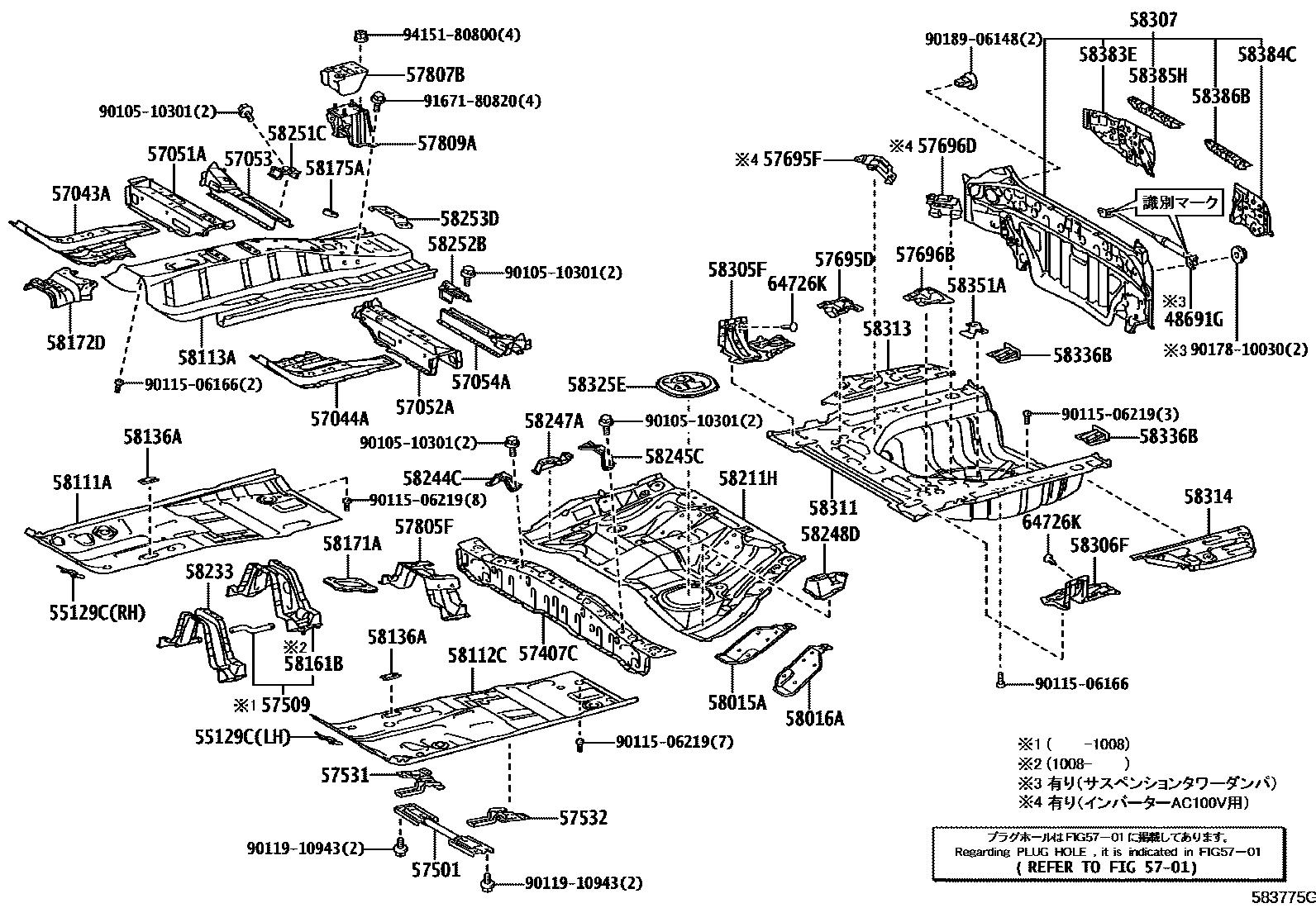

Toyota LEXUS HS250H — FLOOR PAN & LOWER BACK PANEL

48691GDAMPER, SUSPENSION TOWER

main48691-75040i201301-201303

main48691-75041i201303-201802

55129CCOVER, DASH PANEL HOLE

main55129-12040i201301-201802

main55139-12050i200907-201301

5701HOLE PLUG

→ Go to FIG 57-01

57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-12020i200907-201301

57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-12020i201301

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-12060i200907-201301

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-12010i200907-201301

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-12010i200907-201301

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-12010i200907-201301

57407CMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1

main57407-12101i200907-201301

main57407-12103i201503

57501BRACKET SUB-ASSY, FRONT SEAT, CENTER

main57501-12020i200907-201301

57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER

main57509-12061i200907-201008

57531BRACKET, FRONT FLOOR CENTER BRACE, RH

main57531-12010i200907-201301

57532BRACKET, FRONT FLOOR CENTER BRACE, LH

main57532-12010i200907-201301

57695DBRACKET, REAR FLOOR MOUNTING, NO.2 RH

main57695-75010i200907-201301

57695FEXTENSION, REAR FLOOR CROSSMEMBER REAR SIDE, RH

main57695-75020i201406

57696BBRACKET, REAR FLOOR MOUNTING, NO.2 LH

main57696-75010i200907-201301

57696DEXTENSION, REAR FLOOR CROSSMEMBER REAR SIDE, LH

main57696-75020i201406

57805FREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1

main57805-12150i200907-201207

main57805-12151i201208-201301

57807BREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.2

main57807-75010i200907-201301

57809AREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.3

main57809-75010i200907-201301

58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

main58015-47041i200907-201301

main58015-47042i201403

58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH

main58016-47031i200907-201301

58111APAN, FRONT FLOOR, RH

main58111-47903i200907-201301

58112CPAN, FRONT FLOOR, LH

main58112-47900i200907-201301

58113APANEL, FRONT FLOOR, CENTER

main58113-47900i200907-201301

58136ACOVER, FRONT FLOOR SERVICE HOLE

main58136-12040×2i200907-201301

58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN

main58161-12231i201008-201301

58171AREINFORCE, PARKING BRAKE BASE

main58171-12120i200907-201301

58172DBRACKET, COMPUTER MOUNTING, NO.4

main58173-72010i200907-201301

58175AREINFORCEMENT, PARKING BRAKE BASE, NO.1

main58176-12020i201301

58211HPAN, CENTER FLOOR

main58211-47050i201407

main58211-75020i201403-201406

58233BRACKET, EXHAUST PIPE MOUNTING

main58203-12070i200907-201301

58244CBRACKET, REAR SEAT CUSHION MOUNTING, RH

main58244-47010i200907-201301

58245CBRACKET, REAR SEAT CUSHION MOUNTING, LH

main58245-47010i200907-201301

58247AREINFORCEMENT, REAR SEAT CUSHION HINGE, RH

main58247-47010i200907-201210

main58247-47011i201211-201301

58248DBRACKET, REAR SEAT HINGE, OUTER LH

main58248-47010i200907-201210

main58248-47011i201301

58251CBRACE, FLOOR PANEL, FRONT RH

main58251-12040i200907-201301

58252BBRACE, FLOOR PANEL, FRONT LH

main58252-12040i200907-201301

58253DBRACKET, PARKING BRAKE CABLE

main58253-12060i200907-201301

58305FPANEL SUB-ASSY, REAR FLOOR SIDE, RH

main58305-12040i200907-201301

58306FPANEL SUB-ASSY, REAR FLOOR SIDE, LH

main58306-12030i200907-201301

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-75010i200907-201211

main58307-75020i201212-201301

main58307-75021i201303-201410

main58307-75022i201411

58311PAN, REAR FLOOR

main58311-75010i200907-201301

58313PANEL, REAR FLOOR SIDE, RH

main58313-72010i201301

58314PANEL, REAR FLOOR SIDE, LH

main58314-12320i200907-201301

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-12140i200907-201301

58336BREINFORCEMENT, REAR FLOOR PAN

main58336-12090×2i200907-201301

58351ABRACKET, SPARE WHEEL CARRIER

main58351-12060i200907-201301

58383EREINFORCEMENT, BODY LOWER BACK, NO.2 RH

main58383-75010i200907-201212

main58383-75020i201212-201301

main58383-75021i201303

58384CREINFORCEMENT, BODY LOWER BACK, NO.2 LH

main58384-75010i200907-201212

main58384-75020i201212-201301

main58384-75021i201303

58385HBRACKET, REAR BUMPER COVER, NO.1

main58385-48030i200907-201301

58386BBRACKET, REAR BUMPER COVER, NO.2

main58386-48020i200907-201301

64726KCLIP, LUGGAGE TRIM, REAR

main64726-12040×2i200907-201301

9010510301

main90105-10301

9011506166

main90115-06166

9011506219

main90115-06219

9011910943

main90119-10943

9017810030

main90178-10030

9018906148

main90189-06148

9167180820

main91671-80820

9415180800

main94151-80800

62 parts on this diagram · 2 diagrams in section

FLOOR PAN & LOWER BACK PANEL for Toyota LEXUS HS250H

This section contains 79 genuine Toyota parts for the FLOOR PAN & LOWER BACK PANEL system of the Toyota LEXUS HS250H. Key components include: DAMPER, SUSPENSION TOWER, COVER, DASH PANEL HOLE, HOLE PLUG, REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH, REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH.
