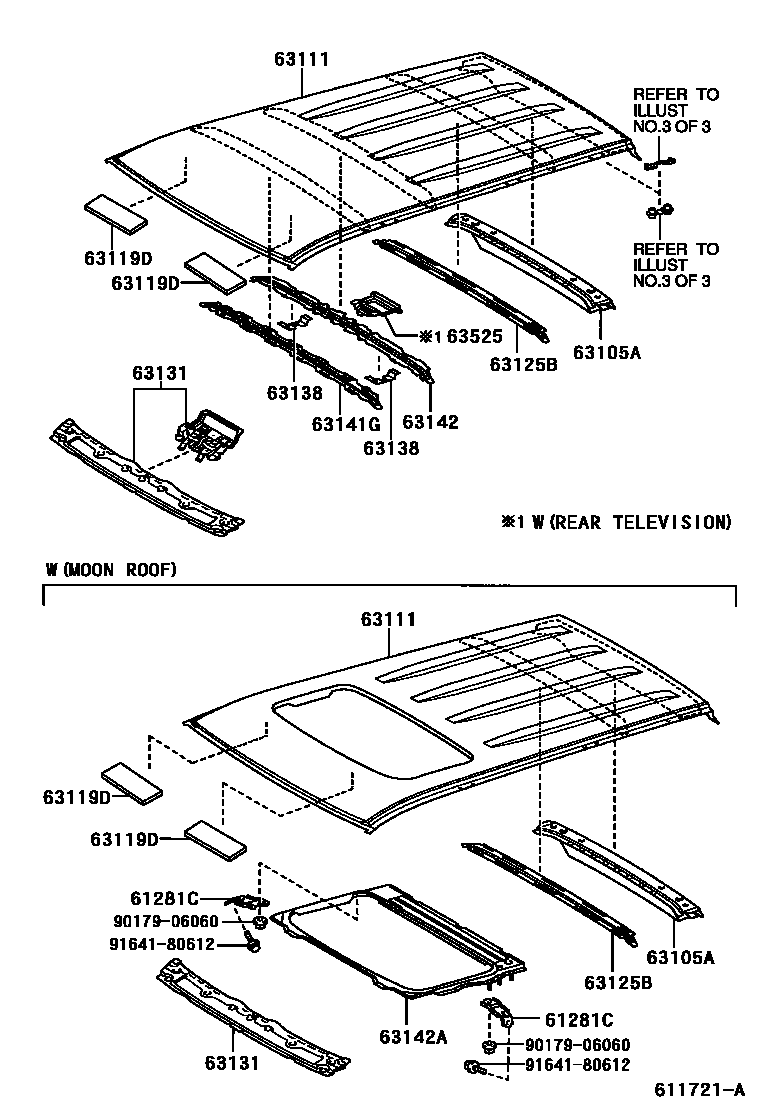

Toyota LEXUS GX470 — ROOF PANEL & BACK PANEL

61281CBRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1

main61281-60030×2i200508

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-60240supersedes 63105-60250i200211-200408

REAR SEAT-REMOVABLE&MAYDAY SYSTEM-WITH; REAR SEAT-REMOVABLE&REAR AUDIO-REAR ENTERTTAINMENT & DVD PLAYER&MAYDAY SYSTEM-WITH; W/MOON ROOF&REAR SEAT-REMOVABLE&MAYDAY SYSTEM-WITH; W/MOON ROOF&REAR SEAT-REMOVABLE&REAR AUDIO-REAR ENTERTTAINMENT & DVD PLAYER&MAYDAYSYSTEM-WITH

63111PANEL, ROOF

main63111-60490i200211-200408

MAYDAY SYSTEM-WITH; REAR SEAT-REMOVABLE&MAYDAY SYSTEM-WITH; REAR SEAT-REMOVABLE&REAR AUDIO-REAR ENTERTTAINMENT & DVD PLAYER&MAYDAY SYSTEM-WITH

main63111-60500supersedes 63111-60480i200211-200508

W/MOON ROOF; W/MOON ROOF&REAR SEAT-REMOVABLE; W/MOON ROOF&REAR SEAT-REMOVABLE&REAR AUDIO-REAR ENTERTTAINMENT & DVD PLAYER

main63111-60510supersedes 63111-60500i200508

MAYDAY SYSTEM-WITH; REAR SEAT-REMOVABLE&MAYDAY SYSTEM-WITH

63119DPAD, ROOF PANEL, NO.1

main63119-35010×2i200211

63125BREINFORCEMENT, ROOF PANEL, FRONT

main63125-60040i200211

63131PANEL, WINDSHIELD HEADER, OUTER

main63103-60031supersedes 63102-60081i200508-200908

main63103-60030supersedes 63102-60080i200211-200311

W/MOON ROOF; W/MOON ROOF&MAYDAY SYSTEM-WITH; W/MOON ROOF&REAR SEAT-REMOVABLE; W/MOON ROOF&REAR SEAT-REMOVABLE&MAYDAY SYSTEM-WITH; W/MOON ROOF&REAR SEAT-REMOVABLE&REAR AUDIO-REAR ENTERTTAINMENT & DVD PLAYER; W/MOON ROOF&REAR SEAT-REMOVABLE&REAR AUDIO-REAR ENTERTTAINMENT & DVD PLAYER&MAYDAYSYSTEM-WITH

63138BRACKET, DOME LAMP, NO.2

main63138-12011×2i200211-200508

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-60080i200211-200508

63142REINFORCEMENT, ROOF PANEL, NO.2

main63143-60050supersedes 63143-60040i200211-200508

REAR SEAT-REMOVABLE&REAR AUDIO-REAR ENTERTTAINMENT & DVD PLAYER

63142AREINFORCEMENT, ROOF PANEL, NO.2

main63142-60901i200508

63525BRACKET, TELEVISION RACK, NO.1

main63525-60010i200211-200408

REAR SEAT-REMOVABLE&REAR AUDIO-REAR ENTERTTAINMENT & DVD PLAYER&MAYDAY SYSTEM-WITH

9017906060

main90179-06060

9164180612

main91641-80612

13 parts on this diagram · 3 diagrams in section

ROOF PANEL & BACK PANEL for Toyota LEXUS GX470

This section contains 65 genuine Toyota parts for the ROOF PANEL & BACK PANEL system of the Toyota LEXUS GX470. Key components include: BRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1, FRAME SUB-ASSY, BACK DOOR OPENING, PANEL, ROOF, PAD, ROOF PANEL, NO.1, REINFORCEMENT, ROOF PANEL, FRONT.
