Toyota LEXUS GX470 — PACKAGE TRAY PANEL

64910JCOVER ASSY, TONNEAU

main64910-60080-A0i200211-200308

PKG.TRAY TRIM & TONEAU COVER-WITH(TONEAU COVER),IVORY,TRIM0#

main64910-60080-B0i200211-200308

PKG.TRAY TRIM & TONEAU COVER-WITH(TONEAU COVER),MD.GRAY,TRIM1#

main64910-60081-A0i200308-200908

PKG.TRAY TRIM & TONEAU COVER-WITH(TONEAU COVER),IVORY,TRIM0#

main64910-60081-B0i200308-200908

PKG.TRAY TRIM & TONEAU COVER-WITH(TONEAU COVER),MD.GRAY,TRIM1#

64935HOLDER, TONNEAU COVER, RH

main64935-60040-A0i200211-200908

PKG.TRAY TRIM & TONEAU COVER-WITH(TONEAU COVER),IVORY,TRIM0#

main64935-60040-B0i200211-200908

PKG.TRAY TRIM & TONEAU COVER-WITH(TONEAU COVER),MD.GRAY,TRIM1#

64936HOLDER, TONNEAU COVER, LH

main64936-60050-A0i200211-200908

PKG.TRAY TRIM & TONEAU COVER-WITH(TONEAU COVER),IVORY,TRIM0#

main64936-60050-B0i200211-200908

PKG.TRAY TRIM & TONEAU COVER-WITH(TONEAU COVER),MD.GRAY,TRIM1#

64937CAP, TONNEAU COVER HOLDER, NO.1

main64937-60020-A0×2i200211-200908

PKG.TRAY TRIM & TONEAU COVER-WITH(TONEAU COVER),IVORY,TRIM0#

main64937-60020-B0×2i200211-200908

PKG.TRAY TRIM & TONEAU COVER-WITH(TONEAU COVER),MD.GRAY,TRIM1#

91622B1020

main91622-B1020

5 parts on this diagram · 1 diagram in section

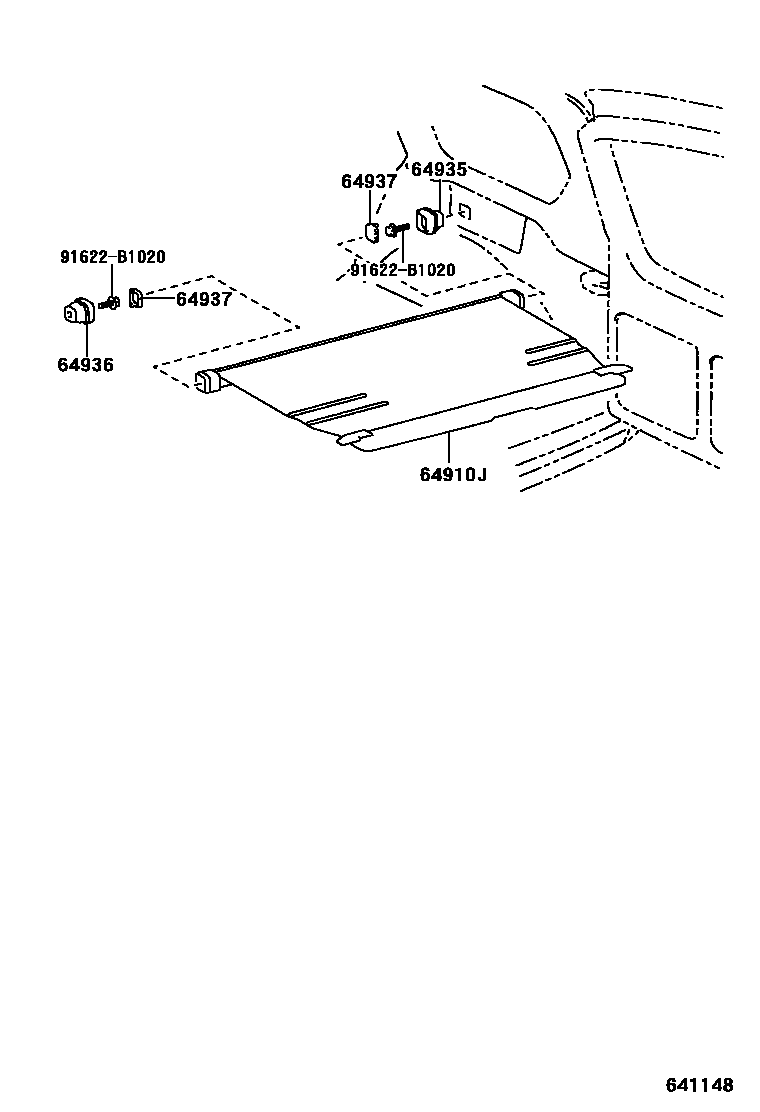

PACKAGE TRAY PANEL for Toyota LEXUS GX470

This section contains 5 genuine Toyota parts for the PACKAGE TRAY PANEL system of the Toyota LEXUS GX470. Key components include: COVER ASSY, TONNEAU, HOLDER, TONNEAU COVER, RH, HOLDER, TONNEAU COVER, LH, CAP, TONNEAU COVER HOLDER, NO.1.
