Toyota LEXUS GX400/460 — METER

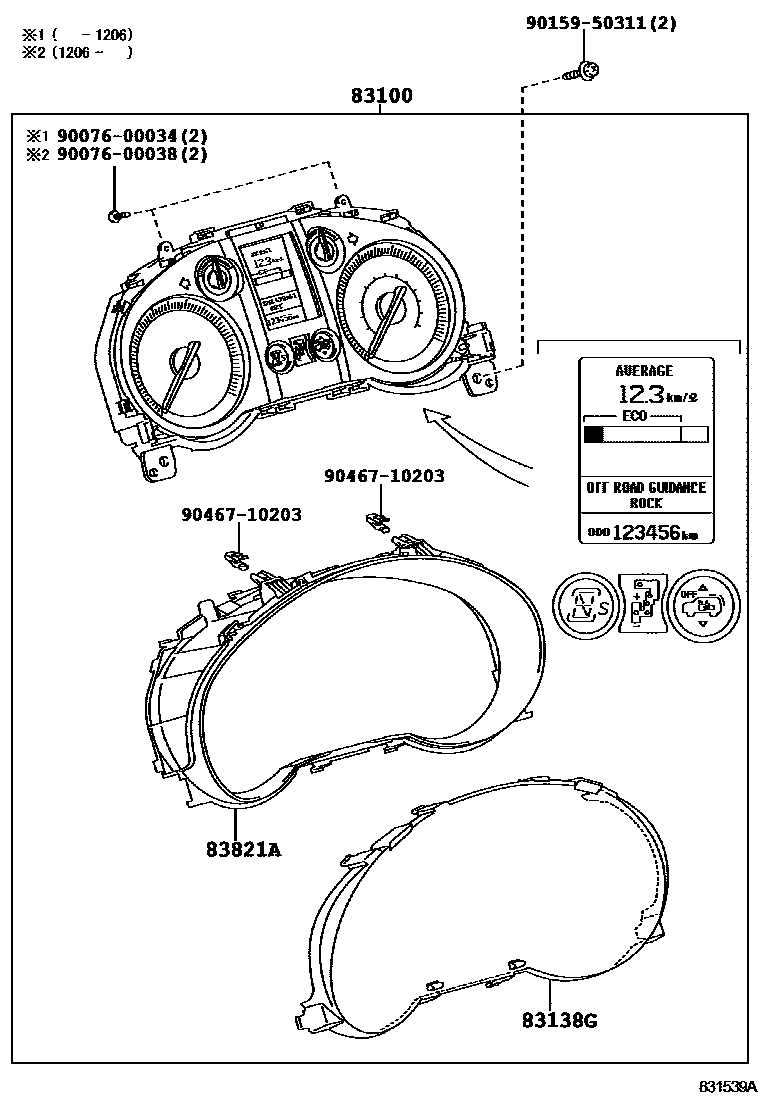

Parts diagram

83100METER ASSY, COMBINATION

main83800-60S90i201309-201408

main83800-60T00i201308-201408

main83800-60W31i201012-201108

main83800-60W32i201108-201206

main83800-60W33i201206-201309

main83800-60W40i200911-201008

main83800-60W41i201008-201108

main83800-60W42i201108-201210

main83800-60W43i201210-201308

main83800-6AS20i201408-201410

main83800-6AS21i201411-201508

main83800-6AS30i201408-201508

main83800-6BC70i201508-201708

main83800-6BC80i201508-201608

main83800-6BK00i201608-201708

main83800-6BT50i201708-201711

main83800-6BT60i201708-201908

main83800-6BV40i201908-202108

YAZAKI

main83800-6CG50i202108-202209

YAZAKI

main83800-6CG51i202210

YAZAKI

83138GGLASS, COMBINATION METER

main83852-60D70i200911-201206

main83852-6BV20i201908-202311

83821ACOVER, COMBINATION METER, NO.1

main83821-60D70i200911-201206

9007600034

main90076-00034

9007600038

main90076-00038

9015950311

main90159-50311

9046710203

main90467-10203

7 parts on this diagram · 2 diagrams in section

METER for Toyota LEXUS GX400/460

This section contains 7 genuine Toyota parts for the METER system of the Toyota LEXUS GX400/460. Key components include: METER ASSY, COMBINATION, GLASS, COMBINATION METER, COVER, COMBINATION METER, NO.1.
