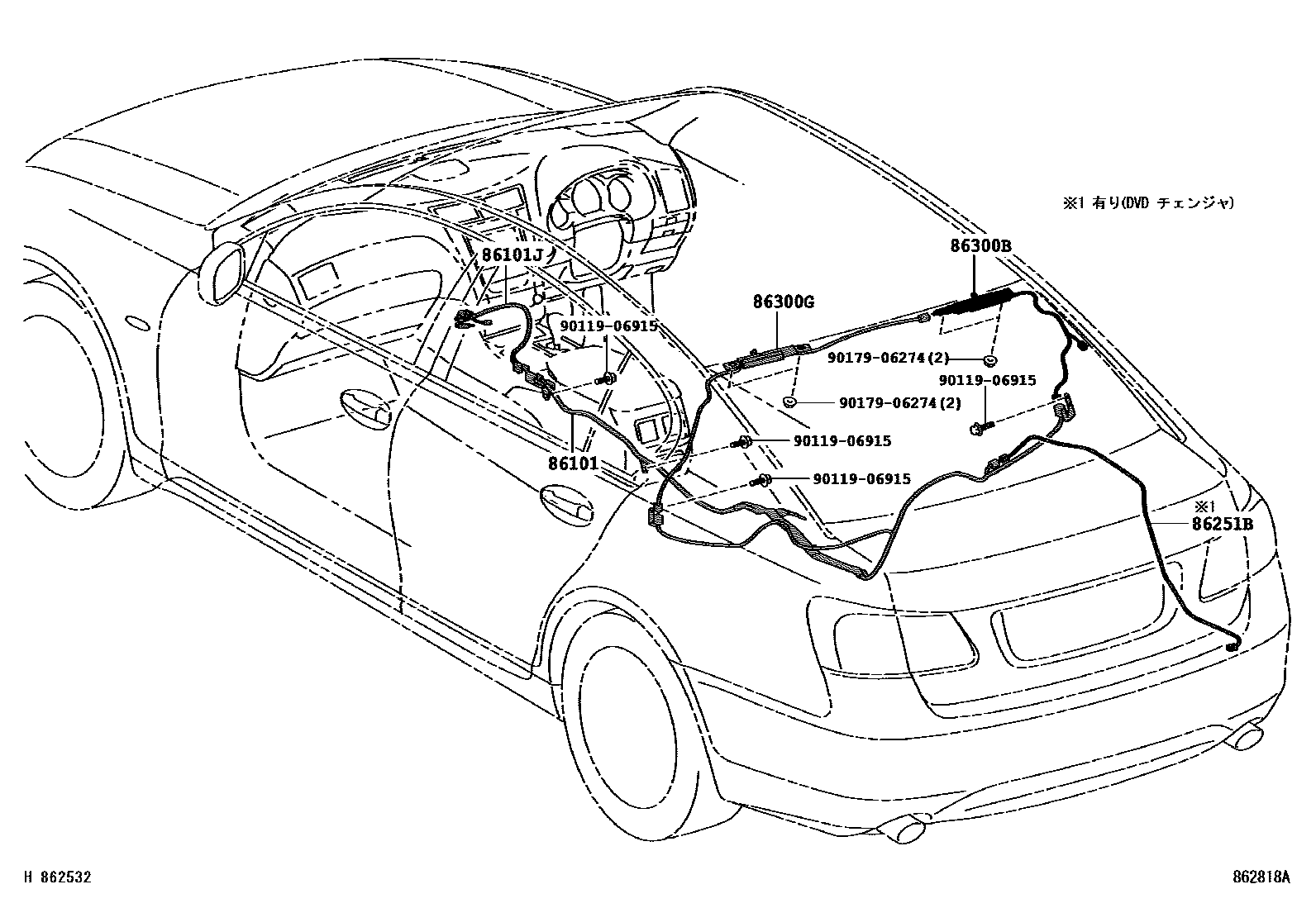

Toyota LEXUS GS450H — ANTENNA

86101CORD SUB-ASSY, ANTENNA

main86101-30E80i200909

main86101-30A60supersedes 86101-30A50i200602-200709

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-30B00supersedes 86101-30F10i200602-200709

86251BWIRING,AMPLIFIER

main86251-30030i200602-200709

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-30A40i200602-200709

main86300-30B70i200909

86300GANTENNA ASSY, TELEVISION AMPLIFIER

main86300-30A50i200602-200709

9011906915

main90119-06915

9017906274

main90179-06274

7 parts on this diagram · 2 diagrams in section

ANTENNA for Toyota LEXUS GS450H

This section contains 14 genuine Toyota parts for the ANTENNA system of the Toyota LEXUS GS450H. Key components include: ANTENNA ASSY, TELEVISION, CORD SUB-ASSY, ANTENNA, CORD SUB-ASSY, ANTENNA, NO.3.
