Toyota LEXUS GS450H — ANTENNA

86101CORD SUB-ASSY, ANTENNA

main86101-30A30i200709

CHINA SPEC

main86101-30A40supersedes 86101-30A30i200602-200709

AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR

main86101-30B40supersedes 86101-30B10i200602-200709

AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR

main86101-30E90i201007

CHINA SPEC&MOON ROOF-WITH

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-30F00i200909

CHINA SPEC&MOON ROOF-WITH&WITH(*EMV & HDD NAVIGATION SYSTEM); CHINA SPEC&WITH(*EMV & HDD NAVIGATION SYSTEM)

main86101-30A70i200709-200909

CHINA SPEC&MOON ROOF-WITH&WITH(*EMV & HDD NAVIGATION SYSTEM); CHINA SPEC&WITH(*EMV & HDD NAVIGATION SYSTEM)

main86101-30A80supersedes 86101-30A70i200709-200909

AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR

main86101-30E70i201007

CHINA SPEC&WITH(*EMV & HDD NAVIGATION SYSTEM)

86251BWIRING,AMPLIFIER

main86251-30030i200602-200709

AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-30A70i200709

main86300-30A60i200809

CHINA SPEC; HONG KONG SPEC

9011906915

main90119-06915

9017906274

main90179-06274

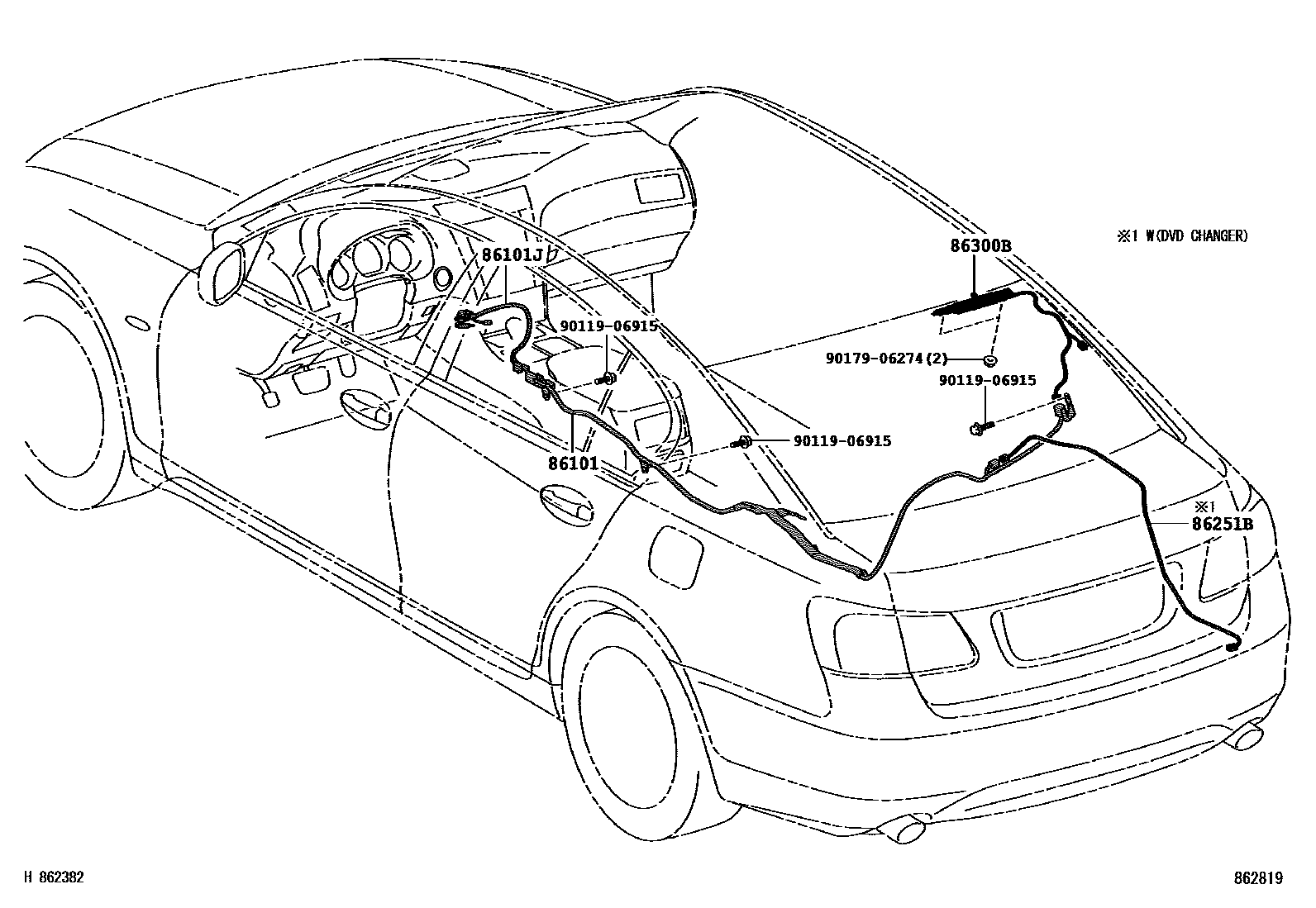

6 parts on this diagram · 1 diagram in section

ANTENNA for Toyota LEXUS GS450H

This section contains 6 genuine Toyota parts for the ANTENNA system of the Toyota LEXUS GS450H. Key components include: CORD SUB-ASSY, ANTENNA, CORD SUB-ASSY, ANTENNA, NO.2, WIRING,AMPLIFIER, ANTENNA ASSY, AMPLIFIER, NO.1.
