Toyota LEXUS GS300 — PARTIAL ENGINE ASSEMBLY

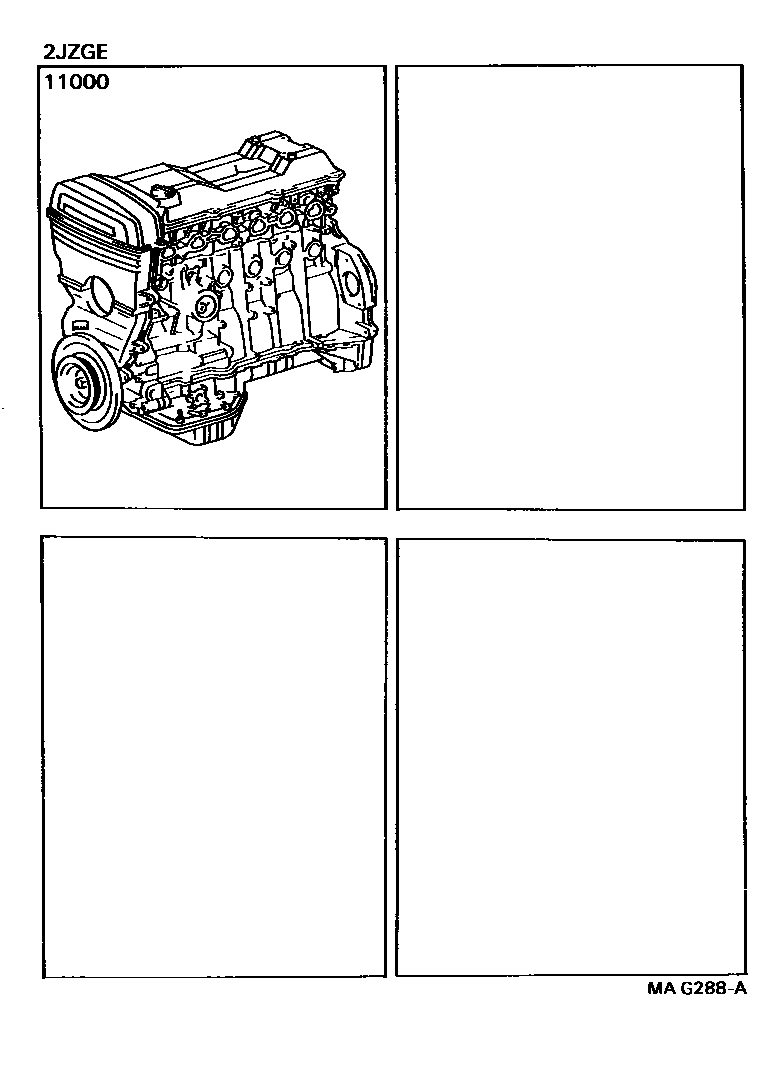

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-46100i199308-199508
sub19000-46102
sub90402-16015
sub90430-16012
main19000-46160i199303-199604
main19000-46162i199604-199708
sub19000-46163
sub90402-16015
sub90430-16012
main19000-46210i199508-199604
main19000-46211i199604-199708
sub19000-46212
sub90402-16015
sub90430-16012

1 parts on this diagram · 1 diagram in section
