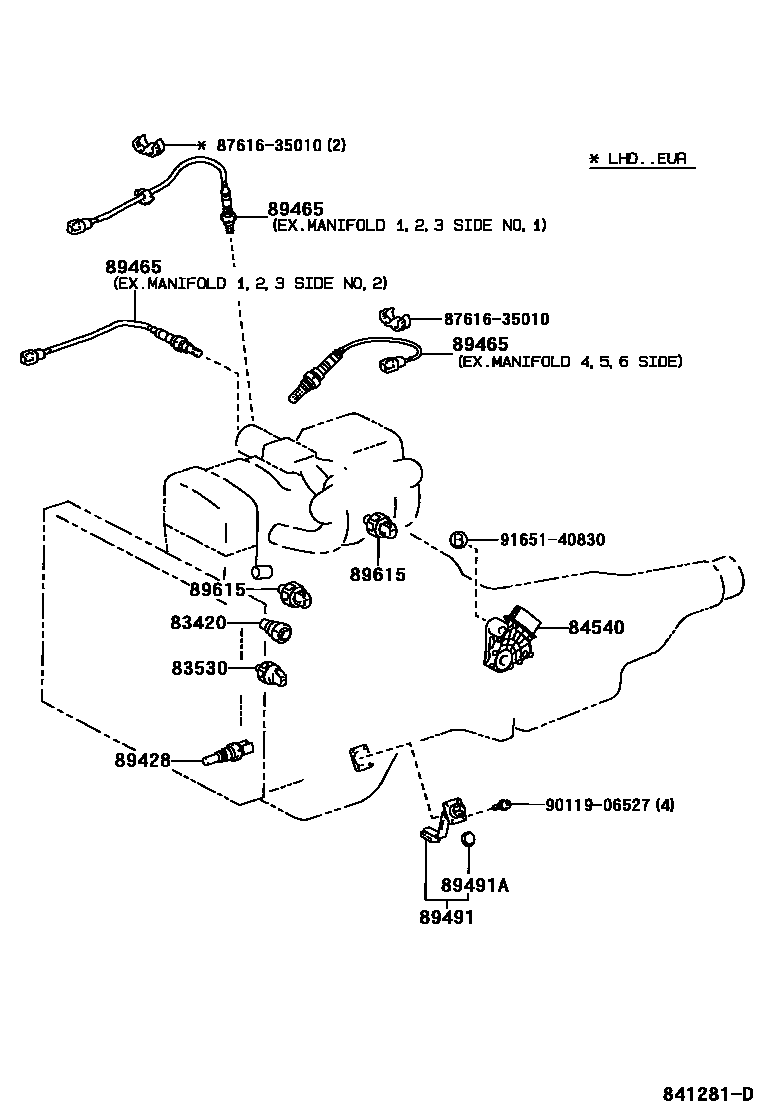

Toyota LEXUS GS300/430 — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE ROOM 0004 1ENGINE ROOM 0005 1COWL 0006 1COWL 0007 1INSTRUMENT PANEL 0008 1INSTRUMENT PANEL 0009 1IGNITION & COMBINATION SWITCH0010 1IGNITION & COMBINATION SWITCH0011 1IGNITION & COMBINATION SWITCH0012 1DOOR,ROOF,FLOOR,SEAT & LUGGAG

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-30020iJZS160199708

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iJZS160199802-200501

DENSO

main83530-30090iJZS160199708-199712

YAZAKI

main83530-60020iJZS160199712-200501

YAZAKI

84540SWITCH ASSY, NEUTRAL START

main84540-30270iJZS160199708-199908

main84540-30320iJZS160,UZS161199908-200501

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-33010iJZS160,UZS161199708

89465SENSOR, OXYGEN

main89465-30430iJZS160..ARL,EUR199708-200501

EX MANIFOLD 1,2,3SIDE,NO.1

main89465-30440iJZS160..LHD..EUR199708-200007

EX MANIFOLD 1,2,3SIDE,NO.2

main89465-30450iJZS160..ARL,EUR199708-200007

EXHAUST PIPE

main89465-30460iJZS160..RHD199708-200007

EX MANIFOLD 1,2,3SIDE,NO.2

main89465-30470iJZS160..GCC200107-200501

EX MANIFOLD 4,5,6SIDE

main89465-30480iJZS160..LHD..EUR200007-200501

EX MANIFOLD 1,2,3SIDE,NO.2

main89465-30490iJZS160..ARL,EUR200007-200501

EXHAUST PIPE

main89465-30630×2iUZS161200007-200501

REAR

main89465-30660iJZS160..RHD200007-200501

EX MANIFOLD 1,2,3SIDE,NO.2

main89465-50120iUZS161200007-200501

FRONT LH

main89465-50130iUZS161200007-200501

FRONT RH

89491SENSOR, ENGINE OIL LEVEL

main89491-30010iJZS160199708

main89491-30050iUZS161200007

89491AGASKET, ENGINE OIL LEVEL SENSOR

main90430-27001iJZS160,UZS161199708

89615SENSOR, KNOCK CONTROL

main89615-12040×2iJZS160199708-199908

MATSUSHITA

main89615-12050×2iJZS160199708-199908

DENSO

main89615-12090×2iJZS160199908-200501

main89615-30080×2iUZS161200007-200501

8761635010CLAMP, COOLING UNIT CASE

main87616-35010

9011906527

main90119-06527

9165140830

main91651-40830

11 parts on this diagram · 12 diagrams in section
