Toyota LEXUS GS300/430 — CENTER STOP LAMP

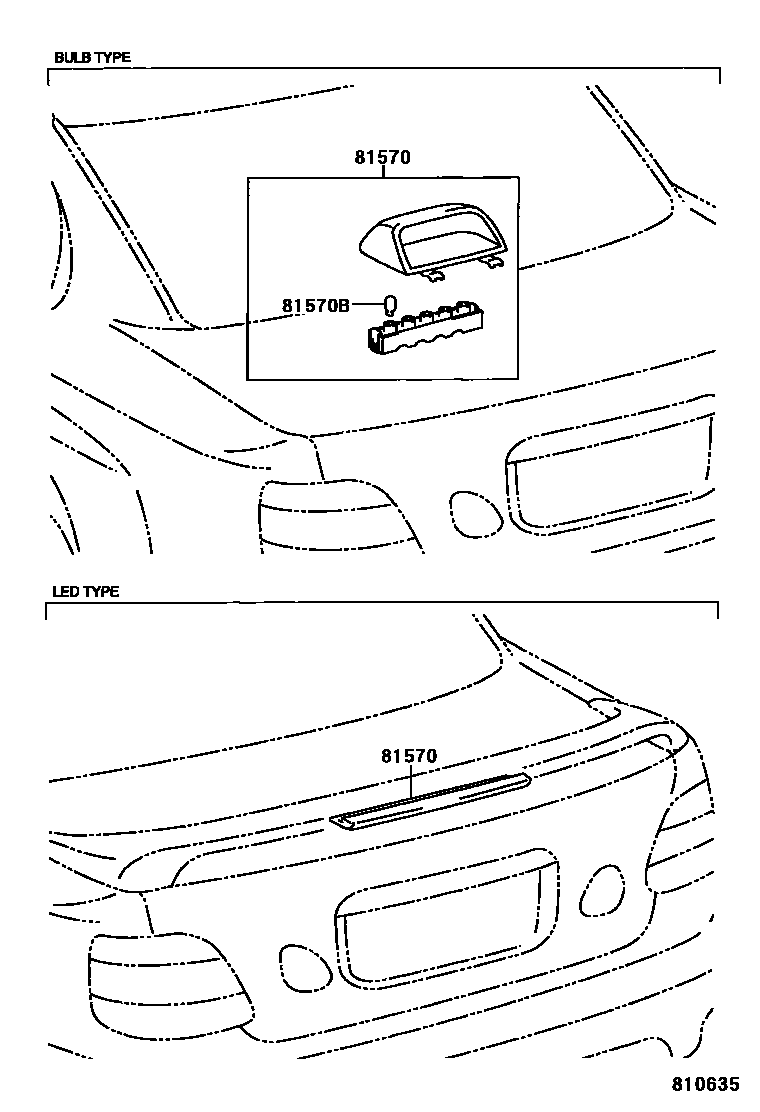

81570LAMP ASSY, CENTER STOP
W(HIGH MOUNT STOP LAMP BULB TYPE),IVORY,TRIM0#
W(HIGH MOUNT STOP LAMP BULB TYPE),MD.CHARCOAL,TRIM1#
W(HIGH MOUNT STOP LAMP BULB TYPE),BLACK,TRIM2#
W(HIGH MOUNT STOP LAMP LED TYPE),SU.WHITE PM,051
W(HIGH MOUNT STOP LAMP LED TYPE),WHITE PEARL CS.,062
W(HIGH MOUNT STOP LAMP LED TYPE),IVORY PEARL CS.,066
W(HIGH MOUNT STOP LAMP LED TYPE),SILVER ME,199
W(HIGH MOUNT STOP LAMP LED TYPE),SILVER ME.,1C0
W(HIGH MOUNT STOP LAMP LED TYPE),BLACK,202
W(HIGH MOUNT STOP LAMP LED TYPE),RED MC.,3N1
W(HIGH MOUNT STOP LAMP LED TYPE),BORDEAUX MC.,3P2
W(HIGH MOUNT STOP LAMP LED TYPE),BEIGE SF.,4P2
W(HIGH MOUNT STOP LAMP LED TYPE),BEIGE ME.,4P7
W(HIGH MOUNT STOP LAMP LED TYPE),DK. GREEN MC.,6Q7
W(HIGH MOUNT STOP LAMP LED TYPE),GREEN M.M.,6S5
W(HIGH MOUNT STOP LAMP LED TYPE),DARK GREEN MC.,6S6
W(HIGH MOUNT STOP LAMP LED TYPE),DK.BLUE MC.,8L4
W(HIGH MOUNT STOP LAMP LED TYPE),BLUE MC.,8M6
W(HIGH MOUNT STOP LAMP LED TYPE),DARK BLUE MC.,8P8
W(HIGH MOUNT STOP LAMP LED TYPE),BLUE M.M.,8P9
81570BBULB (FOR CENTER STOP LAMP)
12V 5W
2 parts on this diagram · 1 diagram in section
CENTER STOP LAMP for Toyota LEXUS GS300/430
This section contains 2 genuine Toyota parts for the CENTER STOP LAMP system of the Toyota LEXUS GS300/430. Key components include: LAMP ASSY, CENTER STOP, BULB (FOR CENTER STOP LAMP).
