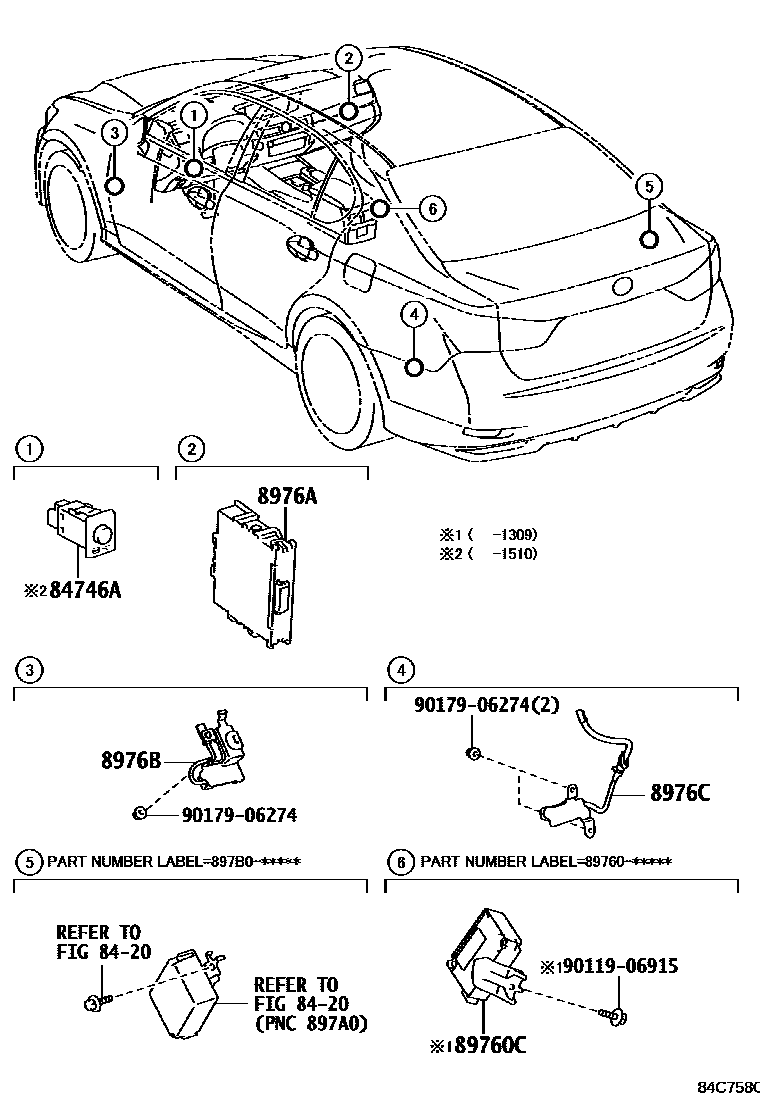

Toyota LEXUS GS SERIES — TIRE PRESSURE WARNING SYSTEM

8420

84746ASWITCH, TIRE PRESSURE WARNING, NO.1

main84746-50010iGRL1#,GWL10201112-201510

89760CRECEIVER ASSY, TIRE PRESSURE MONITOR

main89760-30060iGRL11201201-201301

sub89760-30061

main89760-30061iGRL11201302-201309

KOREA SPEC

8976ADRIVER, TIRE PRESSURE MONITOR INITIATOR

main8976A-30030iGRL10,15,GWL10201309-201505

sub8976A-33030

main8976A-33010iGRL10,15,GWL10201112-201309

sub8976A-33030

main8976A-33030iGRL10,15,GWL10201506-201811

sub8976A-33032

main8976A-33032iARL10,GRL1#201812-202007

sub8976A-33033

8976BINITIATOR, TIRE PRESSURE MONITOR FRONT

main8976B-30010iGRL10201112-201409

sub8976B-30011

main8976B-30011iARL10,GRL1#,GWL10201410-202007

8976CINITIATOR, TIRE PRESSURE MONITOR REAR

main8976C-24010iGRL10,15,GWL10201403-201409

sub8976C-24011

main8976C-24011iGRL10,15,GWL10201410-202007

main8976C-30010iGRL10..8FC;GRL15,GWL10201112-201402

sub8976C-24010

9011906915

main90119-06915

9017906274

main90179-06274

8 parts on this diagram · 1 diagram in section
