Toyota LEXUS GS SERIES — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE & TRANSMISSION 0005 1ENGINE ROOM 0006 1ENGINE ROOM 0007 1ENGINE ROOM 0008 1ENGINE ROOM RELAY BLOCK 0009 1ENGINE ROOM RELAY BLOCK 0010 1ENGINE ROOM RELAY BLOCK 0011 1ENGINE ROOM RELAY BLOCK 0012 1COWL 0013 1INSTRUMENT PANEL 1/2 0014 1INSTRUMENT PANEL 1/2 0015 1INSTRUMENT PANEL 2/2 0016 1STEERING 0017 1STEERING 0018 1SEAT 0019 1DOOR & ROOF 0020 1FLOOR & LUGGAGE

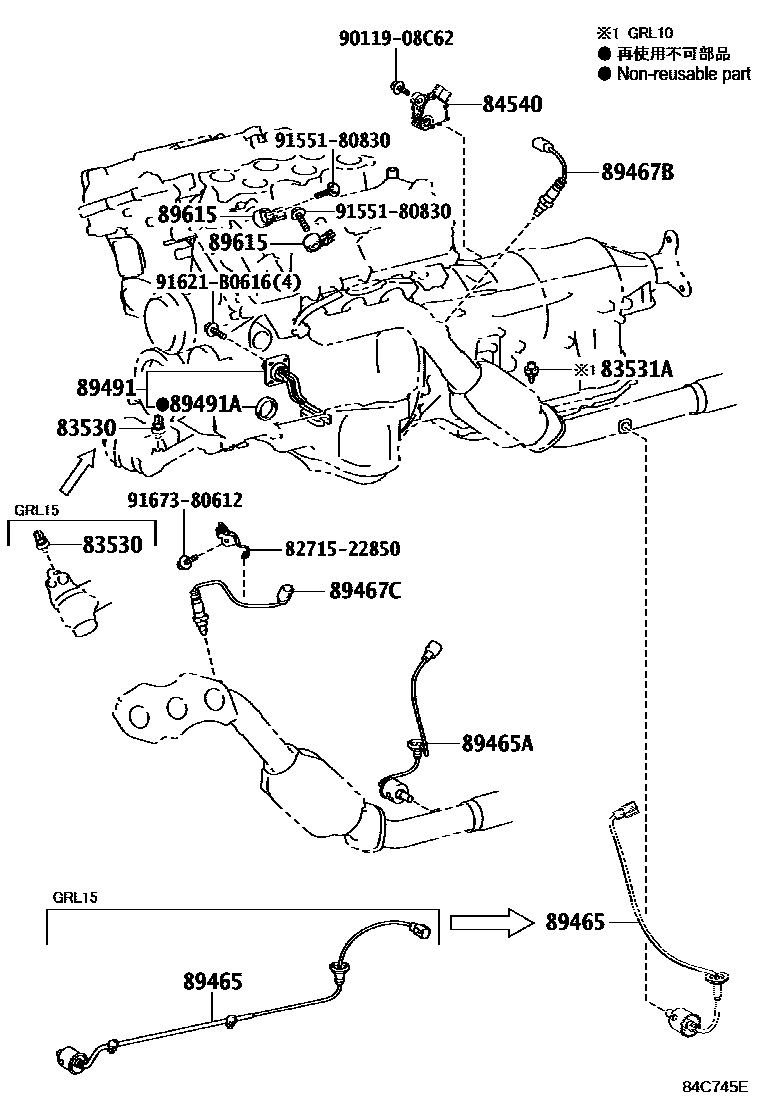

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iGRL10..8FC;GRL11,15,GWL10201112-202007

83531ASWITCH, OIL PRESSURE

main83531-50010iGRL10201309-202007

84540SWITCH ASSY, NEUTRAL START

main84540-04010iGRL11,15201309-202007

(L)

main84540-71010iARL10,GRL12201309-202007

(J)

main84540-71010iGRL11,15201112-201510

89465SENSOR, OXYGEN

main89465-30730iGRL10,11201112-201309

main89465-30840iGRL15201112-201309

main89465-30A70iGRL15201309-201510

main89465-30A80iGWL10201203-201809

main89465-30B10iGRL16201510-202007

main89465-30B40iGRL12201510-202007

main89465-53270iGRL11201309-201510

main89465-53290iGRL10201309-201510

main89465-53310iARL10201510-201908

89465ASENSOR, OXYGEN NO.2

main89465-30730iGRL1#201112-201309

main89465-30A60iGWL10201203-201309

main89465-30B50iGRL1#201510-202007

main89465-53280iGRL11201309-201510

main89465-53300iGRL10,15,GWL10201309-201809

89467BSENSOR, AIR FUEL RATIO

main89467-22030iGRL10201112-201510

main89467-22040iGRL15201112-201309

main89467-30050iGWL10201203-201409

main89467-30070iGWL10201409-201809

main89467-30080iGRL1#201510-202007

main89467-53060iGRL10201309-201510

main89467-53070iGRL15201309-201510

main89467-53090iARL10201510-201908

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-22040iGWL10201203-201409

main89467-22050iGRL10,15201112-201510

main89467-30090iGRL1#201510-202007

main89467-53070iGWL10201409-201809

main89467-53080iGRL10,15201309-201510

89491SENSOR, ENGINE OIL LEVEL

main89491-30061iGWL10201112-201809

main89491-30071iGRL15201112-201510

main89491-30080iARL10201510-201908

main89491-30100iGRL1#201510-201808

sub89491-30101

main89491-30101iGRL1#201809-202007

89491AGASKET, ENGINE OIL LEVEL SENSOR

main89493-60010iGRL10201112-201908

89615SENSOR, KNOCK CONTROL

main89615-20090iGRL10201112-202007

8271522850BRACKET,WIRING HARNESS CLAMP

main82715-22850

9011908C62

main90119-08C62

9155180830

main91551-80830

91621B0616

main91621-B0616

9167380612

main91673-80612

15 parts on this diagram · 20 diagrams in section
