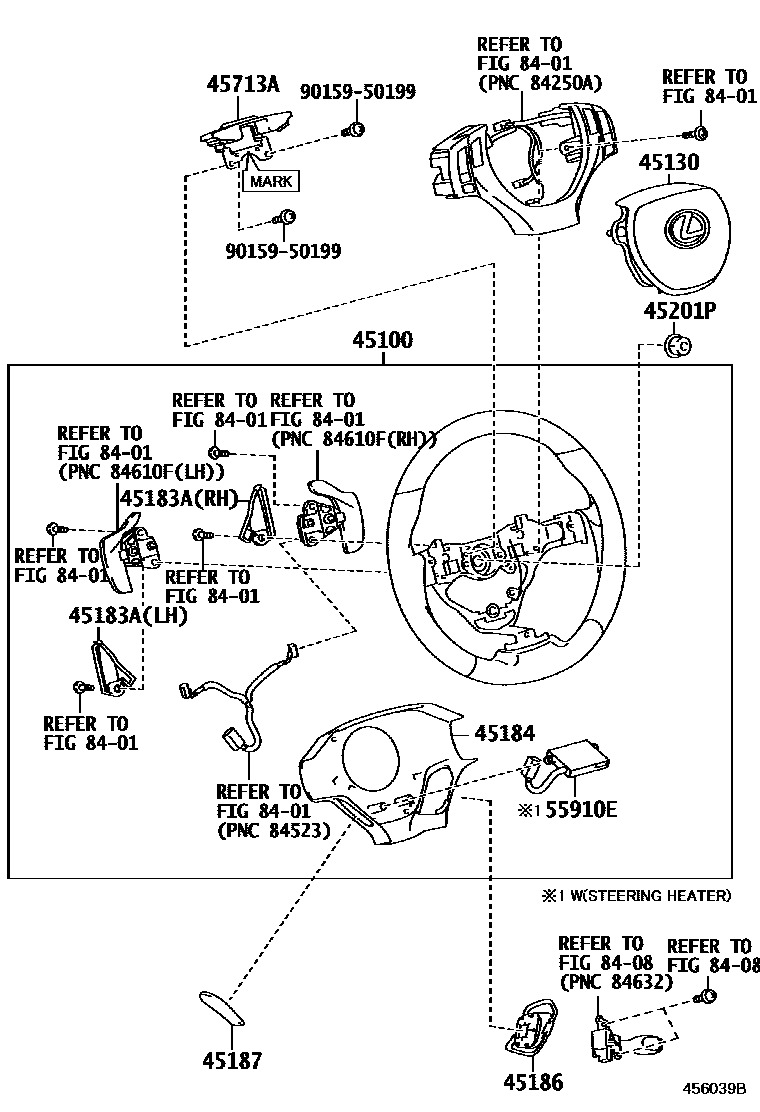

Toyota LEXUS GS SERIES — STEERING WHEEL
45100WHEEL ASSY, STEERING
3-SPOKE,LEATHER,BLACK,TRIM5#
3-SPOKE,LEATHER,BLACK,TRIM0#,5#
3-SPOKE,LEATHER,LT.GRAY NO.094,TRIM1#,2#,4#
3-SPOKE,LEATHER,BLACK & LT.GRAY,TRIM1#,2#,5#
3-SPOKE,LEATHER,STEERING WHEEL-LEATHER, WITH(STEERING HEATER),BLACK & LT.GRAY,TRIM1#,2#,5#
sub45100-30E41
3-SPOKE,LEATHER,PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-LEATHER, WITH(STEERING HEATER),BLACK & LT.GRAY,TRIM1#,2#,5#
sub45100-30E41
3-SPOKE,LEATHER,BLACK & LT.GRAY,TRIM1#,2#,5#
45130BUTTON ASSY, HORN
BLACK,TRIM0#,1#,2#,3#,4#,5#
BLACK,TRIM1#,2#,3#,4#,5#
BLACK,TRIM1#,2#,3#,5#
BLACK,TRIM1#,2#,3#,5#
45183ACOVER, STEERING WHEEL BOSS, LOWER NO.1
BLACK,TRIM1#,2#,4#,5#,RH
BLACK,TRIM1#,2#,5#,RH
BLACK,TRIM1#,2#,4#,5#,LH
BLACK,TRIM1#,2#,5#,LH
KOREA SPEC&STEERING WHEEL-WOOD & LEATHER,BLACK,TRIM1#,2#,6#,RH
PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-LEATHER(DIMPLED),BLACK,TRIM2#,3#,5#,RH
PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-LEATHER(DIMPLED), WITH(STEERING HEATER),BLACK,TRIM2#,3#,5#,RH
BLACK,TRIM1#,2#,5#,RH
KOREA SPEC&STEERING WHEEL-LEATHER(DIMPLED),BLACK,TRIM2#,3#,5#,RH
KOREA SPEC&STEERING WHEEL-LEATHER(DIMPLED), WITH(STEERING HEATER),BLACK,TRIM2#,3#,5#,RH
KOREA SPEC&STEERING WHEEL-LEATHER(DIMPLED), WITH(STEERING HEATER),BLACK,TRIM2#,3#,5#,LH
BLACK,TRIM1#,2#,5#,LH
KOREA SPEC&STEERING WHEEL-LEATHER(DIMPLED),BLACK,TRIM2#,3#,5#,LH
KOREA SPEC&STEERING WHEEL-WOOD & LEATHER,BLACK,TRIM1#,2#,6#,LH
PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-LEATHER(DIMPLED),BLACK,TRIM2#,3#,5#,LH
PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-LEATHER(DIMPLED), WITH(STEERING HEATER),BLACK,TRIM2#,3#,5#,LH
45184COVER, STEERING WHEEL BOSS, LOWER
BLACK,TRIM0#,1#,2#,4#,5#
BLACK,TRIM1#,2#,4#,5#
STEERING WHEEL-LEATHER, WITH(STEERING HEATER),BLACK,TRIM1#,2#,4#,5#
BLACK,TRIM1#,2#,5#
45186COVER, STEERING WHEEL, LOWER NO.2
BLACK,TRIM0#,1#,2#,3#,4#,5#
BLACK,TRIM1#,2#,3#,4#,5#
BLACK,TRIM1#,2#,3#,5#
BLACK,TRIM1#,2#,3#,5#,6#
45187COVER, STEERING WHEEL, LOWER NO.3
BLACK,TRIM0#,1#,2#,3#,4#,5#
BLACK,TRIM1#,2#,3#,4#,5#
BLACK,TRIM1#,2#,3#,5#
BLACK,TRIM1#,2#,3#,5#,6#
45201PNUT, STEERING WHEEL SET
45713ADAMPER, STEERING SHAKE
PAINTED=LIGHT BLUE
PAINTED=WHITE
55910ECONTROL ASSY, STEERING WHEEL HEATER
8401
8408
9015950199
main90159-50199
12 parts on this diagram · 2 diagrams in section
