Toyota LEXUS GS SERIES — REAR STEERING GEAR (4WS)

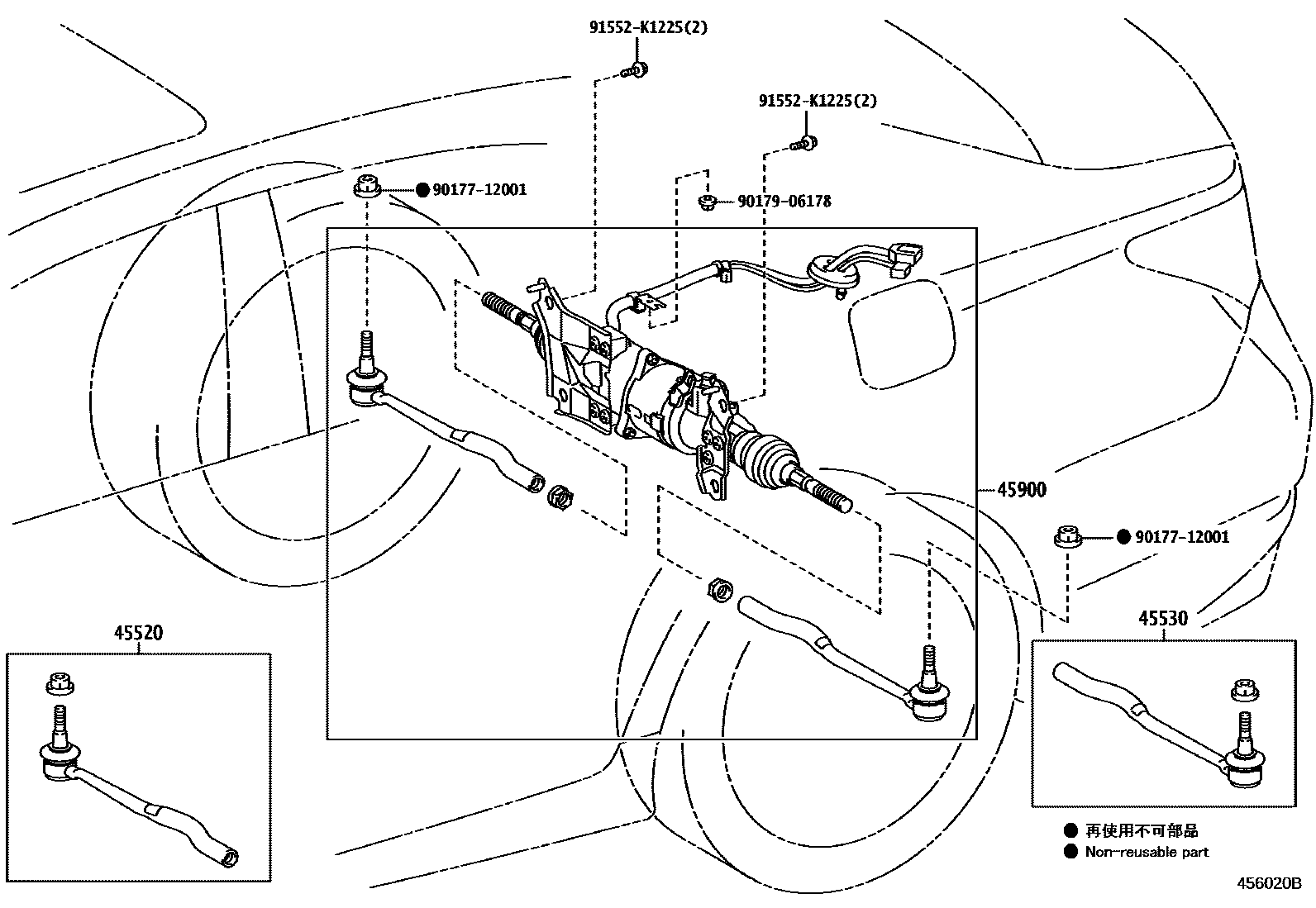

Parts diagram

45520ROD ASSY, REAR STEERING TIE, RH

main45520-39025

45530ROD ASSY, REAR STEERING TIE, LH

main45530-39025

45900LINK ASSY, REAR STEERING

main45900-30070

9017712001

main90177-12001

9017906178

main90179-06178

91552K1225

main91552-K1225

6 parts on this diagram · 1 diagram in section
