Toyota LEXUS GS SERIES — REAR SEAT & SEAT TRACK

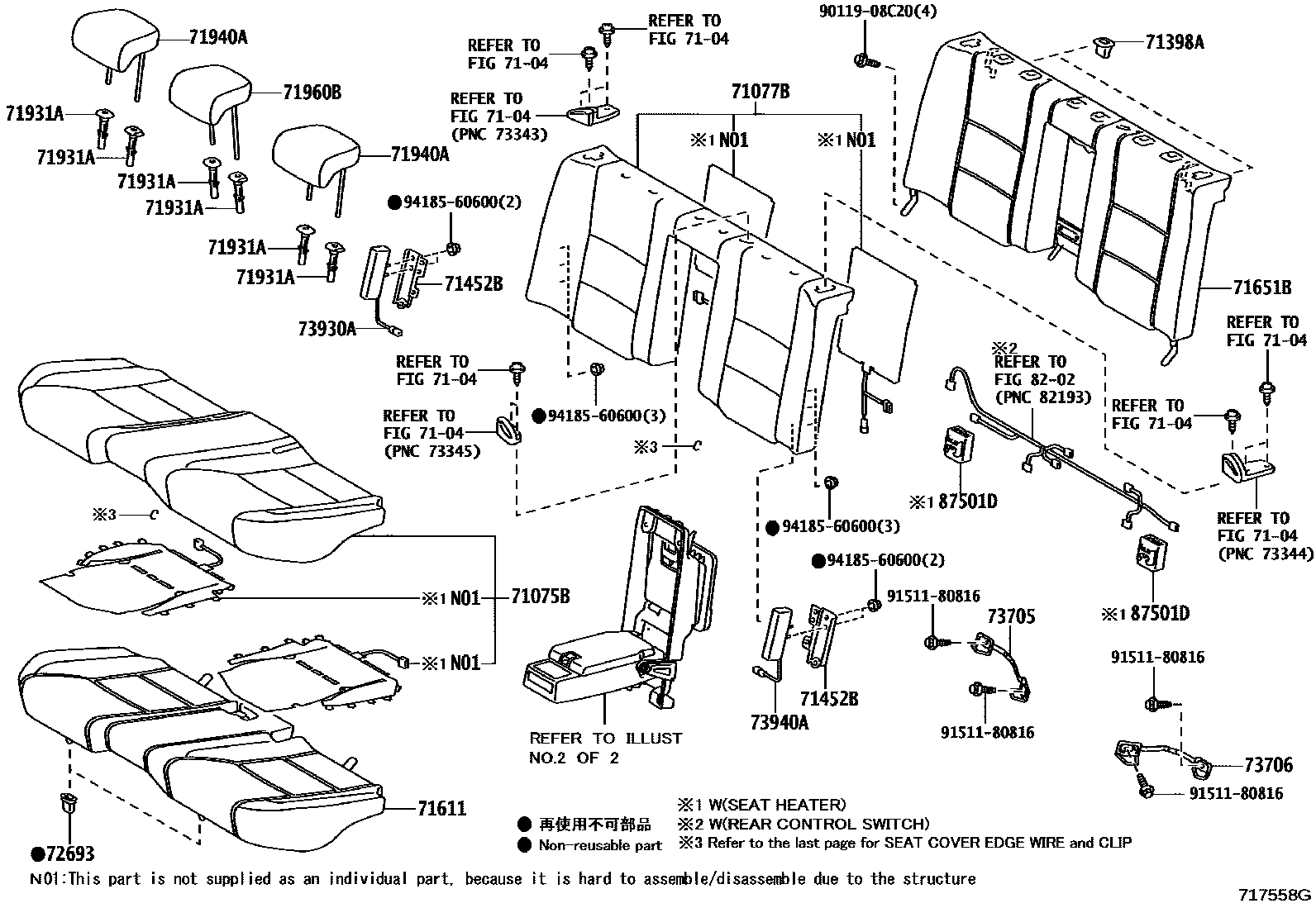

Parts diagram
7104
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
main71075-30E50-20i201409-201510
BLACK,TRIM2#
sub71075-30E50
main71075-30E50-B3i201112-201409
LT.GRAY,TRIM1#
sub71075-30E50
main71075-30E50-B4i201409-201510
LT.GRAY,TRIM1#
sub71075-30E50
main71075-30E50-C8i201112-201409
BLACK,TRIM2#
sub71075-30E50
main71075-30E50-E3i201112-201409
SADDLE TAN,TRIM4#
sub71075-30E50
main71075-30E50-E4i201409-201510
SADDLE TAN,TRIM4#
sub71075-30E50
main71075-30E50-F3i201112-201409
TOPAZ BROWM,TRIM5#
sub71075-30E50
main71075-30E50-F6i201409-201510
TOPAZ BROWM/CHOCO.BROWN,TRIM5#
sub71075-30E50
main71075-30G80-B3i201510-201709
CHATEAU,TRIM1#
main71075-30G80-C6i201510-201709
BLACK,TRIM2#
main71075-30G80-F6i201510-201709
TOPAZ BROWN,TRIM5#
main71075-30J60-B0i201510-201709
CHATEAU,TRIM1#
sub71075-30J62
main71075-30J60-B0i201510-201709
PREMIUM PACKAGE&SEAT HEATER-WITH(FRONT SEAT ONLY),CHATEAU,TRIM1#
sub71075-30J62
main71075-30J60-C0i201510-201709
PREMIUM PACKAGE&SEAT HEATER-WITH(FRONT SEAT ONLY),BLACK,TRIM2#
sub71075-30J62
main71075-30J60-C0i201510-201709
BLACK,TRIM2#
sub71075-30J62
main71075-30J60-F0i201510-201709
TOPAZ BROWM,TRIM5#
sub71075-30J62
main71075-30J60-F0i201510-201709
PREMIUM PACKAGE&SEAT HEATER-WITH(FRONT SEAT ONLY),TOPAZ BROWM,TRIM5#
sub71075-30J62
main71075-30J61-B2i201709-202007
CHATEAU,TRIM1#
main71075-30J61-B2i201709-202007
PREMIUM PACKAGE&SEAT HEATER-WITH(FRONT SEAT ONLY)&VENTILATION SEAT-WITH,CHATEAU,TRIM1#
main71075-30J61-B2i201709-202007
PREMIUM PACKAGE&SEAT HEATER-WITH(FRONT SEAT ONLY),CHATEAU,TRIM1#
main71075-30J61-C2i201709-202007
BLACK,TRIM2#
main71075-30J61-C2i201709-202007
PREMIUM PACKAGE&SEAT HEATER-WITH(FRONT SEAT ONLY),BLACK,TRIM2#
main71075-30J61-C2i201709-202007
PREMIUM PACKAGE&SEAT HEATER-WITH(FRONT SEAT ONLY)&VENTILATION SEAT-WITH,BLACK,TRIM2#
main71075-30J61-F2i201709-202007
PREMIUM PACKAGE&SEAT HEATER-WITH(FRONT SEAT ONLY),TOPAZ BROWM,TRIM5#
main71075-30J61-F2i201709-202007
TOPAZ BROWM,TRIM5#
main71075-30J61-F2i201709-202007
PREMIUM PACKAGE&SEAT HEATER-WITH(FRONT SEAT ONLY)&VENTILATION SEAT-WITH,TOPAZ BROWM,TRIM5#
71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)
main71077-30J10-B3i201112-201409
LT.GRAY,TRIM1#
sub71077-30J10
main71077-30J10-B4i201409-201510
LT.GRAY,TRIM1#
sub71077-30J10
main71077-30J10-C7i201112-201409
BLACK,TRIM2#
sub71077-30J10
main71077-30J10-C9i201409-201510
BLACK,TRIM2#
sub71077-30J10
main71077-30J10-E2i201112-201409
SADDLE TAN,TRIM4#
sub71077-30J10
main71077-30J10-E3i201409-201510
SADDLE TAN,TRIM4#
sub71077-30J10
main71077-30J10-F1i201112-201409
TOPAZ BROWM,TRIM5#
sub71077-30J10
main71077-30J10-F5i201409-201510
TOPAZ BROWM/CHOCO.BROWN,TRIM5#
sub71077-30J10
main71077-30L20-B2i201510-201709
PREMIUM PACKAGE&SEAT HEATER-WITH(FRONT SEAT ONLY),CHATEAU,TRIM1#
sub71077-30L21
main71077-30L20-B2i201510-201809
CHATEAU,TRIM1#
sub71077-30L21
main71077-30L20-C2i201510-201809
BLACK,TRIM2#
sub71077-30L21
main71077-30L20-C2i201510-201709
PREMIUM PACKAGE&SEAT HEATER-WITH(FRONT SEAT ONLY),BLACK,TRIM2#
sub71077-30L21
main71077-30L20-F2i201510-201709
PREMIUM PACKAGE&SEAT HEATER-WITH(FRONT SEAT ONLY),TOPAZ BROWM,TRIM5#
sub71077-30L21
main71077-30L20-F2i201510-201809
TOPAZ BROWM,TRIM5#
sub71077-30L21
main71077-30L70-B4i201510-201709
CHATEAU,TRIM1#
sub71077-30L71
main71077-30L70-C6i201510-201709
BLACK,TRIM2#
sub71077-30L71
main71077-30L70-F6i201510-201709
TOPAZ BROWN,TRIM5#
sub71077-30L71
71398AHOLDER, REAR SEATBACK
main71398-30010i201112-202007
71452BBRACKET, REAR SEATBACK
main71452-30070i201609-201709
SEAT COVER MATERIAL-SYNTHETIC LEATHER,RH
main71452-30070i201609-202007
RH
main71452-30090i201609-201709
SEAT COVER MATERIAL-SYNTHETIC LEATHER,LH
main71452-30090i201609-202007
LH
71611PAD, REAR SEAT CUSHION
main71503-30260i201112-201510
71651BPAD, REAR SEATBACK(FOR BENCH TYPE)
main71507-30260i201112-201510
71931ASUPPORT, REAR SEAT HEADREST
main71930-52030-B5i201112-201510
W(LOCK)&W(BUTTON),LT.GRAY,TRIM1#
sub71930-52030
main71930-52030-C0i201112-201510
W(LOCK)&W(BUTTON),VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-18WAY,BLACK,TRIM2#,4#,5#
sub71930-52030
main71930-52030-C0i201112-201510
W(LOCK)&W(BUTTON),VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY,BLACK,TRIM2#,4#,5#
sub71930-52030
main71930-52030-C0i201112-201510
W(LOCK)&W(BUTTON),BLACK,TRIM2#,3#,4#,5#
sub71930-52030
main71930-52030-C0i201510-201709
W(LOCK)&W(BUTTON),VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-DRIVER:18WAY/PASSENGER:18WAY,BLACK,TRIM1#,2#,6#
sub71930-52030
main71930-52030-C0i201510
W(LOCK)&W(BUTTON),BLACK,TRIM1#,2#,3#,5#
sub71930-52030
main71930-52030-C0i201510-201709
W(LOCK)&W(BUTTON),VERSION L&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-DRIVER:18WAY/PASSENGER:18WAY&VENTILATION SEAT-WITH,BLACK,TRIM1#,2#,6#
sub71930-52030
main71930-52030-C0i201510-201709
W(LOCK)&W(BUTTON),VERSION L&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:18WAY/PASSENGER:18WAY&VENTILATION SEAT-WITH,BLACK,TRIM1#,2#,6#
sub71930-52030
main71930-52030-C0i201510-201709
W(LOCK)&W(BUTTON),VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-DRIVER:18WAY/PASSENGER:18WAY,BLACK,TRIM
sub71930-52030
main71930-52030-C0i201510-201709
W(LOCK)&W(BUTTON),BLACK,TRIM1#,2#,5#
sub71930-52030
main71931-42020-B2i201112-201510
W(LOCK)&W/O(BUTTON),LT.GRAY,TRIM1#
sub71931-42020
main71931-42020-C0i201510-201709
W(LOCK)&W/O(BUTTON),VERSION L&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-DRIVER:18WAY/PASSENGER:18WAY&VENTILATION SEAT-WITH,BLACK,TRIM1#,2#,6#
sub71931-42020
main71931-42020-C0i201112-201510
W(LOCK)&W/O(BUTTON),BLACK,TRIM2#,3#,4#,5#
sub71931-42020
main71931-42020-C0i201112-201510
W(LOCK)&W/O(BUTTON),VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-18WAY,BLACK,TRIM2#,4#,5#
sub71931-42020
main71931-42020-C0i201112-201510
W(LOCK)&W/O(BUTTON),VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY,BLACK,TRIM2#,4#,5#
sub71931-42020
main71931-42020-C0i201510-201709
W(LOCK)&W/O(BUTTON),BLACK,TRIM1#,2#,5#
sub71931-42020
main71931-42020-C0i201510-201709
W(LOCK)&W/O(BUTTON),VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-DRIVER:18WAY/PASSENGER:18WAY,BLACK,TR
sub71931-42020
main71931-42020-C0i201510-201709
W(LOCK)&W/O(BUTTON),VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEATADJUSTER-DRIVER:18WAY/PASSENGER:18WAY,BLACK,TRIM1#,2#,6#
sub71931-42020
main71931-42020-C0i201510-201709
W(LOCK)&W/O(BUTTON),VERSION L&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:18WAY/PASSENGER:18WAY&VENTILATION SEAT-WITH,BLACK,TRIM1#,2#,6#
sub71931-42020
main71931-42020-C0i201510
W(LOCK)&W/O(BUTTON),BLACK,TRIM1#,2#,3#,5#
sub71931-42020
71940AHEADREST ASSY, REAR SEAT
main71940-30C70-B2i201112-201409
LT.GRAY,TRIM1#
sub71940-30C70
sub71940-30E10
main71940-30C70-B3i201409-201510
LT.GRAY,TRIM1#
sub71940-30C70
sub71940-30E10
main71940-30C70-C3i201112-201409
BLACK,TRIM2#
sub71940-30C70
sub71940-30E10
main71940-30C70-C5i201409-201510
BLACK/RED,TRIM33
sub71940-30C70
sub71940-30E10
main71940-30C70-C5i201409-201510
PREMIUM PACKAGE&SEAT HEATER-WITH(FRONT SEAT ONLY),BLACK/RED,TRIM33
sub71940-30C70
sub71940-30E10
main71940-30C70-C6i201409-201510
BLACK,TRIM2#
sub71940-30C70
sub71940-30E10
main71940-30C70-D1i201112-201409
GARNET,TRIM3#
sub71940-30C70
sub71940-30E10
main71940-30C70-D2i201409-201412
GARNET,TRIM30,31,32
sub71940-30C70
sub71940-30E10
main71940-30C70-D2i201409-201510
GARNET,TRIM3#
sub71940-30C70
sub71940-30E10
main71940-30C70-E2i201112-201409
SADDLE TAN,TRIM4#
sub71940-30C70
sub71940-30E10
main71940-30C70-E3i201409-201510
SADDLE TAN,TRIM4#
sub71940-30C70
sub71940-30E10
main71940-30C70-F1i201112-201409
TOPAZ BROWN,TRIM5#
sub71940-30C70
sub71940-30E10
main71940-30C70-F2i201409-201510
TOPAZ BROWN,TRIM5#
sub71940-30C70
sub71940-30E10
main71940-30D60-B2i201510-201602
CHATEAU,TRIM1#
sub71940-30F10
main71940-30D60-C3i201510-201602
BLACK,TRIM2#
sub71940-30F10
main71940-30D60-F3i201510-201602
TOPAZ BROWN,TRIM5#
sub71940-30F10
main71940-30E10-D0i201412-201510
KOREA SPEC&F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONTSEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,GARNET,TRIM30,31,32
main71940-30E10-D0i201412-201510
KOREA SPEC&SEAT HEATER-WITH(FRONT SEAT ONLY),GARNET,TRIM30,31,32
main71940-30E10-D0i201412-201510
PREMIUM PACKAGE&SEAT HEATER-WITH(FRONT SEAT ONLY),GARNET,TRIM30,31,32
main71940-30E10-D0i201412-201510
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,GARNET,TRIM30,31,32
main71940-30E10-D0i201412-201510
GARNET,TRIM30,31,32
main71940-30E50-B0i201510-202007
PREMIUM PACKAGE&SEAT HEATER-WITH(FRONT SEAT ONLY),CHATEAU,TRIM1#
sub71940-30E90
main71940-30E50-B0i201510-202007
F SPORT&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY&VENTILATION SEAT-WITH,CHATEAU,TRIM1#
sub71940-30E90
main71940-30E50-B0i201510-202007
CHATEAU,TRIM1#
sub71940-30E90
main71940-30E50-C0i201510-201602
F SPORT&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY&VENTILATION SEAT-WITH,BLACK,TRIM2#
sub71940-30E90
main71940-30E50-C0i201510-201602
BLACK,TRIM2#
sub71940-30E90
main71940-30E50-C0i201510-201602
KOREA SPEC&F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY&VENTILATION SEAT-WITH,BLACK,TRIM2#
sub71940-30E90
main71940-30E50-C0i201510-201602
KOREA SPEC&F SPORT&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY&VENTILATION SEAT-WITH,BLACK,TRIM2#
sub71940-30E90
main71940-30E50-C0i201510-201602
PREMIUM PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH)&VENTILATION SEAT-WITH,BLACK,TRIM2#
sub71940-30E90
main71940-30E50-C0i201510-201602
PREMIUM PACKAGE&SEAT HEATER-WITH(FRONT SEAT ONLY),BLACK,TRIM2#
sub71940-30E90
main71940-30E50-C0i201510-201602
PREMIUM PACKAGE&SEAT HEATER-WITH(FRONT SEAT ONLY)&VENTILATION SEAT-WITH,BLACK,TRIM2#
sub71940-30E90
main71940-30E50-C0i201510-201602
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY&VENTILATION SEAT-WITH,BLACK,TRIM2#
sub71940-30E90
main71940-30E50-D0i201510-201602
KOREA SPEC&F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY&VENTILATION SEAT-WITH,DK.ROSE,TRIM3#
sub71940-30E90
main71940-30E50-D0i201510-201602
KOREA SPEC&F SPORT&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY&VENTILATION SEAT-WITH,DK.ROSE,TRIM3#
sub71940-30E90
main71940-30E50-D0i201510-201602
PREMIUM PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH)&VENTILATION SEAT-WITH,DK.ROSE,TRIM3#
sub71940-30E90
main71940-30E50-D0i201510-201602
PREMIUM PACKAGE&SEAT HEATER-WITH(FRONT SEAT ONLY),DK.ROSE,TRIM3#
sub71940-30E90
main71940-30E50-D0i201510-201602
PREMIUM PACKAGE&SEAT HEATER-WITH(FRONT SEAT ONLY)&VENTILATION SEAT-WITH,DK.ROSE,TRIM3#
sub71940-30E90
main71940-30E50-D0i201510-201602
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY&VENTILATION SEAT-WITH,DK.ROSE,TRIM3#
sub71940-30E90
main71940-30E50-D0i201510-201602
F SPORT&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY&VENTILATION SEAT-WITH,DK.ROSE,TRIM3#
sub71940-30E90
main71940-30E50-D0i201510-201602
DK.ROSE,TRIM3#
sub71940-30E90
main71940-30E50-F0i201510-201602
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY&VENTILATION SEAT-WITH,TOPAZ BROWN,TRIM5#
sub71940-30E90
main71940-30E50-F0i201510-201602
TOPAZ BROWN,TRIM5#
sub71940-30E90
main71940-30E50-F0i201510-201602
KOREA SPEC&F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY&VENTILATION SEAT-WITH,TOPAZ BROWN,TRIM5#
sub71940-30E90
main71940-30E50-F0i201510-201602
KOREA SPEC&F SPORT&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY&VENTILATION SEAT-WITH,TOPAZ BROWN,TRIM5#
sub71940-30E90
main71940-30E50-F0i201510-201602
PREMIUM PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH)&VENTILATION SEAT-WITH,TOPAZ BROWN,TRIM5#
sub71940-30E90
main71940-30E50-F0i201510-201602
PREMIUM PACKAGE&SEAT HEATER-WITH(FRONT SEAT ONLY),TOPAZ BROWN,TRIM5#
sub71940-30E90
main71940-30E50-F0i201510-201602
PREMIUM PACKAGE&SEAT HEATER-WITH(FRONT SEAT ONLY)&VENTILATION SEAT-WITH,TOPAZ BROWN,TRIM5#
sub71940-30E90
main71940-30E50-F0i201510-201602
F SPORT&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY&VENTILATION SEAT-WITH,TOPAZ BROWN,TRIM5#
sub71940-30E90
main71940-30E90-C0i201602-202007
F SPORT&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY&VENTILATION SEAT-WITH,BLACK,TRIM2#
main71940-30E90-C0i201602-202007
BLACK,TRIM2#
main71940-30E90-C0i201602-202007
PREMIUM PACKAGE&SEAT HEATER-WITH(FRONT SEAT ONLY),BLACK,TRIM2#
main71940-30E90-D0i201602-202007
F SPORT&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY&VENTILATION SEAT-WITH,DK.ROSE,TRIM3#
main71940-30E90-D0i201602-202007
PREMIUM PACKAGE&SEAT HEATER-WITH(FRONT SEAT ONLY),DK.ROSE,TRIM3#
main71940-30E90-D0i201602-202007
DK.ROSE,TRIM3#
main71940-30E90-F0i201602-202007
F SPORT&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY&VENTILATION SEAT-WITH,TOPAZ BROWN,TRIM5#
main71940-30E90-F0i201602-202007
TOPAZ BROWN,TRIM5#
main71940-30E90-F0i201602-202007
PREMIUM PACKAGE&SEAT HEATER-WITH(FRONT SEAT ONLY),TOPAZ BROWN,TRIM5#
main71940-30F10-B1i201602-201709
CHATEAU,TRIM1#
main71940-30F10-C1i201602-201709
BLACK,TRIM2#
main71940-30F10-F1i201602-201709
TOPAZ BROWN,TRIM5#
71960BHEADREST ASSY, REAR SEAT, CENTER
main71960-30460-B2i201112-201409
LT.GRAY,TRIM1#
sub71960-30460
sub71960-30610
main71960-30460-B3i201409-201510
LT.GRAY,TRIM1#
sub71960-30460
sub71960-30610
main71960-30460-C3i201112-201409
BLACK,TRIM2#
sub71960-30460
sub71960-30610
main71960-30460-C5i201409-201510
BLACK/RED,TRIM33
sub71960-30460
sub71960-30610
main71960-30460-C6i201409-201510
BLACK,TRIM2#
sub71960-30460
sub71960-30610
main71960-30460-D1i201112-201409
GARNET,TRIM3#
sub71960-30460
sub71960-30610
main71960-30460-D2i201409-201510
GARNET,TRIM3#
sub71960-30460
sub71960-30610
main71960-30460-D2i201409-201412
GARNET,TRIM30,31,32
sub71960-30460
sub71960-30610
main71960-30460-E2i201112-201409
SADDLE TAN,TRIM4#
sub71960-30460
sub71960-30610
main71960-30460-E3i201409-201510
SADDLE TAN,TRIM4#
sub71960-30460
sub71960-30610
main71960-30460-F1i201112-201409
TOPAZ BROWN,TRIM5#
sub71960-30460
sub71960-30610
main71960-30460-F2i201409-201510
TOPAZ BROWN,TRIM5#
sub71960-30460
sub71960-30610
main71960-30560i201510-201602
sub71960-30700
main71960-30610-D0i201412-201510
KOREA SPEC&F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONTSEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,GARNET,TRIM30,31,32
main71960-30610-D0i201412-201510
GARNET,TRIM30,31,32
main71960-30610-D0i201412-201510
KOREA SPEC&SEAT HEATER-WITH(FRONT SEAT ONLY),GARNET,TRIM30,31,32
main71960-30610-D0i201412-201510
PREMIUM PACKAGE&SEAT HEATER-WITH(FRONT SEAT ONLY),GARNET,TRIM30,31,32
main71960-30610-D0i201412-201510
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,GARNET,TRIM30,31,32
main71960-30640-B0i201510-202007
CHATEAU,TRIM1#
sub71960-30680
main71960-30640-B0i201510-202007
PREMIUM PACKAGE&SEAT HEATER-WITH(FRONT SEAT ONLY),CHATEAU,TRIM1#
sub71960-30680
main71960-30640-B0i201510-202007
F SPORT&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY&VENTILATION SEAT-WITH,CHATEAU,TRIM1#
sub71960-30680
main71960-30640-C0i201510-201602
F SPORT&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY&VENTILATION SEAT-WITH,BLACK,TRIM2#
sub71960-30680
main71960-30640-C0i201510-201602
BLACK,TRIM2#
sub71960-30680
main71960-30640-C0i201510-201602
KOREA SPEC&F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY&VENTILATION SEAT-WITH,BLACK,TRIM2#
sub71960-30680
main71960-30640-C0i201510-201602
KOREA SPEC&F SPORT&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY&VENTILATION SEAT-WITH,BLACK,TRIM2#
sub71960-30680
main71960-30640-C0i201510-201602
PREMIUM PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH)&VENTILATION SEAT-WITH,BLACK,TRIM2#
sub71960-30680
main71960-30640-C0i201510-201602
PREMIUM PACKAGE&SEAT HEATER-WITH(FRONT SEAT ONLY),BLACK,TRIM2#
sub71960-30680
main71960-30640-C0i201510-201602
PREMIUM PACKAGE&SEAT HEATER-WITH(FRONT SEAT ONLY)&VENTILATION SEAT-WITH,BLACK,TRIM2#
sub71960-30680
main71960-30640-C0i201510-201602
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY&VENTILATION SEAT-WITH,BLACK,TRIM2#
sub71960-30680
main71960-30640-D0i201510-201602
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY&VENTILATION SEAT-WITH,DK.ROSE,TRIM3#
sub71960-30680
main71960-30640-D0i201510-201602
DK.ROSE,TRIM3#
sub71960-30680
main71960-30640-D0i201510-201602
KOREA SPEC&F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY&VENTILATION SEAT-WITH,DK.ROSE,TRIM3#
sub71960-30680
main71960-30640-D0i201510-201602
KOREA SPEC&F SPORT&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY&VENTILATION SEAT-WITH,DK.ROSE,TRIM3#
sub71960-30680
main71960-30640-D0i201510-201602
PREMIUM PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH)&VENTILATION SEAT-WITH,DK.ROSE,TRIM3#
sub71960-30680
main71960-30640-D0i201510-201602
PREMIUM PACKAGE&SEAT HEATER-WITH(FRONT SEAT ONLY),DK.ROSE,TRIM3#
sub71960-30680
main71960-30640-D0i201510-201602
PREMIUM PACKAGE&SEAT HEATER-WITH(FRONT SEAT ONLY)&VENTILATION SEAT-WITH,DK.ROSE,TRIM3#
sub71960-30680
main71960-30640-D0i201510-201602
F SPORT&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY&VENTILATION SEAT-WITH,DK.ROSE,TRIM3#
sub71960-30680
main71960-30640-F0i201510-201602
KOREA SPEC&F SPORT&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY&VENTILATION SEAT-WITH,TOPAZ BROWN,TRIM5#
sub71960-30680
main71960-30640-F0i201510-201602
PREMIUM PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH)&VENTILATION SEAT-WITH,TOPAZ BROWN,TRIM5#
sub71960-30680
main71960-30640-F0i201510-201602
PREMIUM PACKAGE&SEAT HEATER-WITH(FRONT SEAT ONLY),TOPAZ BROWN,TRIM5#
sub71960-30680
main71960-30640-F0i201510-201602
PREMIUM PACKAGE&SEAT HEATER-WITH(FRONT SEAT ONLY)&VENTILATION SEAT-WITH,TOPAZ BROWN,TRIM5#
sub71960-30680
main71960-30640-F0i201510-201602
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY&VENTILATION SEAT-WITH,TOPAZ BROWN,TRIM5#
sub71960-30680
main71960-30640-F0i201510-201602
F SPORT&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY&VENTILATION SEAT-WITH,TOPAZ BROWN,TRIM5#
sub71960-30680
main71960-30640-F0i201510-201602
TOPAZ BROWN,TRIM5#
sub71960-30680
main71960-30640-F0i201510-201602
KOREA SPEC&F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY&VENTILATION SEAT-WITH,TOPAZ BROWN,TRIM5#
sub71960-30680
main71960-30680-C0i201602-202007
PREMIUM PACKAGE&SEAT HEATER-WITH(FRONT SEAT ONLY),BLACK,TRIM2#
main71960-30680-C0i201602-202007
BLACK,TRIM2#
main71960-30680-C0i201602-202007
F SPORT&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY&VENTILATION SEAT-WITH,BLACK,TRIM2#
main71960-30680-D0i201602-202007
DK.ROSE,TRIM3#
main71960-30680-D0i201602-202007
F SPORT&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY&VENTILATION SEAT-WITH,DK.ROSE,TRIM3#
main71960-30680-D0i201602-202007
PREMIUM PACKAGE&SEAT HEATER-WITH(FRONT SEAT ONLY),DK.ROSE,TRIM3#
main71960-30680-F0i201602-202007
PREMIUM PACKAGE&SEAT HEATER-WITH(FRONT SEAT ONLY),TOPAZ BROWN,TRIM5#
main71960-30680-F0i201602-202007
TOPAZ BROWN,TRIM5#
main71960-30680-F0i201602-202007
F SPORT&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY&VENTILATION SEAT-WITH,TOPAZ BROWN,TRIM5#
main71960-30700-B1i201602-201709
CHATEAU,TRIM1#
main71960-30700-C1i201602-201709
BLACK,TRIM2#
main71960-30700-F1i201602-201709
TOPAZ BROWN,TRIM5#
72693HOOK, REAR SEAT CUSHION LOCK
main72693-12080i201112-202007
73705BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH
main73705-30050i201112-202007
73706BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH
main73706-30050i201112-202007
73930AAIRBAG ASSY, REAR SEAT, RH
main73930-30060i201112-201209
main73930-30061i201209-201510
73940AAIRBAG ASSY, REAR SEAT, LH
main73940-30060i201112-201209
main73940-30061i201209-201510
8202
87501DCONTROL SUB-ASSY, SEAT HEATER
9011908C20
main90119-08C20
9151180816
main91511-80816
9418560600
main94185-60600

20 parts on this diagram · 4 diagrams in section
