Toyota LEXUS GS SERIES — METER

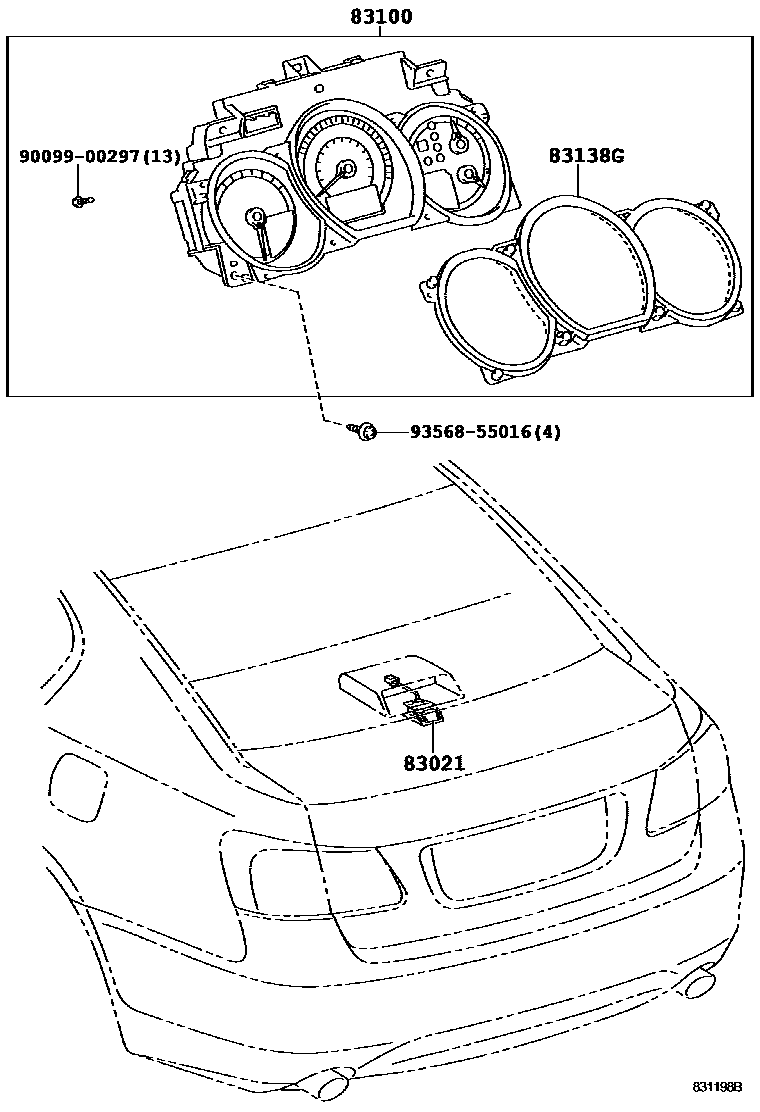

Parts diagram
83021METER SET, COMPUTER COMBINATION
main83021-30020i200501-200709
83100METER ASSY, COMBINATION
main83800-30S80i200809-200909
main83800-30W10i200909-201112
main83800-30B20supersedes 83800-30B00i200501-200607
CANADA SPEC; TAIWAN SPEC
main83800-30B30supersedes 83800-30B10i200501-200607
CANADA SPEC; TAIWAN SPEC
main83800-30B40i200501-200607
KOREA SPEC
main83800-30D10supersedes 83800-30B10i200501-200607
KOREA SPEC
main83800-30G00supersedes 83800-30F80i200607-200709
CANADA SPEC; TAIWAN SPEC
main83800-30G10supersedes 83800-30F90i200607-200709
CANADA SPEC; TAIWAN SPEC
main83800-30G20i200607-200709
KOREA SPEC
main83800-30G30supersedes 83800-30F90i200607-200709
KOREA SPEC
main83800-30L60supersedes 83800-30L40i200709-200809
CANADA SPEC
main83800-30L70supersedes 83800-30L50i200709-200809
CANADA SPEC
main83800-30L80i200709-200809
KOREA SPEC
main83800-30L90supersedes 83800-30L50i200709-200809
KOREA SPEC
main83800-30M00i200709-200809
TAIWAN SPEC
main83800-30T00i200809-200910
CANADA SPEC
main83800-30T10i200809-200910
CANADA SPEC
main83800-30T20i200809-200909
KOREA SPEC
main83800-30T30supersedes 83800-30S90i200809-200909
KOREA SPEC
main83800-30T40i200809-200909
TAIWAN SPEC
main83800-30W31i200910-201112
CANADA SPEC
main83800-30W41i200910-201112
CANADA SPEC
main83800-30W50i200909-201112
KOREA SPEC
main83800-30W60supersedes 83800-30W20i200909-201112
KOREA SPEC
main83800-30W70i200909-201112
TAIWAN SPEC
83138GGLASS, COMBINATION METER
main83811-30B00supersedes 83811-30V90i200501-200709
9009900297
main90099-00297
9356855016
main93568-55016

5 parts on this diagram · 1 diagram in section

METER for Toyota LEXUS GS SERIES

This section contains 5 genuine Toyota parts for the METER system of the Toyota LEXUS GS SERIES. Key components include: METER SET, COMPUTER COMBINATION, METER ASSY, COMBINATION, GLASS, COMBINATION METER.
