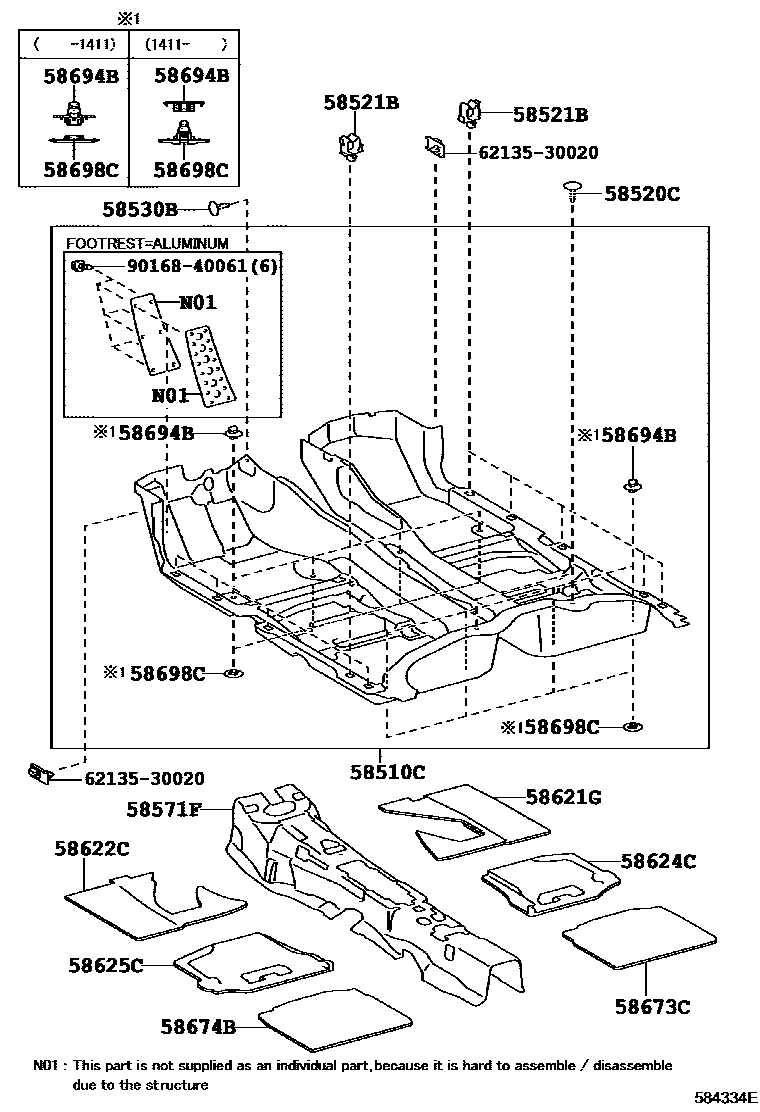

Toyota LEXUS GS SERIES — MAT & CARPET

0001 1 0002 1

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-30D00-C0iGRL10,11,GWL10201112-201309

BLACK,TRIM0#,1#,2#,4#,5#

sub58510-30D01

main58510-30D20-C0iGRL15201112-201305

BLACK,TRIM0#,1#,2#,4#,5#

sub58510-30D21

main58510-30E50-C1iGRL10,GWL10201309-201608

BLACK,TRIM1#,2#,5#

sub58510-30K60

main58510-30E50-C1iGRL10,GWL10201309-201510

BLACK,TRIM1#,2#,4#,5#

sub58510-30K60

main58510-30E50-C1iGRL12,GWL10201510-201608

BLACK,TRIM1#,2#,5#,6#

sub58510-30K60

main58510-30E70-C0iGRL15201305-201309

BLACK,TRIM1#,2#,4#,5#

sub58510-30L00

main58510-30E70-C1iGRL16201510-201608

BLACK,TRIM1#,2#,5#,6#

sub58510-30L00

main58510-30E70-C1iGRL15201309-201510

BLACK,TRIM1#,2#,4#,5#

sub58510-30L00

main58510-30K60-C0iARL10201609-201908

BLACK,TRIM1#,2#,5#

main58510-30K60-C0iGRL12,GWL10201609-202007

BLACK,TRIM1#,2#,5#,6#

main58510-30L00-C0iGRL16201609-202007

BLACK,TRIM1#,2#,5#,6#

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-05164-B8iGRL1#,GWL10201112-202007

LT.GRAY

sub90467-05164

58521BHOOK, FLOOR CARPET

main58521-30150iARL10,GRL1#,GWL10201112-202007

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-07049-23iARL10201610-201908

BLACK,TRIM1#,2#,3#,5#

sub90467-07049

main90467-07049-23iGRL1#,GWL10201610-202007

BLACK,TRIM1#,2#,3#,5#,6#

sub90467-07049

main90467-07049-C0iGRL10201309-201510

BLACK,TRIM1#,2#,3#,4#,5#

sub90467-07049

main90467-07049-C0iGRL10,11,GWL10201112-201309

BLACK,TRIM0#,1#,2#,4#,5#

sub90467-07049

main90467-07049-C0iGRL15201112-201510

BLACK,TRIM0#,1#,2#,3#,4#,5#

sub90467-07049

main90467-07049-C0iGWL10201309-201510

BLACK,TRIM1#,2#,4#,5#

sub90467-07049

main90467-07049-C0iGWL10201309-201510

BLACK,TRIM1#,2#,5#

sub90467-07049

main90467-07049-C0iGRL1#,GWL10201510-201610

BLACK,TRIM1#,2#,3#,5#,6#

sub90467-07049

main90467-07049-C0iGRL1#,GWL10201510-201610

BLACK,TRIM1#,2#,3#,5#

sub90467-07049

58571FPAD, FRONT FLOOR, FRONT

main58571-30210iGRL10201112-201409

sub58571-30211

main58571-30211iARL10,GRL12,GWL10201410-202007

main58571-30220iGRL15201112-201409

sub58571-30221

main58571-30221iGRL16201410-202007

58621GPAD, FRONT FLOOR SILENCER, RH

main58621-30150iGRL15201112-201305

sub58621-30151

main58621-30151iGRL10201305-202007

58622CPAD, FRONT FLOOR SILENCER, LH

main58622-30170iGRL15201112-201304

sub58622-30171

main58622-30171iGRL15201305-202007

main58622-30200iGRL10,11,GWL10201112-201305

sub58622-30201

main58622-30201iARL10,GRL12,GWL10201305-202007

58624CPAD, CENTER FLOOR SILENCER, RH

main58624-30140iGRL15201112-201305

sub58624-30141

main58624-30141iGRL10201305-202007

58625CPAD, CENTER FLOOR SILENCER, LH

main58625-30090iGRL15201112-201305

sub58625-30091

main58625-30091iGRL10..8FC;GRL11,15,GWL10201305-202007

58673CPAD, REAR FLOOR SILENCER, NO.1

main58673-30020iGRL15201112-201305

sub58673-30021

main58673-30021iGRL10201305-202007

58674BPAD, REAR FLOOR SILENCER, NO.2

main58674-30020iGRL15201112-201305

sub58674-30021

main58674-30021iGRL10..8FC;GRL11,15,GWL10201305-202007

58694BPLATE, MAT SET, UPPER

main58694-30010iGRL1#,GWL10201503-201508

main58694-76010iGRL1#,GWL10201112-201411

main58694-78010iGRL1#,GWL10201411-202007

58698CPLATE, MAT SET, LOWER

main58698-30010iGRL1#,GWL10201503-201508

main58698-76010iGRL1#,GWL10201112-201411

main58698-78010iGRL1#,GWL10201411-202007

6213530020FRAME, REAR SIDE WINDOW

main62135-30020

9016840061

main90168-40061

15 parts on this diagram · 2 diagrams in section
