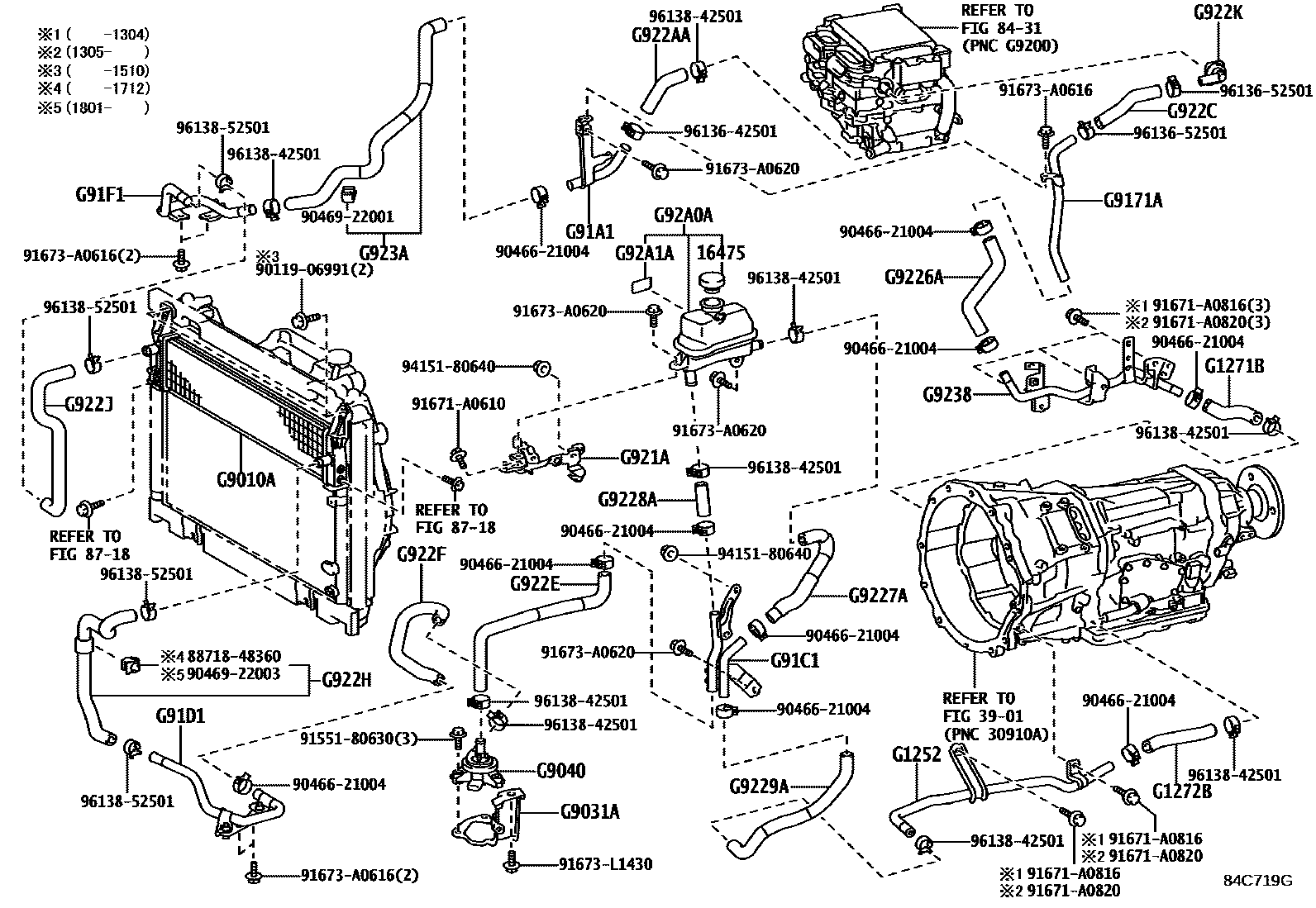

Toyota LEXUS GS SERIES — INVERTER COOLING
3901
8431
8718
G1252PIPE, MOTOR COOLING, NO.2
G1271BHOSE, MOTOR COOLING, NO.1
G1272BHOSE, MOTOR COOLING, NO.2
G9031ABRACKET SUB-ASSY, HV WATER PUMP
G9040INVERTER WATER PUMP ASSY(W/MOTOR)
G9171APIPE, INVERTER COOLING, NO.1
G91A1PIPE, INVERTER COOLING, INLET
G91C1PIPE, HV WATER PUMP INLET
G91D1PIPE, HV WATER PUMP OUTLET, NO.1
G91F1PIPE, HV RADIATOR OUTLET
G921ABRACKET, INVERTER RESERVE TANK, NO.1
G9226AHOSE, INVERTER COOLING, NO.2
G9227AHOSE, INVERTER COOLING, NO.3
G9228AHOSE, INVERTER COOLING, NO.4
G922AAHOSE, INVERTER COOLING INLET, NO.1
G922CHOSE, INVERTER COOLING OUTLET, NO.1
G922EHOSE, HYBRID WATER PUMP INLET
G922FHOSE, HYBRID WATER PUMP OUTLET, NO.1
G922HHOSE, HYBRID RADIATOR INLET
G922JHOSE, HYBRID RADIATOR OUTLET
G922KCONNECTOR, HYBRID WATER HOSE
G9238PIPE, INVERTER COOLING
G923AHOSE, INVERTER COOLING, NO.7
G92A1ALABEL, HYBRID COOLANT SYSTEM INFORMATION
8871848360PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-48360
9011906991
main90119-06991
9046621004
main90466-21004
9046922001
main90469-22001
9046922003
main90469-22003
9155180630
main91551-80630
91671A0610
main91671-A0610
91671A0816
main91671-A0816
91671A0820
main91671-A0820
91673A0616
main91673-A0616
91673A0620
main91673-A0620
91673L1430
main91673-L1430
9415180640
main94151-80640
9613642501
main96136-42501
9613652501
main96136-52501
9613842501
main96138-42501
9613852501
main96138-52501
48 parts on this diagram · 1 diagram in section
