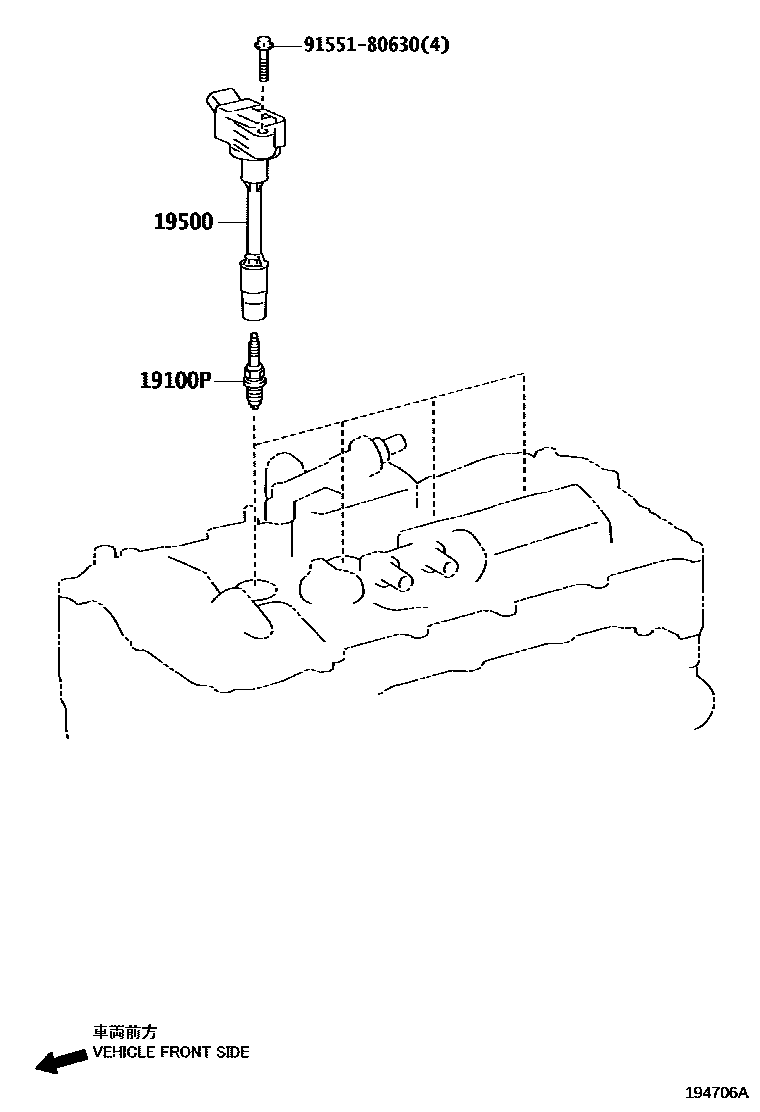

Toyota LEXUS GS SERIES — IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1

19100PPLUG, SPARK

main90919-01249i2GRFSE,4GRFSE..GRL1#201112-201510

FK20HBR11

main90919-01263i2GRFXE..GWL10201203-202007

FK20HBR8

main90919-01276i8ARFTS..ARL10201510-201908

DILFR7K9G

19500COIL ASSY, IGNITION

main90919-02256i2GRFSE..GRL10..8FC;2GR#,4GRFSE..GRL11,15,GWL10201112-201510

main90919-02256i2GRFXE..GWL10201510-201604

W/O MARK

main90919-02269i8ARFTS..ARL10201510-201908

main90919-02273i2GRFXE..GWL10201510-201809

MARK=WHITE

main90919-02273i2GRFKS..GRL1#201510-202007

9155180630

main91551-80630

3 parts on this diagram · 2 diagrams in section
