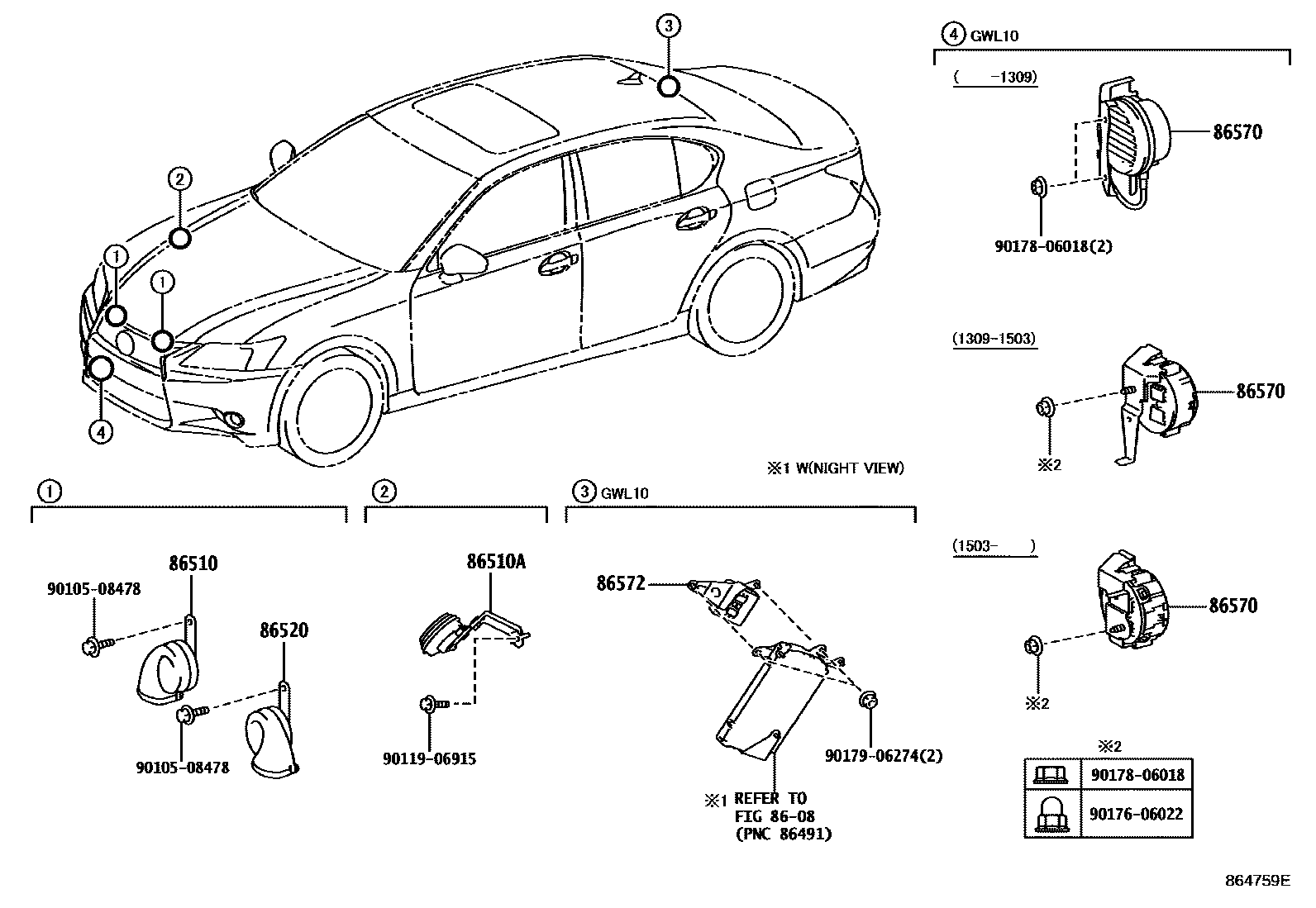

Toyota LEXUS GS SERIES — HORN

0001 1 0002 1

8608

86510HORN ASSY, HIGH PITCHED

main86510-30790iGRL10,15,GWL10201112-202007

main86510-30810iGRL11201201-201307

main86510-50211iGRL11201308-201510

KOREA SPEC

86510AHORN ASSY, SECURITY

main86560-30030iARL10,GRL1#,GWL10201112-202007

86520HORN ASSY, LOW PITCHED

main86520-30670iGRL10201112-202007

main86520-30690iGRL11201201-201307

main86520-50181iGRL11201308-201510

KOREA SPEC

86570SPEAKER ASSY, VEHICLE APPROACHING

main86570-30010iGWL10201203-201309

KOREA SPEC

main86570-30030iGWL10201503-201809

KOREA SPEC

main86570-30050iGWL10201309-201503

KOREA SPEC

86572CONTROLLER, VEHICLE APPROACHING SPEAKER

main86572-30010iGWL10201203-201309

KOREA SPEC

main86572-30030iGWL10201309-201809

KOREA SPEC

9010508478

main90105-08478

9011906915

main90119-06915

9017606022

main90176-06022

9017806018

main90178-06018

9017906274

main90179-06274

11 parts on this diagram · 2 diagrams in section
