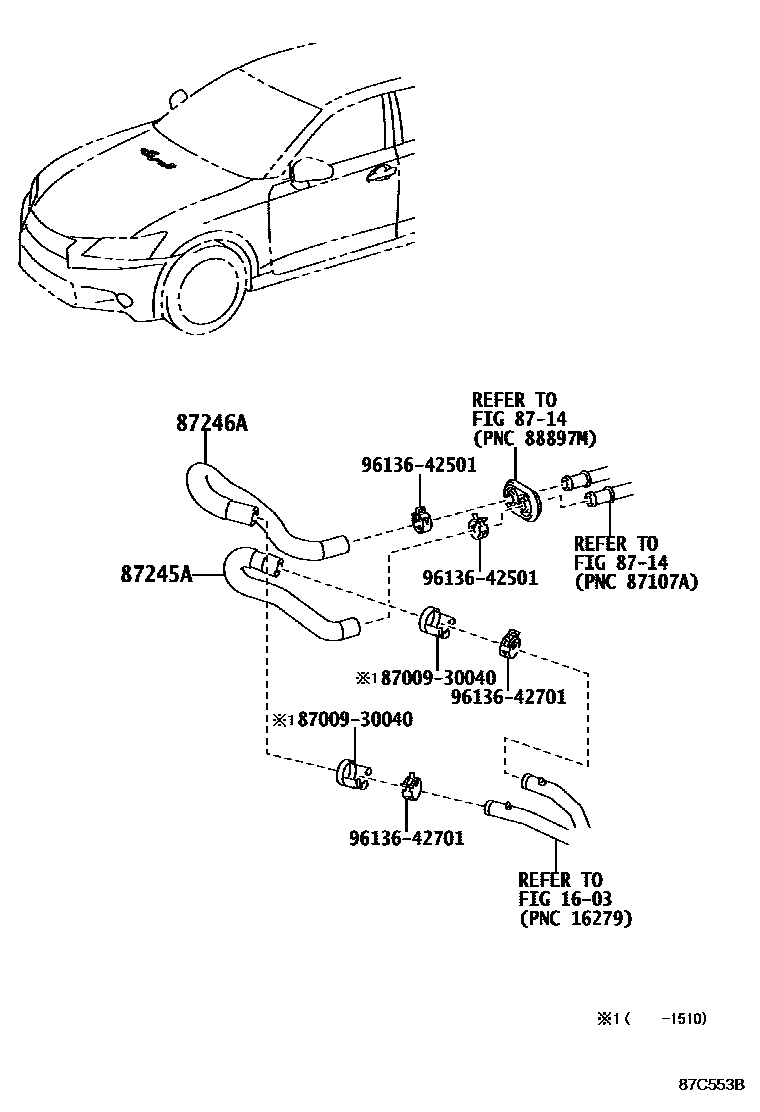

Toyota LEXUS GS SERIES — HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1

1603

8714

87245AHOSE, HEATER WATER, INLET A

main87245-30C20iGWL10201203-201809

main87245-30D10iGRL1#201510-202007

main87245-53180iGRL11,15;GRL10..8FC201112-201510

main87245-53200iARL10201510-201908

87246AHOSE, HEATER WATER, OUTLET A

main87245-30C50iGWL10201203-201809

main87245-30D20iGRL1#201510-202007

main87245-53130iGRL11,15;GRL10..8FC201112-201510

main87245-53210iARL10201510-201908

8700930040HOSE SET, WATER, NO.1

main87009-30040

9613642501

main96136-42501

9613642701

main96136-42701

7 parts on this diagram · 4 diagrams in section
