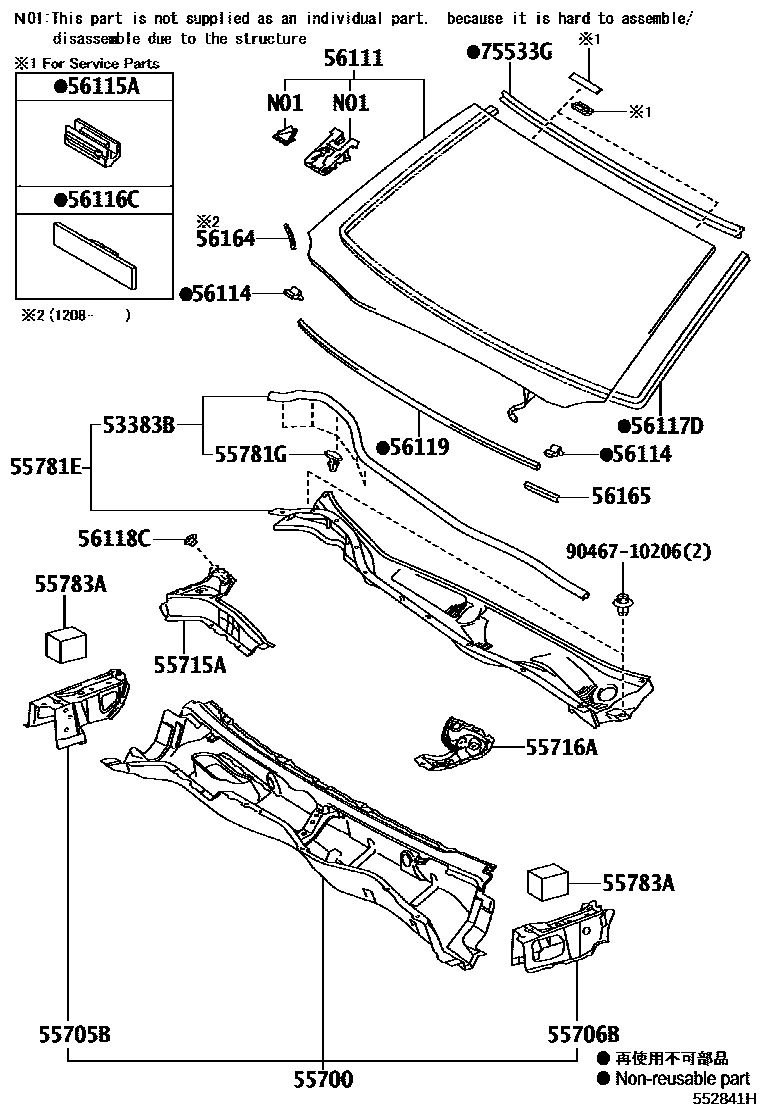

Toyota LEXUS GS SERIES — COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55715ABRACE, COWL TOP TO APRON, RH
55716ABRACE, COWL TOP TO APRON, LH
55781GCLIP, COWL TOP VENTILATOR LOUVER
55783APAD, COWL TOP SILENCER
56114RETAINER, WINDSHIELD GLASS
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117DDAM, WINDSHIELD GLASS ADHESIVE
*D,L=2919,INTERMITTENT WIPER-AUTO(RAIN SENSOR)&LANE KEEPING ASSIST-WITH
*D,L=2919
*D,L=2919,COLD AREA SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR)
*D,L=2919,COLD AREA SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&HEAD UP DISPLAY-WITH
*D,L=2919,COLD AREA SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&HEAD UP DISPLAY-WITH&NIGHT VIEW-WITH
*D,L=2919,COLD AREA SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&HEAD UP DISPLAY-WITH&LANE KEEPING ASSIST-WITH
*D,L=2919,COLD AREA SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&LANE KEEPING ASSIST-WITH
*D,L=2919,INTERMITTENT WIPER-AUTO(RAIN SENSOR)
*D,L=2919,INTERMITTENT WIPER-AUTO(RAIN SENSOR)&HEAD UP DISPLAY-WITH
*D,L=2919,INTERMITTENT WIPER-AUTO(RAIN SENSOR)&HEAD UP DISPLAY-WITH&NIGHT VIEW-WITH
*D,L=2919,INTERMITTENT WIPER-AUTO(RAIN SENSOR)&HEAD UP DISPLAY-WITH&LANE KEEPING ASSIST-WITH
*D,L=2919,COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR)
*D,L=2919,COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&HEAD UP DISPLAY-WITH
*D,L=2919,PRE-COLLISION SYSTEM-WITH
*D,L=2919,PRE-COLLISION SYSTEM-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR)
*D,L=2919,PRE-COLLISION SYSTEM-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&HEAD UP DISPLAY-WITH
56118CRETAINER, WINDSHIELD GLASS, NO.2
COLD AREA SPEC
56119SEAL, WINDSHIELD GLASS
56164COVER, FRONT WINDOW INNER MOULDING, RH
56165COVER, FRONT WINDOW INNER MOULDING, LH
75533GMOULDING, WINDSHIELD, OUTSIDE
9046710206
main90467-10206
20 parts on this diagram · 2 diagrams in section
