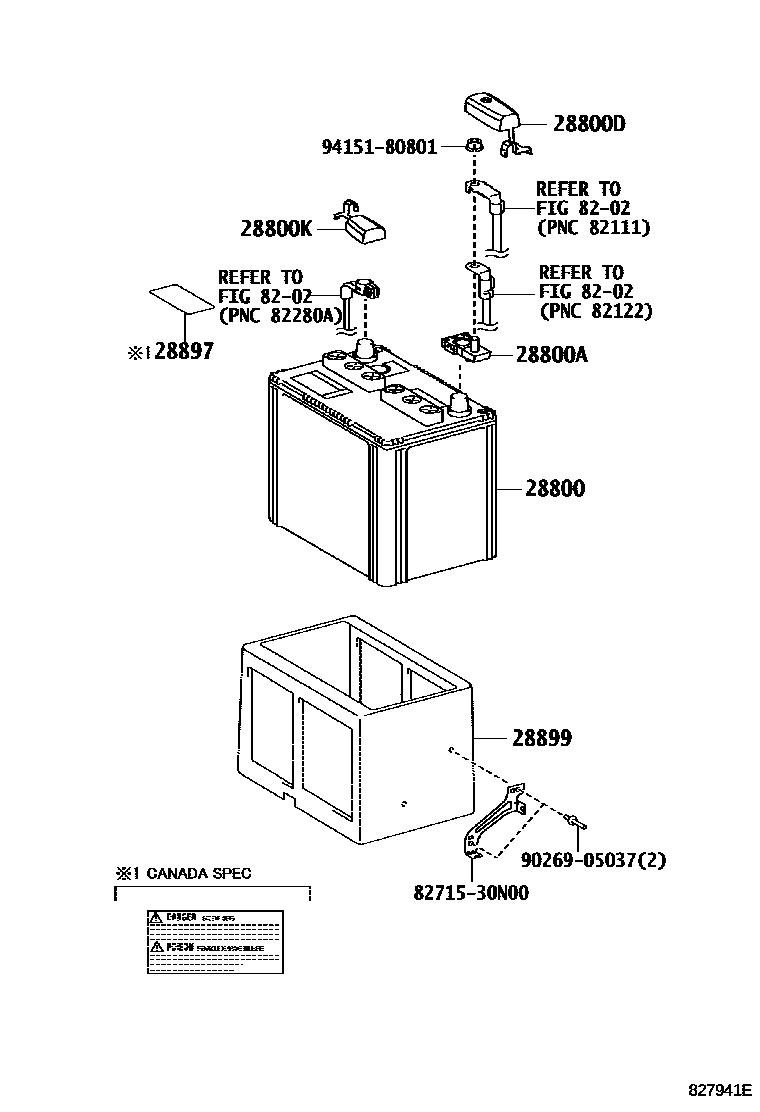

Toyota LEXUS GS SERIES — BATTERY & BATTERY CABLE

0001 1 0002 112V BATTERY 0003 1HV BATTERY 0004 1HV BATTERY

28800BATTERY

main28800-31410i2GRFXE..GWL10201203-201809

S65D26L

sub28800-31411

main28800-38100i8ARFTS,2GRFKS..ARL10,GRL1#201112-202007

80D26R

sub28800-38101

28800ATERMINAL, BATTERY POSITIVE

main90982-05053i2GRFXE..GWL10201203-201809

main90982-05062i2GRFSE..GRL10..8FC;2GRFSE,4GRFSE..GRL11,15201112-202007

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-30840i2GRFXE..GWL10201203-201809

main82821-50470i2GRFSE..GRL10..8FC;2GRFSE,4GRFSE..GRL11,15201112-202007

28800KCOVER, CONNECTOR(FOR BATTERY TERMINAL NEGATIVE)

main82821-30760i2GRFSE..GRL10201112-201809

28897PLATE, BATTERY CAUTION

main28897-31021

28899INSULATOR, BATTERY

main28899-31160i2GRFSE..GRL10..8FC;2GRFSE,4GRFSE..GRL11,15201112-201510

sub28899-36110

main28899-36110i8ARFTS,2GRFKS..ARL10,GRL1#201510-202007

8202

8271530N00BRACKET,WIRING HARNESS CLAMP

main82715-30N00

9026905037

main90269-05037

9415180801

main94151-80801

10 parts on this diagram · 4 diagrams in section
