Toyota LEXUS GS SERIES — ANTENNA

86101CORD SUB-ASSY, ANTENNA

main86101-30F30i200909

main86101-30A30i201007

KOREA SPEC&MOON ROOF-WITH; TAIWAN SPEC&MOON ROOF-WITH

main86101-30A40supersedes 86101-30A30i200501-200607

AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR; AUDIO-AM/FM/GE,CASSETTE,DVD CHANGER,*MAR

main86101-30E60i200909-201007

MAYDAY SYSTEM-WITH

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-30E70i200909

MOON ROOF-WITH&WITH(*EMV & HDD NAVIGATION SYSTEM); WITH(*EMV & HDD NAVIGATION SYSTEM)&MAYDAY SYSTEM-WITH

main86101-30A70i200709-200909

MOON ROOF-WITH&WITH(*EMV & HDD NAVIGATION SYSTEM); WITH(*EMV & HDD NAVIGATION SYSTEM)&MAYDAY SYSTEM-WITH

main86101-30A80supersedes 86101-30A70i200501-200607

AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR; AUDIO-AM/FM/GE,CASSETTE,DVD CHANGER,*MAR

main86101-30F00i200909

KOREA SPEC&WITH(*EMV & DVD NAVIGATION SYSTEM); TAIWAN SPEC&WITH(*EMV & DVD NAVIGATION SYSTEM)

main86101-30F20i201007

MOON ROOF-WITH

86251BWIRING,AMPLIFIER

main86251-30030i200501-200607

AUDIO-AM/FM,CASSETTE,DVD CHANGER,*MAR; AUDIO-AM/FM/GE,CASSETTE,DVD CHANGER,*MAR

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-30A60i200501-200607

9011906915

main90119-06915

9017906274

main90179-06274

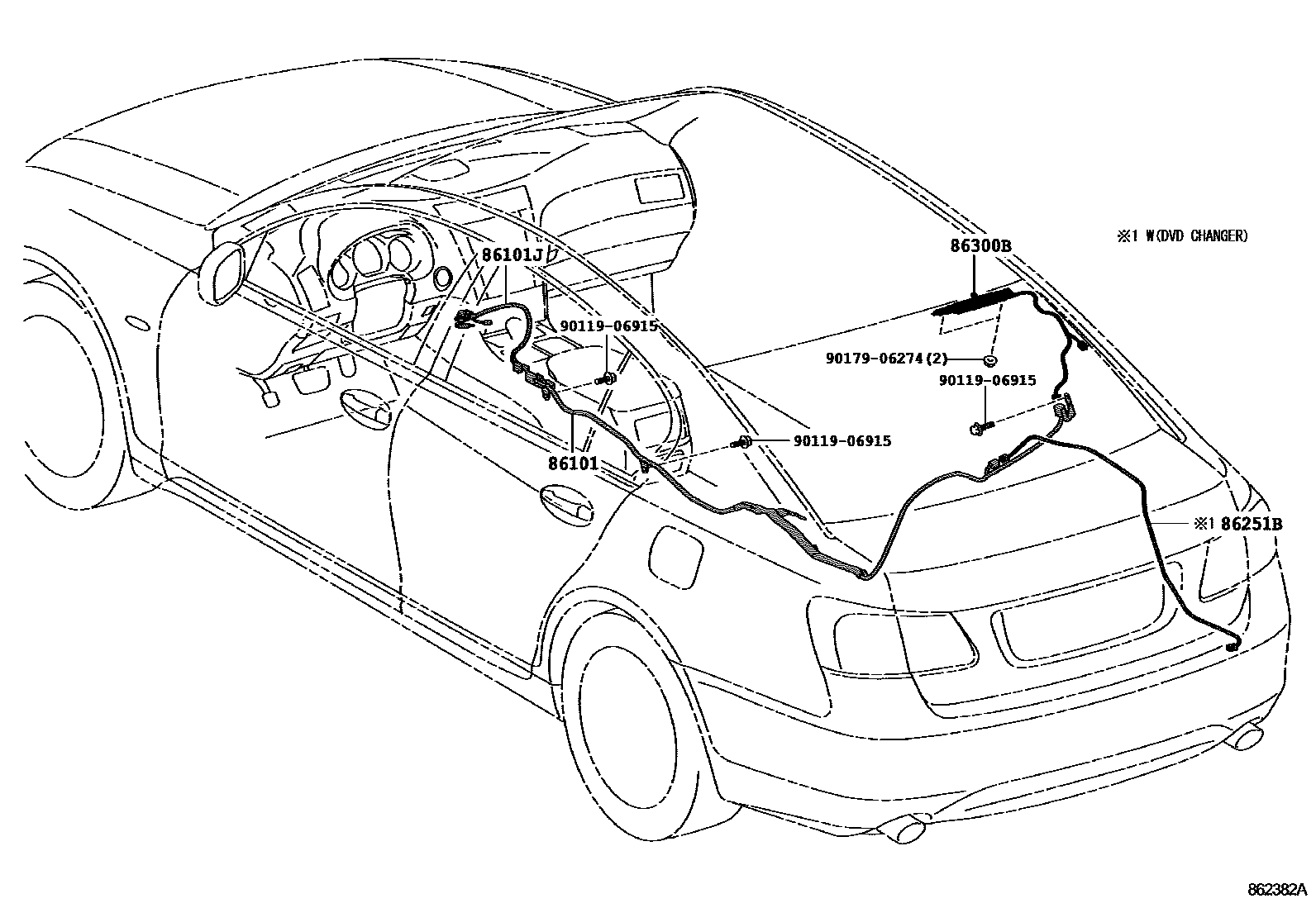

6 parts on this diagram · 1 diagram in section

ANTENNA for Toyota LEXUS GS SERIES

This section contains 6 genuine Toyota parts for the ANTENNA system of the Toyota LEXUS GS SERIES. Key components include: CORD SUB-ASSY, ANTENNA, CORD SUB-ASSY, ANTENNA, NO.2, WIRING,AMPLIFIER, ANTENNA ASSY, AMPLIFIER, NO.1.
