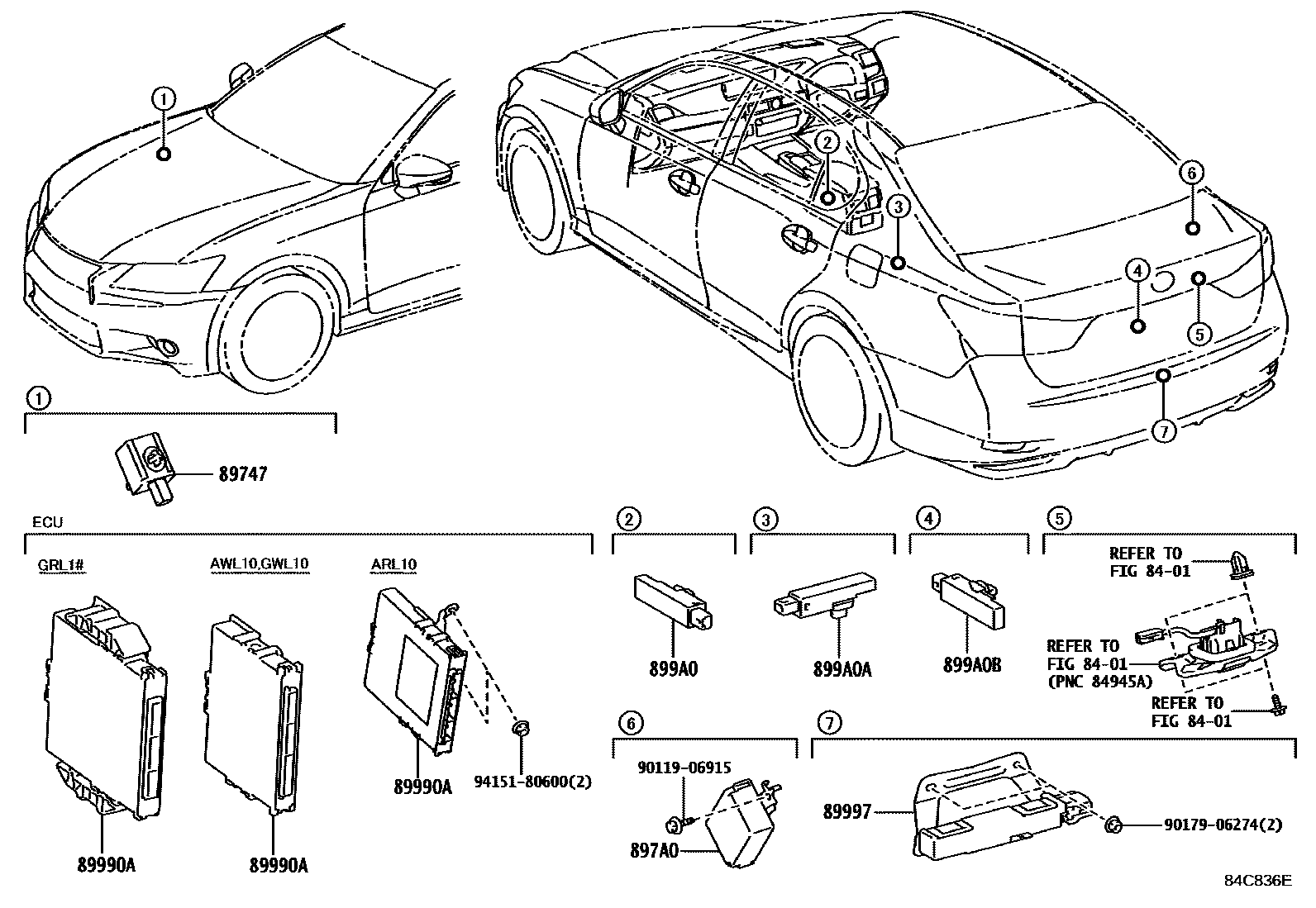

Toyota LEXUS GS SERIES — WIRELESS DOOR LOCK

8401

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iGRL10201112-202007

897A0RECEIVER ASSY,DOOR CONTROL & TIRE PRESSURE MONITORING SYSTEM

main897B0-30020iGRL1#,GWL10201112-201309

sub897B0-30021

main897B0-30021iAWL10,GRL1#,GWL10201309-201409

sub897B0-30022

main897B0-30022iAWL10,GRL1#,GWL10201410-201510

main897B0-30130iARL10,AWL10,GRL1#,GWL10201510-202007

89990ACOMPUTER ASSY, SMART KEY

main89990-30280iGWL10201203-201309

sub89990-30281

main89990-30300iGRL1#201112-201308

sub89990-30420

main89990-30420iGRL1#201309-201312

sub89990-30421

main89990-30421iGRL1#201401-201410

sub89990-30422

main89990-30430iAWL10,GWL10201309-201410

sub89990-30431

main89990-30450iGRL1#201410-201510

sub89990-30451

main89990-30470iAWL10,GWL10201410-201602

sub89990-30471

main89990-30471iAWL10,GWL10201603-201705

sub89990-30472

main89990-30472iAWL10,GWL10201706-201906

sub89990-30473

main89990-30473iAWL10,GWL10201907-202007

sub89990-30474

main89990-30510iGRL1#201510-201608

sub89990-30511

main89990-30511iGRL1#201609-201709

sub89990-30512

main89990-30512iGRL1#201710-201812

sub89990-30513

main89990-30513iGRL1#201901-202007

sub89990-30514

main89990-30670iARL10201609-202007

89997ANTENNA, ELECTRICAL KEY

main89997-30080iGRL10..8FC;AWL10,GRL11,15,GWL10201112-202007

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-47010iGRL10..8FC;AWL10,GRL11,15,GWL10201112-202007

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A1-60010iGRL10201112-202007

899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3

main899A0-60010iGRL10..8FC;AWL10,GRL11,15,GWL10201112-202007

9011906915

main90119-06915

9017906274

main90179-06274

9415180600

main94151-80600

11 parts on this diagram · 1 diagram in section
