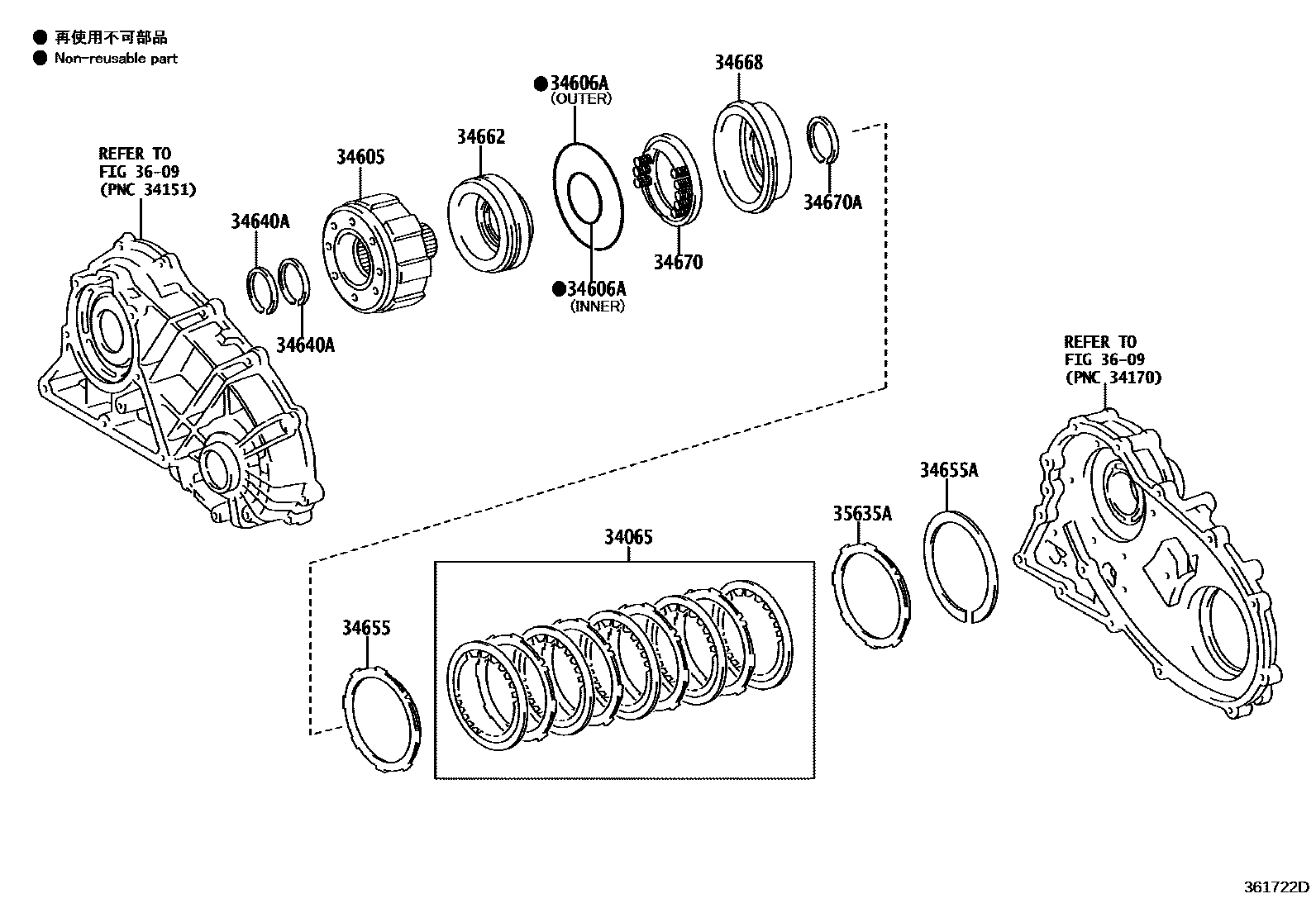

Toyota LEXUS GS SERIES — TRANSFER DIRECT CLUTCH, LOW BRAKE & SUPPORT

34065DISC SET, CENTER DIFFERENTIAL CLUTCH

main34065-30010iGRL15201112-202007

34605DRUM SUB-ASSY, TRANSFER DIRECT CLUTCH

main34605-30010iGRL15201112-202007

34606ARING, O (FOR TRANSFER DIRECT CLUTCH PISTON)

main90301-56004iGRL16201112-202007

main90301-99058iGRL16201112-202007

34640ARING, SEAL(FOR TRANSFER CENTER SUPPORT)

main35617-30030iGRL15201112-202007

34655FLANGE, TRANSFER DIRECT CLUTCH

main35635-30090iGRL15201112-202007

34655ARING, SNAP (FOR TRANSFER DIRECT CLUTCH FLANGE)

main90521-99001iGRL15201112-202007

34662PISTON, CENTER DIFFERENTIAL CLUTCH

main34662-30010iGRL15201112-202007

34668BALANCER, CENTER DIFFERENTIAL CLUTCH PRESSURE

main34668-30010iGRL15201112-202007

34670SPRING ASSY, TRANSFER DIRECT CLUTCH RETURN

main34670-30010iGRL15201112-202007

34670ARING, SNAP (FOR TRANSFER DIRECT CLUTCH RETURN SPRING)

main90520-53002iGRL15201112-202007

35635AFLANGE, CENTER DIFFERENTIAL CLUTCH DISC

main35635-30070iGRL15201112-202007

main35635-30080iGRL16201112-202007

main35635-30090iGRL15201112-202007

3609

12 parts on this diagram · 1 diagram in section
