Toyota LEXUS GS SERIES — STANDARD TOOL

0001 1 0002 1

09110JACK ASSY

main09111-30160iGRL10201112-201602

sub09111-30181

main09111-30180iARL10,AWL10,GRL1#,GWL10201603-202007

sub09111-30181

09113HANDLE, JACK

main09113-30050iAWL10,GRL1#,GWL10201112-202007

09120BAG, TOOL

main09120-24020

09130PLIERS

main09130-50040

09135DRIVER, SCREW

main09135-50060iAWL10,GRL1#,GWL10201112-202007

09141SPANNER

main09141-60010

main09141-60020

09150WRENCH, HUB NUT BOX

main09150-48010iGRL1#,GWL10201112-201207

main09150-76020iGRL10201208-202007

09181ROD, PARKING BRAKE RELEASE

main09181-30010iAWL10,GRL1#,GWL10201112-202007

51960HOOK ASSY, FRONT

main51961-53010iGRL10201112-202007

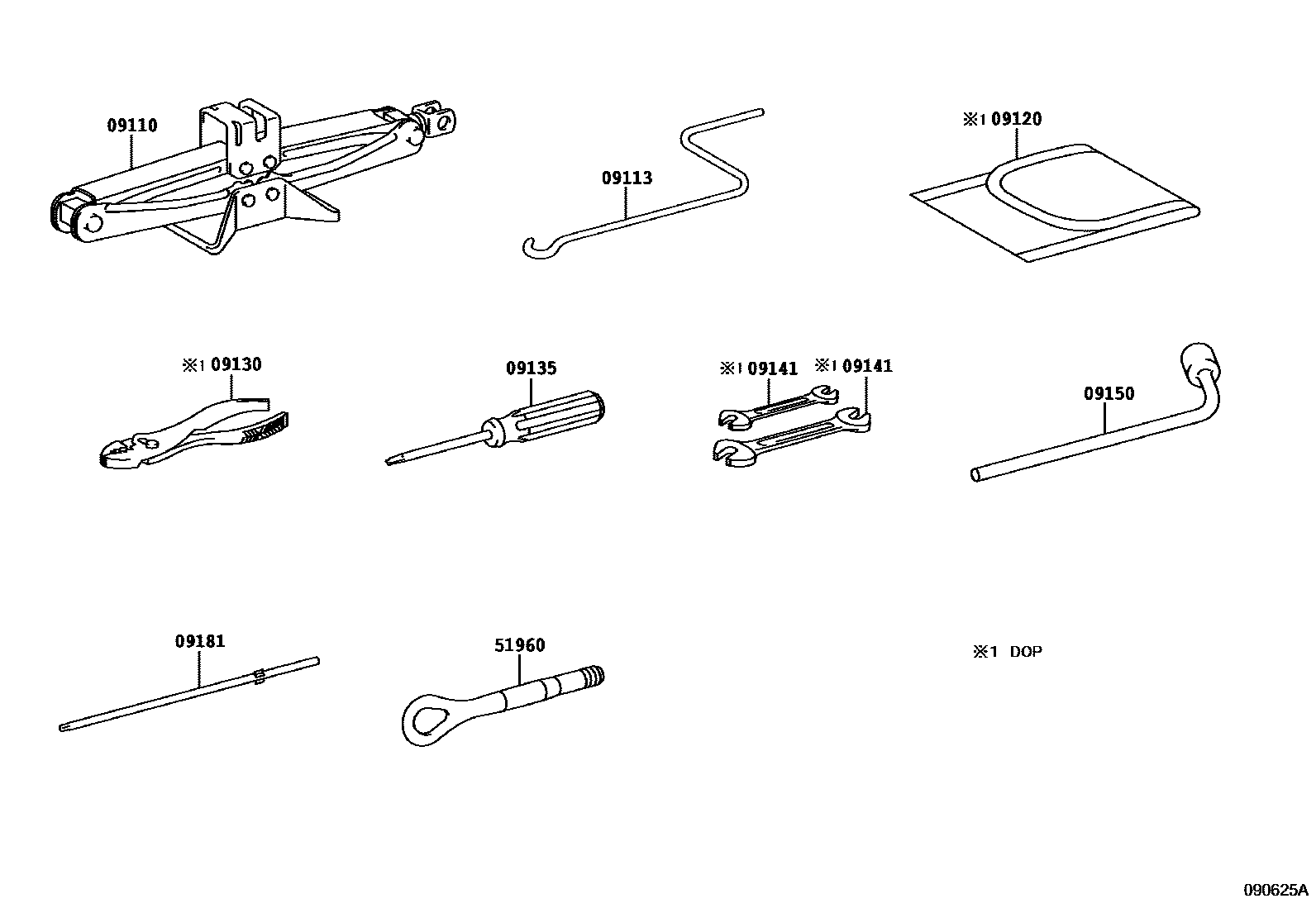

9 parts on this diagram · 2 diagrams in section
