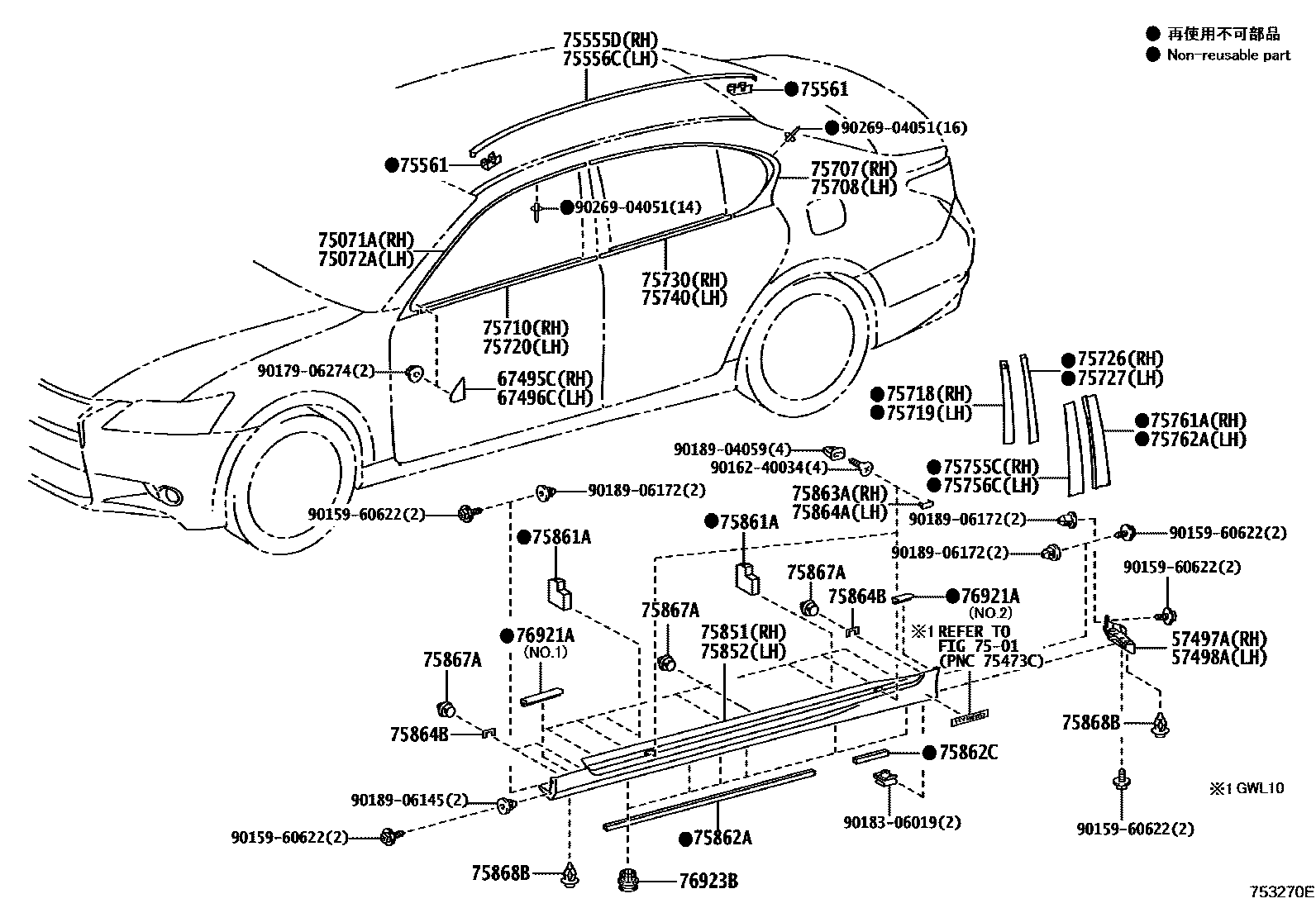

Toyota LEXUS GS SERIES — SIDE MOULDING
57497ASHIELD, REAR FLOOR HOUSING
57498ASHIELD, REAR FLOOR HOUSING, NO.2
67495CCOVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH
67496CCOVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH
7501
75071AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE RH
75072AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LH
75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH
STARLIGHT BLACK GF.,217
sub75555-30121
75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH
75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
75707MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, RH
75708MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, LH
75710MOULDING ASSY, FRONT DOOR BELT, RH
75718COVER, FRONT DOOR BELT MOULDING END, REAR RH
75719COVER, FRONT DOOR BELT MOULDING END, REAR LH
75720MOULDING ASSY, FRONT DOOR BELT, LH
75726COVER, REAR DOOR BELT MOULDING END, FRONT RH
75727COVER, REAR DOOR BELT MOULDING END, FRONT LH
75730MOULDING ASSY, REAR DOOR BELT, RH
75740MOULDING ASSY, REAR DOOR BELT, LH
75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH
75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH
75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH
75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH
75851MOULDING, ROCKER PANEL, RH
WHITE PEARL CS.,077
WHITE NOVA GF.,083
MERCURY GRAY MC.,1H9
SONIC SILVER,1J2
SONIC TITANIUM,1J7
BLACK,212
STARLIGHT BLACK GF.,217
CRIMSON CS. GF.,3S8
FIRE AGATE M.M.,4V3
LAPIS LAZULI MC.,8V3
METEOR BLUE M.M.,8W3
WHITE NOVA GF.,083
WHITE NOVA GF.,083 ,3T5
SONIC QAUARTZ,085
MERCURY GRAY MC.,1H9
SONIC SILVER,1J2
SONIC SILVER,1J2 ,8X1
SONIC TITANIUM,1J7
DK.GRAY MC.,1G0
BLACK,212
GRAPHITE BLACK GF.,223
RED MC.CS.,3R1
AMBER CS.,4X2
HEAT BLUE CONTRAST LAYERI,4X2 ,8X1
HEAT BLUE CONTRAST LAYERI,8X1
DEEP BLUE MC.,8X5
75852MOULDING, ROCKER PANEL, LH
WHITE PEARL CS.,077
WHITE NOVA GF.,083
MERCURY GRAY MC.,1H9
SONIC SILVER,1J2
SONIC TITANIUM,1J7
BLACK,212
STARLIGHT BLACK GF.,217
CRIMSON CS. GF.,3S8
FIRE AGATE M.M.,4V3
LAPIS LAZULI MC.,8V3
METEOR BLUE M.M.,8W3
WHITE NOVA GF.,083
WHITE NOVA GF.,083 ,3T5
SONIC QUARTZ,085
MERCURY GRAY MC.,1H9
SONIC SILVER,1J2
SONIC SILVER,1J2 ,8X1
SONIC TITANIUM,1J7
DK.GRAY MC.,1G0
BLACK,212
GRAPHITE BLACK GF.,223
RED MC.CS.,3R1
AMBER CS.,4X2
DEEP BLUE MC.,8X5
HEAT BLUE CONTRAST LAYERI,8X1
HEAT BLUE CONTRAST LAYERI,4X2 ,8X1
75862APROTECTOR, ROCKER PANEL MOULDING, NO.2
75862CPROTECTOR, ROCKER PANEL MOULDING, NO.2
75863ACOVER, ROCKER PANEL MOULDING END, REAR RH
STARLIGHT BLACK GF.,217
sub75863-30907
75864ACOVER, ROCKER PANEL MOULDING END, REAR LH
STARLIGHT BLACK GF.,217
sub75863-30907
75864BPROTECTOR, ROCKER PANEL MOULDING, NO.4
75867ACLIP, ROCKER PANEL MOULDING
75868BCLIP, ROCKER PANEL MOULDING, NO.2
76921APROTECTOR, SIDE MUDGUARD, NO.1
76923BRETAINER, SIDE MUDGUARD
9015960622
main90159-60622
9016240034
main90162-40034
9017906274
main90179-06274
9018306019
main90183-06019
9018904059
main90189-04059
9018906145
main90189-06145
9018906172
main90189-06172
9026904051
main90269-04051
44 parts on this diagram · 2 diagrams in section
