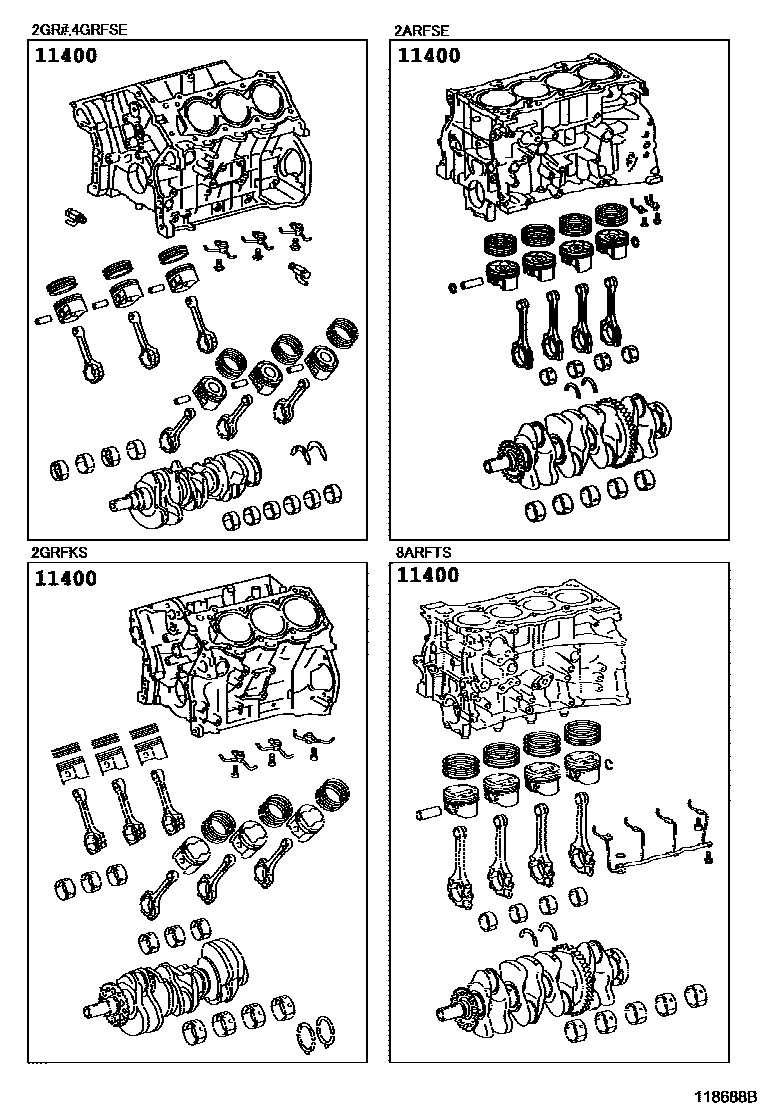

Toyota LEXUS GS SERIES — SHORT BLOCK ASSEMBLY

11400BLOCK ASSY, SHORT

main11400-31050i4GRFSE..GRL11201112-201403

sub11400-39035

main11400-31171i2GRFSE..GRL10201112-201403

sub11400-39075

main11400-31320i2GRFXE..GWL10201203-201403

sub11400-39085

main11400-31410i2GRFKS..GRL12,16201510-202007

main11400-36090i2ARFSE..AWL10201309-201403

sub11400-36130

main11400-36130i2ARFSE..AWL10201403-202007

main11400-36190i8ARFTS..ARL10201609-202007

main11400-39025i4GRFSE..GRL11201407-201608

main11400-39035i4GRFSE..GRL11201403-201406

sub11400-39025

main11400-39075i2GRFSE..GRL10,15201403-201510

main11400-39085i2GRFXE..GWL10201403-202007

1 parts on this diagram · 1 diagram in section
