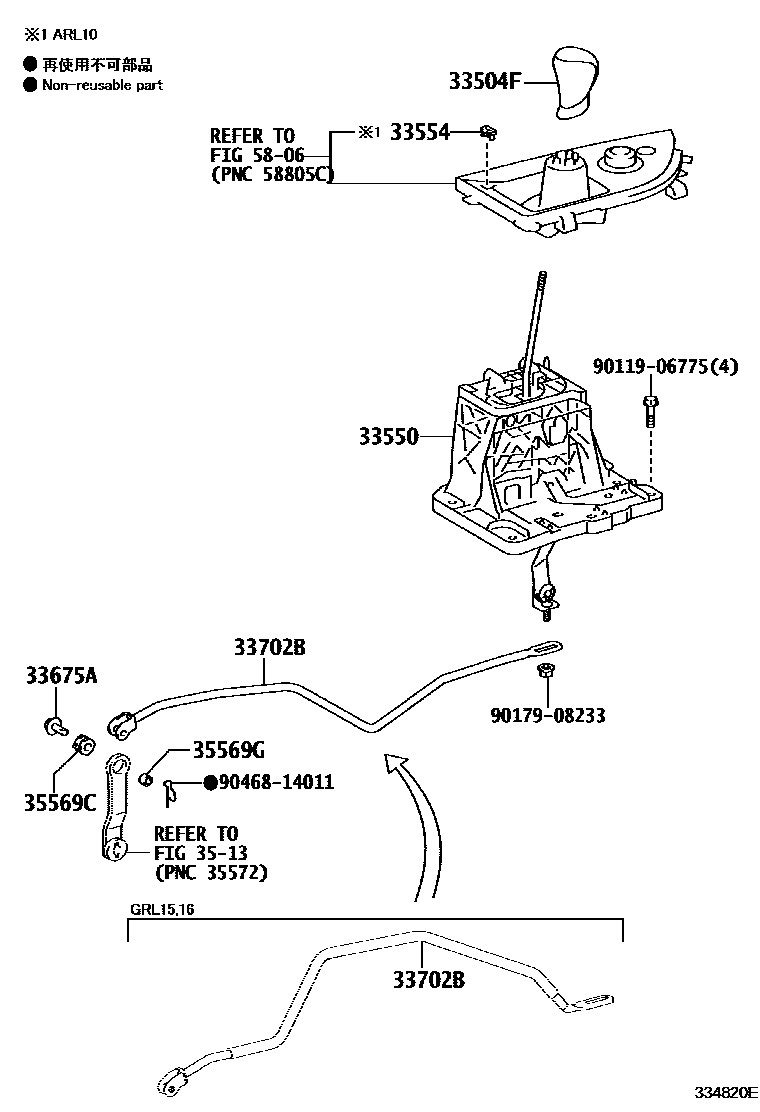

Toyota LEXUS GS SERIES — SHIFT LEVER & RETAINER

0001 1 0002 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-30420-C1iGRL10201112-201510

BLACK & IVORY,TRIM0#,5#

main33504-30420-C3iGRL10..8FC;AWL10,GRL11,15201112-201510

BLACK & LT.GRAY,TRIM1#,2#,4#

main33504-30430-C1iGWL10201203-201309

BLACK & IVORY,TRIM0#,5#

main33504-30430-C3iGWL10201203-201309

BLACK & LT.GRAY,TRIM1#,2#,4#

main33504-30560-C0iARL10,AWL10,GRL12,16,GWL10201510-202007

BLACK & IVORY,TRIM4#

main33504-30560-C1iARL10,AWL10,GRL1#,GWL10201510-202007

BLACK & LT.GRAY,TRIM0#,1#,2#,5#,6#

33550FLOOR SHIFT ASSY, TRANSMISSION

main33550-30C10iGRL10,11..6FC201112-201608

main33550-30C40iGRL15201112-202007

main33550-30C60iGWL10201203-202007

main33550-30D30iAWL10201309-202007

main33550-30D50iGRL10201309-202007

33554CAP, SHIFT LEVER

main33554-30120iAWL10,GWL10201309-202007

33675APIN, W/HOLE (FOR TRANSMISSION CONTROL ROD)

main33726-30020iGRL10201112-202007

33702BROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)

main33702-22140iGRL11201112-201608

main33702-30600iGRL15201112-202007

main33702-30650iGWL10201203-202007

main33702-30660iGRL10201309-202007

main33702-30670iAWL10201309-202007

main33702-30680iGRL10201112-201309

3513

35569CGROMMET (FOR TRANSMISSION CONTROL ROD)

main90480-17013iAWL10,GRL1#,GWL10201112-202007

35569GBUSH (FOR TRANSMISSION CONTROL ROD)

main90560-08091iAWL10,GRL1#,GWL10201112-202007

5806

9011906775

main90119-06775

9017908233

main90179-08233

9046814011

main90468-14011

12 parts on this diagram · 2 diagrams in section
