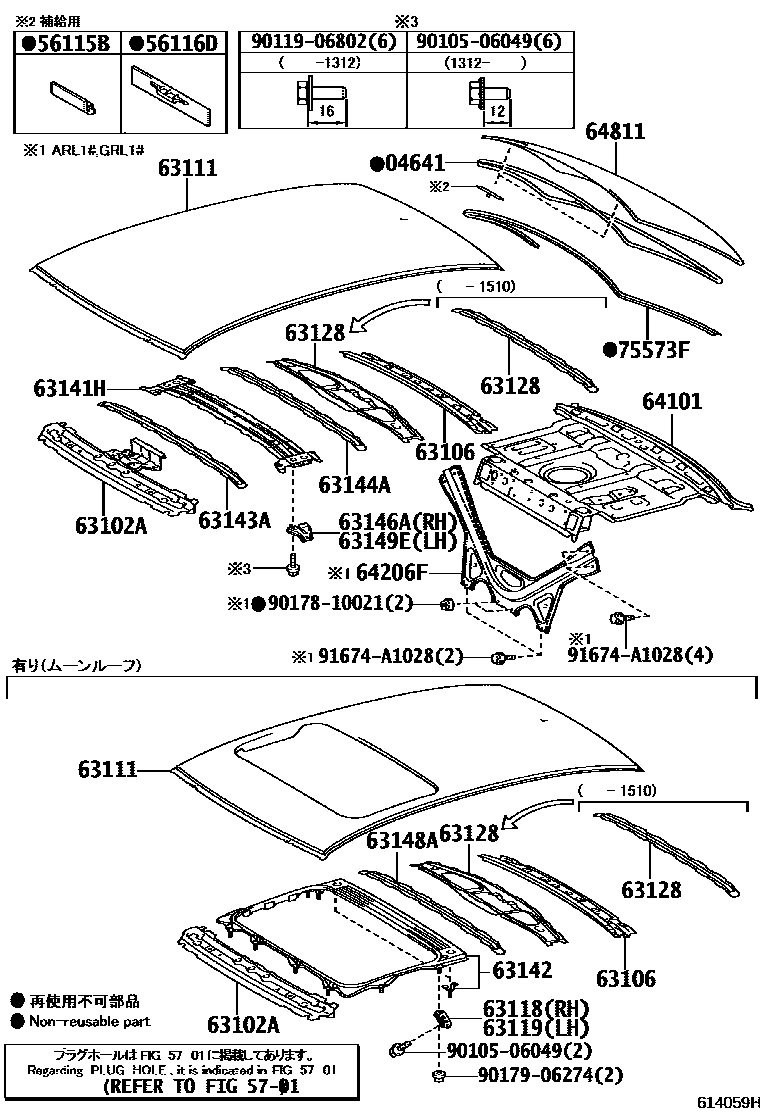

Toyota LEXUS GS SERIES — ROOF PANEL & BACK WINDOW GLASS

0001 1������� 0002 1������

04641DAM KIT, BACK WINDOW GLASS

main56117-50140iGRL10..8FC;AWL10,GRL11,15,GWL10201112-202007

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56115-30120iGRL10201112-202007

56116DSTOPPER, BACK WINDOW GLASS, NO.2

main56116-22050iGRL10201112-202007

5701

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-30903iAWL10,GRL1#,GWL10201112-201510

sub63102-30907

main63102-30907iARL10,AWL10,GRL1#,GWL10201510-202007

63106REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.4

main63106-30100iGRL10201112-202007

63111PANEL, ROOF

main63111-30820iGRL10201112-201409

sub63111-30823

sub75555-30121

sub75556-30111

main63111-30821iAWL10,GRL1#,GWL10201409-201506

sub63111-30822

sub75555-30121

sub75556-30111

main63111-30822iAWL10,GRL1#,GWL10201506-202007

63118SUPPORT, ROOF PANEL, RH

main63118-30140

63119SUPPORT, ROOF PANEL, LH

main63118-30140

63128REINFORCEMENT, ROOF PANEL, NO.6

main63128-30090iARL10,AWL10,GRL1#,GWL10201510-202007

main63128-30100iGRL10201112-201510

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63103-30350iGRL10201112-202007

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-30904

63143AREINFORCEMENT, ROOF PANEL

main63143-30300iGRL10201112-202007

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-30220iGRL10..8FC;AWL10,GRL11,15,GWL10201112-202007

63146ABRACKET, ROOF PANEL REINFORCEMENT, NO.1

main63146-30150iGRL1#,GWL10201112-201312

sub63146-30152

main63146-30152iAWL10,GRL1#,GWL10201312-202007

63148AREINFORCEMENT, ROOF PANEL, NO.7

63149EBRACKET, ROOF PANEL REINFORCEMENT, NO.2

main63146-30150iGRL1#,GWL10201112-201312

sub63146-30152

main63146-30152iAWL10,GRL1#,GWL10201312-202007

64101PANEL SUB-ASSY, UPPER BACK

main64101-30A60iGRL1#,GWL10201112-201304

sub64101-30A61

main64101-30A61iGRL10201305-201504

sub64101-30A62

main64101-30A62iAWL10,GRL1#,GWL10201505-202007

64206FPANEL SUB-ASSY, ROOM PARTITION

main64206-30140iGRL10201112-202007

64811GLASS, BACK WINDOW

main64801-30928iGRL10201112-201503

main64801-30938iAWL10,GRL1#,GWL10201503-202007

75573FMOULDING, BACK WINDOW, OUTSIDE

main75573-30400iGRL10201112-202007

9010506049

main90105-06049

9011906802

main90119-06802

9017810021

main90178-10021

9017906274

main90179-06274

91674A1028

main91674-A1028

26 parts on this diagram · 2 diagrams in section
